6AV2128-3MB06-0AX1
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

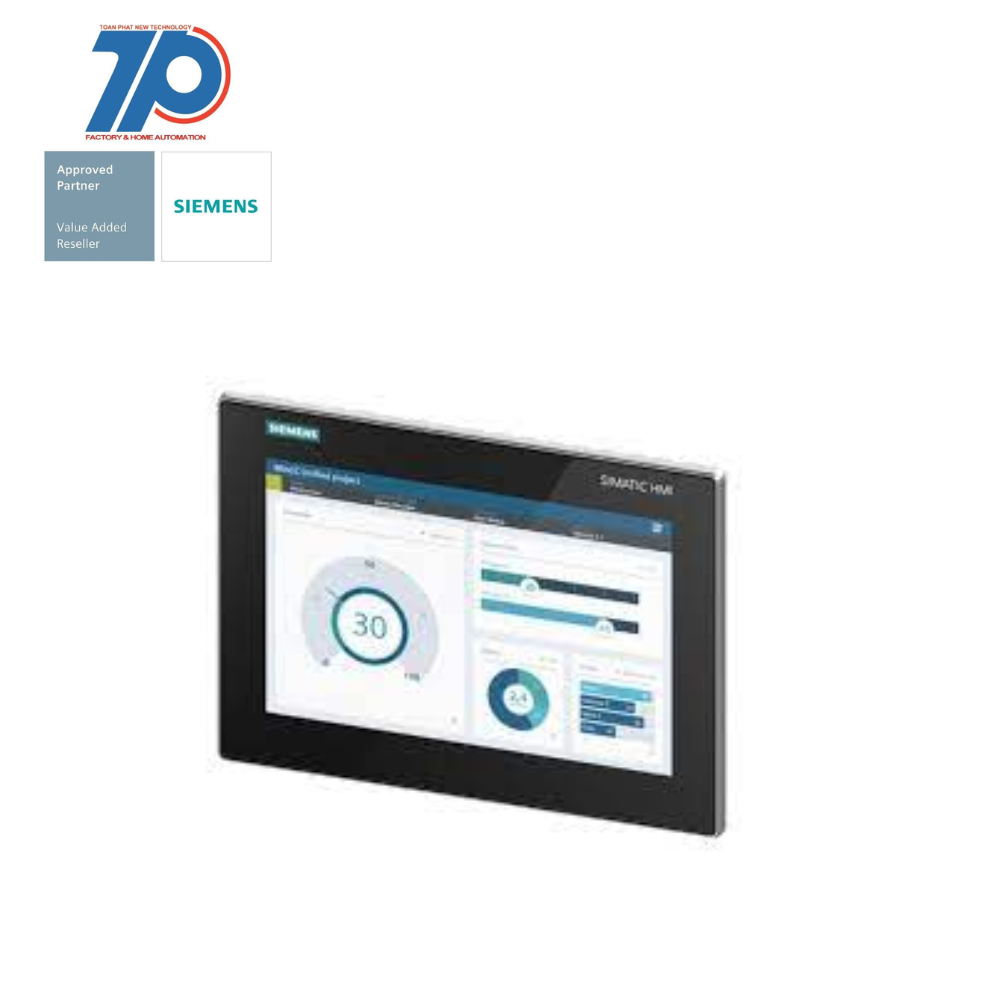

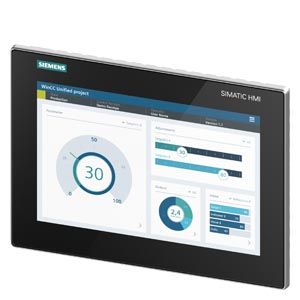

Material ID: 6AV2128-3MB06-0AX1
- SIMATIC HMI MTP1200 features:
- Unified Comfort Panel with touch operation
- 12.1"" widescreen TFT display with 16 million colors
- PROFINET interface
- Configurable with WinCC Unified Comfort V16
- Contains open-source software (provided free on DVD)
- SIMATIC HMI Unified Comfort Panels enable innovative operating concepts with WinCC Unified software
- Devices offer same number of interfaces and maximum operating comfort with modern multi-touch technology, available in sizes 7 to 22 inches
- New hardware provides improved performance for visualization, with system limits doubled or tripled in some cases
- Functionality can be extended with integrated Edge functionality
- Siemens ensures IT security with proprietary operating system, allowing users to deactivate unnecessary functions or interfaces
- Each Unified Comfort Panel available in two design variants:
- Standard design: Siemens and SIMATIC HMI branding with silver aluminum frame
- Neutral design: Without branding with black
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for SUCONET | false |
| Number of online languages | 32 |
| Supporting protocol for ASI | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for other bus systems | true |
| Radio standard UMTS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for PROFIsafe | false |
| Process value representation (output) possible | true |
| Rail mounting possible | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for LON | false |
| Number of HW-interfaces USB | 4 |
| Radio standard WLAN 802.11 | false |
| With alpha numeric keyboard | true |
| Operating temperature | 50 °C |
| Height of the front | 237 mm |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Operating temperature | 0 °C |
| Voltage type (supply voltage) | DC |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | false |
| IO link master | false |
| Supporting protocol for DeviceNet Safety | false |
| Process default value (input) possible | true |
| Supporting protocol for INTERBUS | false |
| Number of pixels, horizontal | 1280 |
| Supporting protocol for SafetyBUS p | false |
| With message system (incl. buffer and confirmation) | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Supporting protocol for KNX | false |
| Width of the front | 326 mm |
| Number of HW-interfaces industrial Ethernet | 2 |
| With printer output | true |
| Supply voltage DC | 28.8 V |
| Number of pixels, vertical | 800 |
| Radio standard GPRS | false |
| Number of colours of the display | 16777216 |
| With numeric keyboard | true |
| Type of display | TFT |
| Radio standard GSM | false |
| Built-in depth | 64 mm |
| Colour display | true |
| Number of HW-interfaces RS-485 | 1 |
| Additional software components, loadable | true |
| With recipes | true |
| Supporting protocol for PROFINET CBA | false |
| With message indication | true |
| Suitable for safety functions | false |
| Supporting protocol for EtherNet/IP | true |
| Screen diagonal | 12.1 inch |
