Material ID: 6AV2128-3UB06-0AX1

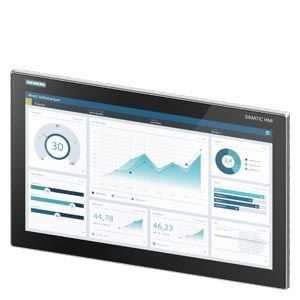

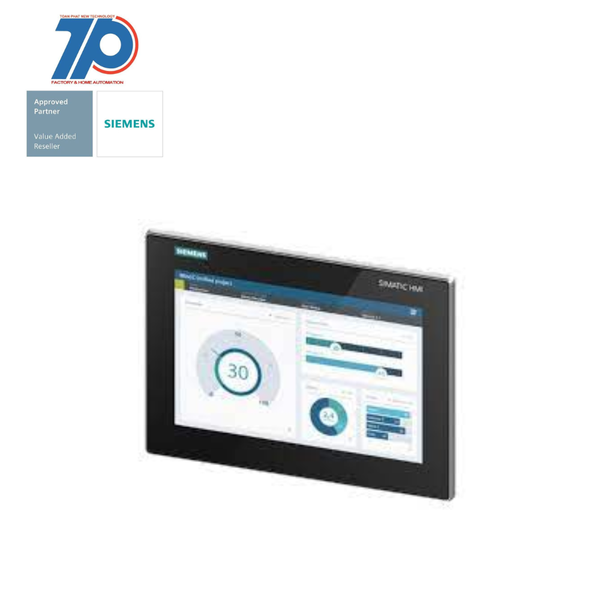

- SIMATIC HMI MTP1900 Unified Comfort Panel
- Touch operation
- 18.5"" widescreen TFT display
- 16 million colors
- PROFINET interface
- Configurable as of WinCC Unified Comfort V16
- Contains open-source software provided free of charge on enclosed DVD
- SIMATIC HMI Unified Comfort Panels enable innovative operating concepts
- Based on SIMATIC WinCC Unified visualization software
- Offer the same number of interfaces and maximum operating comfort
- Modern multi-touch technology available in sizes from 7 to 22 inches
- New hardware offers significantly more performance for visualization implementation
- System limits doubled at minimum and tripled in some cases
- Enables larger applications on a panel system
- Functionality can be extended by integrated Edge functionality
- IT security guaranteed by Siemens through proprietary operating system
- User can deactivate functions or interfaces not required
- Available in two design variants
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of display | TFT |
| Number of pixels, horizontal | 1920 |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for DeviceNet | false |
| Colour display | true |
| Screen diagonal | 18.5 inch |
| With recipes | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces USB | 4 |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard GSM | false |
| Height of the front | 294 mm |
| Supporting protocol for CAN | false |
| Suitable for safety functions | false |
| Process value representation (output) possible | true |
| Operating temperature | 0 °C |
| Built-in depth | 73 mm |
| Additional software components, loadable | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for SERCOS | false |
| Radio standard WLAN 802.11 | false |
| With message indication | true |
| Supporting protocol for Modbus | true |
| With alpha numeric keyboard | true |
| Radio standard GPRS | false |
| Operating temperature | 45 °C |
| Supporting protocol for ASI | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for LON | false |
| Width of the front | 464 mm |
| Supporting protocol for other bus systems | true |
| Number of online languages | 32 |
| Radio standard Bluetooth | false |
| Degree of protection (IP), front side | IP65 |
| Number of colours of the display | 16777216 |
| With message system (incl. buffer and confirmation) | true |
| With printer output | true |
| Radio standard UMTS | false |
| Supply voltage DC | 19.2 V |
| With numeric keyboard | true |
| Voltage type (supply voltage) | DC |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for PROFINET CBA | false |
| Rail mounting possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| IO link master | false |
| Supporting protocol for EtherNet/IP | true |
| Process default value (input) possible | true |
| Number of pixels, vertical | 1080 |
