Material ID: 6AV2143-6GB00-0AA0

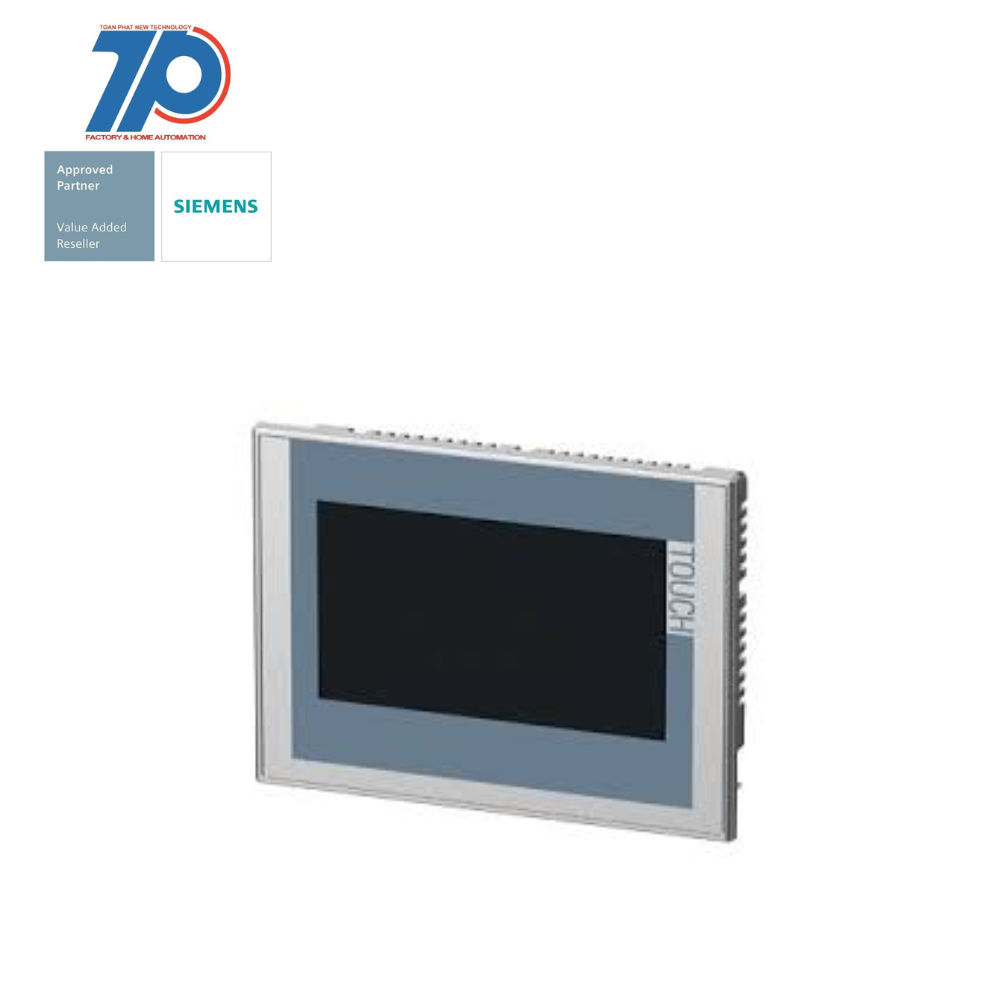

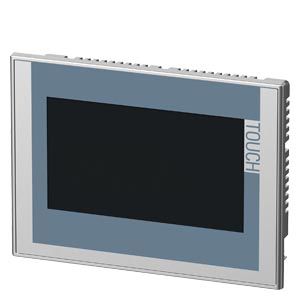

- SIMATIC HMI, TP700 Basic Keyless
- Basic Panel with neutral design
- Touch operation
- 7"" TFT display with 65536 colors
- PROFINET interface
- Configurable from WinCC Basic V13/ STEP 7 Basic V13
- Contains open-source software provided free of charge
- Basic Panels are ideal for cost-effective implementation of simple visualization tasks at machine level
- Perfect entry-level devices due to basic features, functionality, and attractive price
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| With message indication | true |
| Supporting protocol for PROFINET CBA | false |
| Number of HW-interfaces USB | 1 |
| Number of online languages | 10 |
| Number of password levels | 50 |
| Supporting protocol for KNX | false |
| Supporting protocol for EtherNet/IP | true |
| Colour display | true |
| Screen diagonal | 7 inch |
| Supporting protocol for LON | false |
| Operating temperature | 50 °C |
| Supporting protocol for ASI | false |
| With SW interfaces | false |
| Number of pixels, horizontal | 800 |
| Supply voltage DC | 19.2 V |
| Rail mounting possible | false |
| IO link master | false |
| Radio standard GSM | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for Data-Highway | false |
| Additional software components, loadable | false |
| Supporting protocol for DeviceNet | false |
| Useful project memory/user memory | 10000 kByte |
| Supporting protocol for SERCOS | false |
| With numeric keyboard | true |
| With message system (incl. buffer and confirmation) | true |
| Supply voltage DC | 28.8 V |
| With alpha numeric keyboard | true |
| Number of interfaces PROFINET | 1 |
| Radio standard Bluetooth | false |
| With recipes | true |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for CAN | false |
| Number of pixels, vertical | 480 |
| Radio standard UMTS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of colours of the display | 65536 |
| Supporting protocol for PROFIBUS | false |
| Wall mounting/direct mounting | false |
| Voltage type (supply voltage) | DC |
| Built-in depth | 39 mm |
| Supporting protocol for other bus systems | true |
| Supporting protocol for AS-Interface Safety at Work | false |
| Process default value (input) possible | true |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS-Safety | false |
| Height of the front | 158 mm |
| Process value representation (output) possible | true |
| Touch technology | Resistive touch |
| Supporting protocol for PROFIsafe | false |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard GPRS | false |
| Width of the front | 214 mm |
| Operating temperature | 0 °C |
| With printer output | false |
