Material ID: 6AV2144-8JC10-0AA0

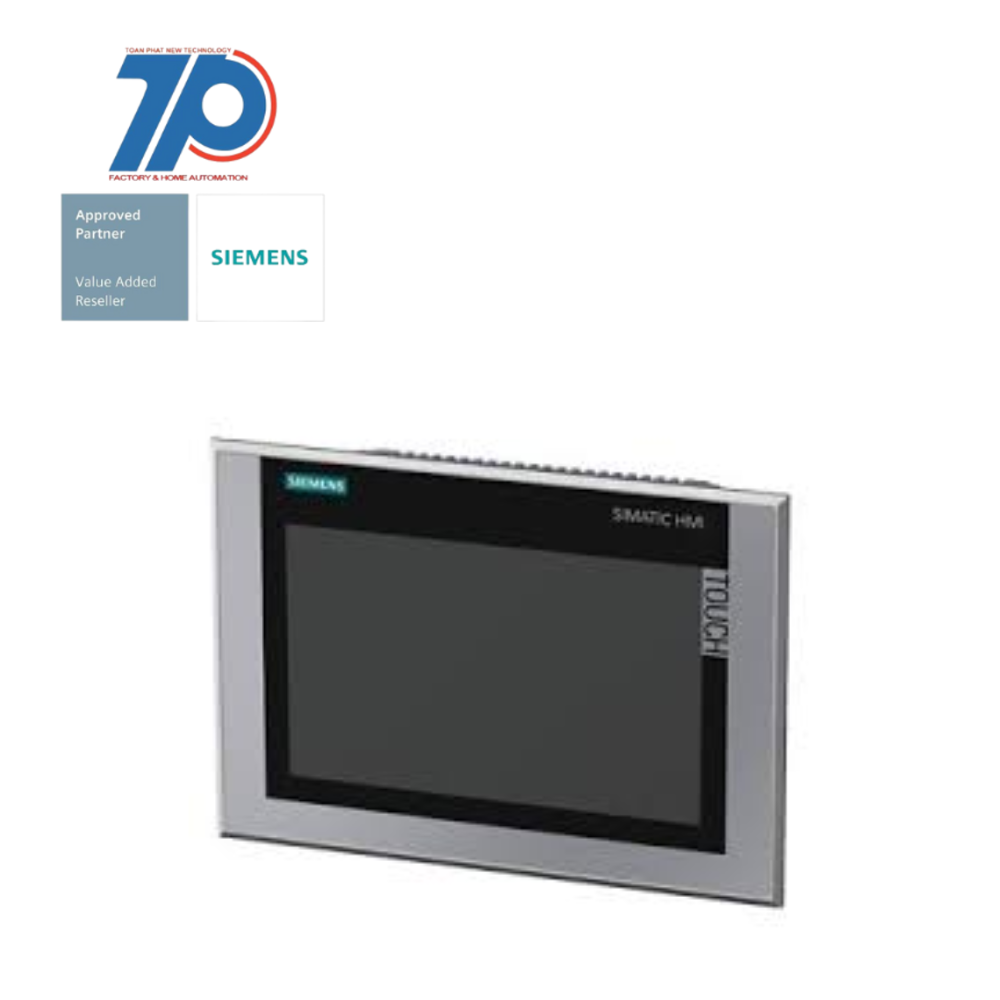

SIMATIC HMI TP900 Comfort INOX

Stainless steel front, Continuous decorative film, Degree of protection front IP66K

9" widescreen TFT display

PROFINET interface, MPI/PROFIBUS DP interface

12 MB configuration memory

Windows CE 6.0, (Microsoft Support included Security updates discontinued)

Configurable from WinCC Comfort V11

Product Description:

The SIMATIC HMI TP900 Comfort INOX is a high-performance visualization panel designed for machine-level tasks. It features a stainless steel front with a continuous decorative film and a degree of protection front IP66K. The panel has a 9" widescreen TFT display for clear and vibrant visuals. It is equipped with a PROFINET interface and an MPI/PROFIBUS DP interface for seamless communication. With 12 MB configuration memory, it offers ample storage for your data. The panel runs on Windows CE 6.0 and can be configured using WinCC Comfort V11. Please note that Microsoft Support for this version has discontinued security updates.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    With recipestrue
    Process value representation (output) possibletrue
    With numeric keyboardtrue
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for PROFIsafefalse
    With alpha numeric keyboardtrue
    Number of HW-interfaces other0
    Supporting protocol for SERCOSfalse
    Number of colours of the display16777216
    Number of HW-interfaces RS-4220
    Width of the front274 mm
    Number of pixels, vertical480
    Radio standard UMTSfalse
    With printer outputtrue
    Number of HW-interfaces serial TTY0
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for PROFINET CBAfalse
    Wall mounting/direct mountingfalse
    Radio standard WLAN 802.11false
    Radio standard GSMfalse
    Screen diagonal9 inch
    Rail mounting possiblefalse
    Number of system buttons0
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Supporting protocol for PROFINET IOtrue
    Additional software components, loadabletrue
    Supply voltage DC28.8 V
    With message indicationtrue
    Built-in depth65 mm
    Supporting protocol for EtherNet/IPtrue
    Supporting protocol for LONfalse
    Suitable for safety functionsfalse
    Number of HW-interfaces wireless0
    Number of buttons with LED0
    Operating temperature50 °C
    Supply voltage DC19.2 V
    Degree of protection (IP), front sideIP66K
    Number of HW-interfaces RS-2320
    Number of grey-scales/blue-scales of display0
    Number of function buttons, programmable0
    Supporting protocol for DeviceNet Safetyfalse
    Radio standard Bluetoothfalse
    Useful project memory/user memory12000 kByte
    Number of HW-interfaces RS-4851
    With message system (incl. buffer and confirmation)true
    IO link masterfalse
    Number of HW-interfaces industrial Ethernet1
    Radio standard GPRSfalse
    Supporting protocol for SUCONETfalse
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFIBUStrue
    Number of HW-interfaces parallel0
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for INTERBUSfalse
    Supporting protocol for other bus systemstrue
    Supporting protocol for CANfalse
    Number of HW-interfaces USB2
    Height of the front190 mm
    Type of displayTFT
    With SW interfacesfalse
    Colour displaytrue
    Supporting protocol for KNXfalse
    Number of online languages32
    Process default value (input) possibletrue
    Number of pixels, horizontal800
    Number of password levels50
    Operating temperature0 °C
    Supporting protocol for Modbustrue
    Supporting protocol for ASIfalse
    Supporting protocol for TCP/IPtrue
    Number of interfaces PROFINET1
