Material ID: 6AV3688-3AF37-0AX0

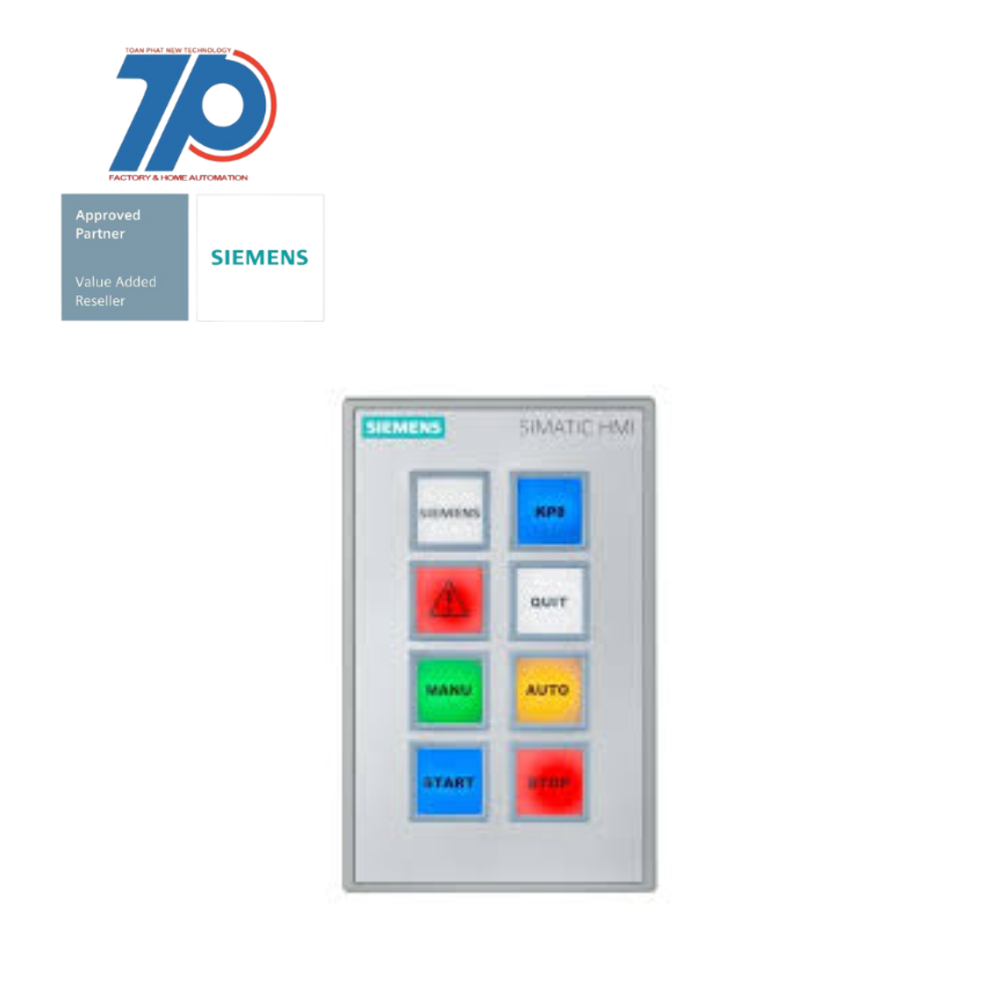

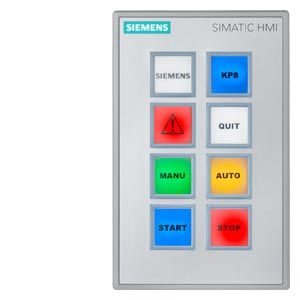

SIMATIC HMI KP8F PN

The SIMATIC HMI KP8F PN is a key panel that offers a range of technical features:

With the SIMATIC HMI KP8F PN, you can quickly implement operator panels and save time and money on setup. These key panels are prefabricated and ready for installation, making the setup process efficient and cost-effective.

    • 8 short-stroke switches with multi-colored LEDs
    • PROFINET interfaces with PROFIsafe
    • 8 DI/DO and 2 safety DI pins
    • 24 V DC can be looped through parameterizable as of STEP 7 V5.5
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for DeviceNet Safetyfalse
Height of the front155 mm
Supporting protocol for Foundation Fieldbusfalse
Number of digital inputs8
Supporting protocol for ASIfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces other0
Built-in depth49 mm
Number of HW-interfaces wireless0
Number of HW-interfaces RS-4850
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFINET IOtrue
With parameterizable buttonstrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of LED colour modes5
Width of the front98 mm
Supporting protocol for EtherCATfalse
Radio standard GSMfalse
Supporting protocol for CANfalse
Number of HW-interfaces serial TTY0
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Front built-in possibletrue
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces parallel0
Number of built-in positions for control circuit devices0
Number of indicator lamps8
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
Operating temperature55 °C
Suitable for safety functionstrue
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SafetyBUS pfalse
Radio standard Bluetoothfalse
Radio standard WLAN 802.11false
Number of interfaces PROFINET2
Operating temperature0 °C
With test for buttons and indicator lampstrue
IO link masterfalse
Number of HW-interfaces industrial Ethernet2
Degree of protection (IP), front sideIP65
Radio standard UMTSfalse
Rail mounting possiblefalse
With optical interfacefalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Wall mounting/direct mountingfalse
Number of buttons8
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIsafetrue
Supply voltage DC28.8 V
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Radio standard GPRSfalse
Number of digital outputs8
Supporting protocol for Modbusfalse
