Material ID: 6AV3688-3AY36-0AX0

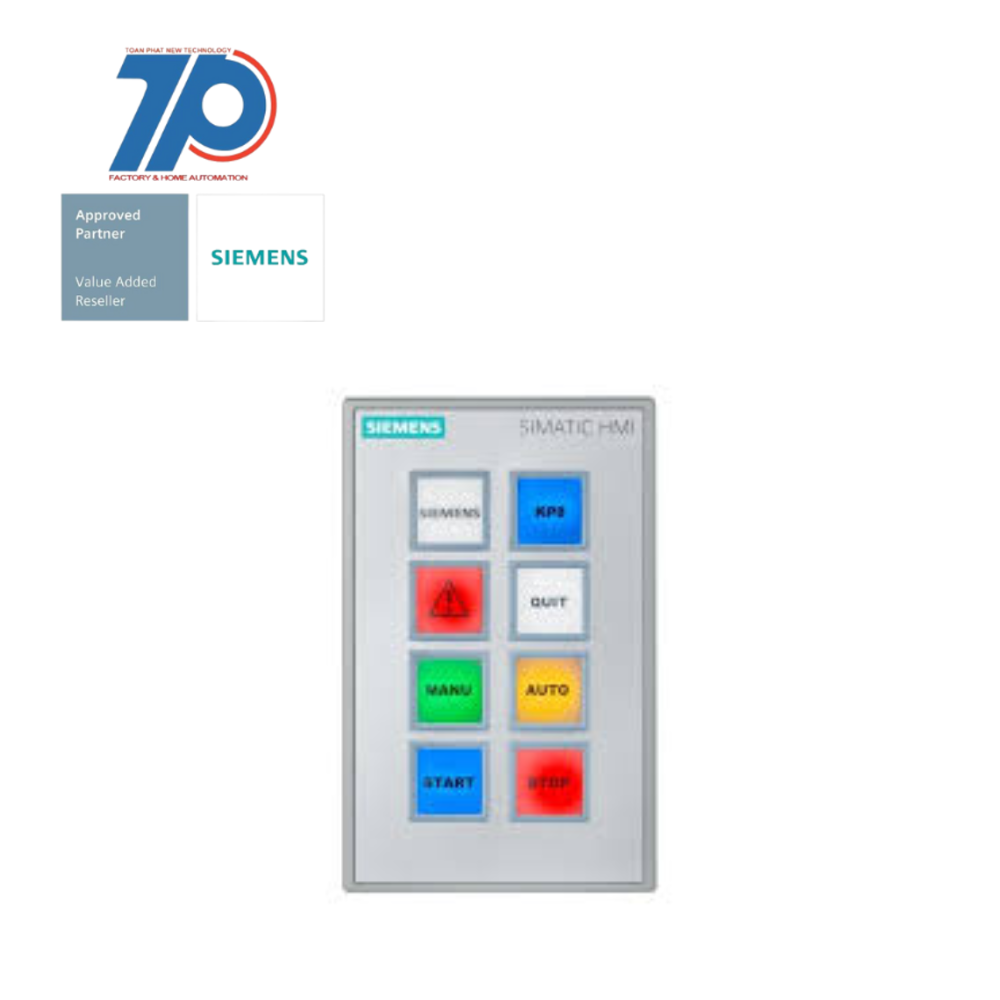

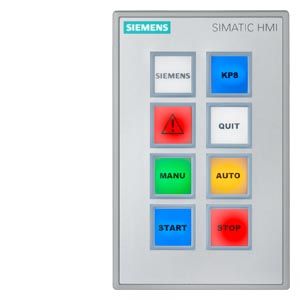

SIMATIC HMI KP8 PN Key Panel
The SIMATIC HMI KP8 PN Key Panel is a versatile operator panel that offers a range of technical features:
With the SIMATIC HMI KP8/KP8F and KP32F Key Panels, implementing operator panels becomes quick and cost-effective. These prefabricated panels are ready for installation, saving both time and money.
- 8 short-stroke switches with multi-colored LEDs
- PROFINET interfaces for seamless connectivity
- 8 configurable DI/DO pins for flexible input/output options
- 24 V DC loop-through capability
- Parameterizable as of STEP 7 V5.5
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Operating temperature | 55 °C |
| Supply voltage DC | 20.4 V |
| Supporting protocol for DeviceNet Safety | false |
| Front built-in possible | true |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for KNX | false |
| Operating temperature | 0 °C |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFIBUS | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SERCOS | false |
| Number of indicator lamps | 8 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of digital inputs | 8 |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supply voltage DC | 28.8 V |
| Supporting protocol for other bus systems | false |
| Height of the front | 155 mm |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for DeviceNet | false |
| Radio standard GPRS | false |
| Supporting protocol for Data-Highway | false |
| With test for buttons and indicator lamps | true |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS | false |
| Number of buttons | 8 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for EtherCAT | false |
| Number of digital outputs | 8 |
| Supporting protocol for Foundation Fieldbus | false |
| With parameterizable buttons | true |
| Number of built-in positions for control circuit devices | 0 |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of LED colour modes | 5 |
| Width of the front | 98 mm |
| Wall mounting/direct mounting | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for LON | false |
| Rail mounting possible | false |
| Number of HW-interfaces serial TTY | 0 |
| Radio standard GSM | false |
| Number of HW-interfaces RS-232 | 0 |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Radio standard UMTS | false |
| Built-in depth | 49 mm |
| Supporting protocol for Modbus | false |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces RS-422 | 0 |
| With optical interface | false |
| Radio standard WLAN 802.11 | false |
