Material ID: 6AV3688-3EH47-0AX0

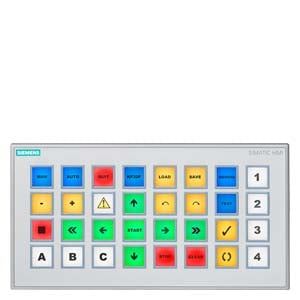

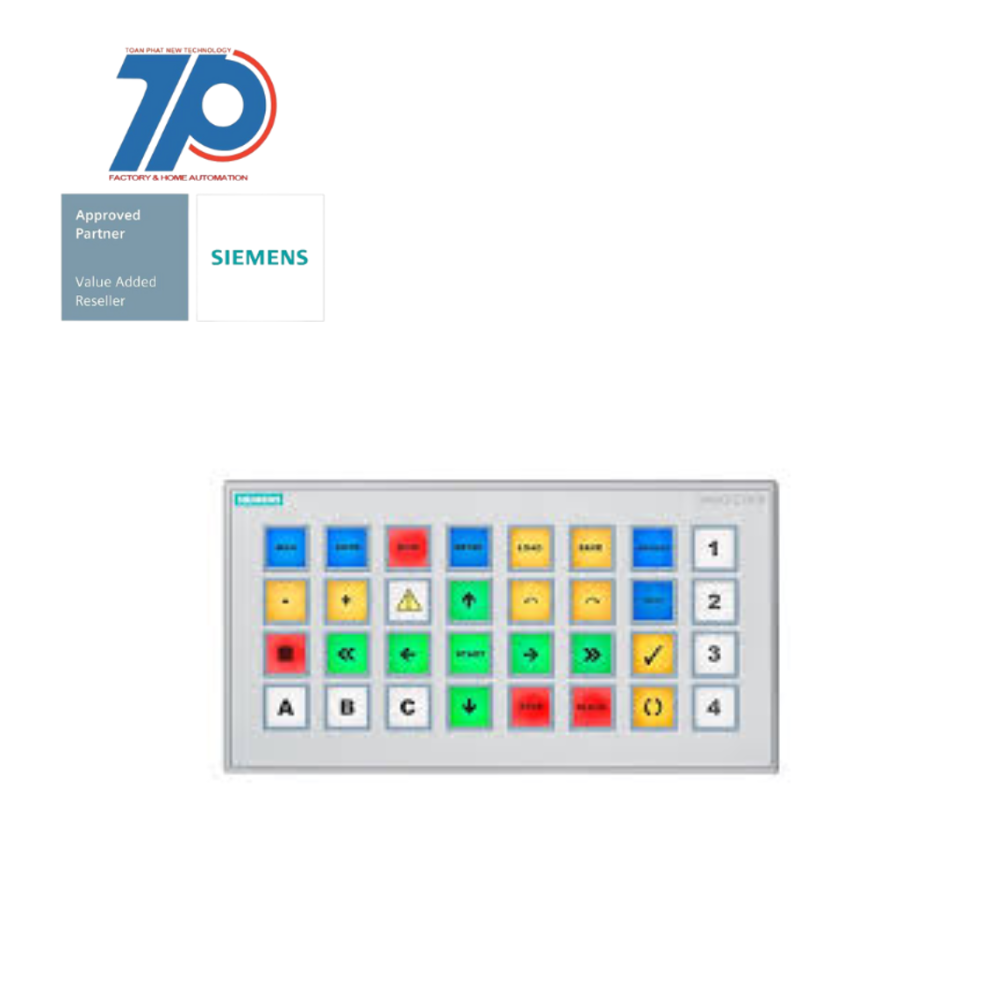

SIMATIC HMI KP32F PN
Key Panel with 32 short-stroke keys with multi-colored LEDs
PROFINET interfaces with PROFIsafe
16 DI+16 DI/DO
4 safety DI pins
24 V DC can be looped through parameterizable as of STEP 7 V5.5
SIMATIC HMI KP8/KP8F and KP32F Key Panels can be used to implement operator panels quickly, and save a lot of time and money setting them up as they are prefabricated and ready for installation.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for LON | false |
| Supporting protocol for DeviceNet Safety | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for Data-Highway | false |
| Number of digital outputs | 16 |
| With parameterizable buttons | true |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Number of HW-interfaces other | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces parallel | 0 |
| Number of built-in positions for control circuit devices | 0 |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SERCOS | false |
| Radio standard UMTS | false |
| Number of LED colour modes | 5 |
| Number of HW-interfaces RS-232 | 0 |
| Supply voltage DC | 20.4 V |
| Operating temperature | 55 °C |
| Supporting protocol for KNX | false |
| Number of digital inputs | 32 |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFIBUS | false |
| Suitable for safety functions | true |
| Number of indicator lamps | 8 |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Supply voltage DC | 28.8 V |
| Height of the front | 155 mm |
| Supporting protocol for EtherNet/IP | false |
| With optical interface | false |
| Built-in depth | 37 mm |
| Number of HW-interfaces industrial Ethernet | 2 |
| Width of the front | 295 mm |
| Radio standard Bluetooth | false |
| Number of buttons | 32 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for Modbus | false |
| Radio standard WLAN 802.11 | false |
| Number of HW-interfaces RS-485 | 0 |
| With test for buttons and indicator lamps | true |
| Rail mounting possible | false |
| Number of HW-interfaces serial TTY | 0 |
| IO link master | false |
| Supporting protocol for Foundation Fieldbus | false |
| Operating temperature | 0 °C |
| Number of interfaces PROFINET | 2 |
| Front built-in possible | true |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for PROFIsafe | true |
| Wall mounting/direct mounting | false |
| Radio standard GSM | false |
