Material ID: 6AV6640-0AA00-0AX1
Spare part

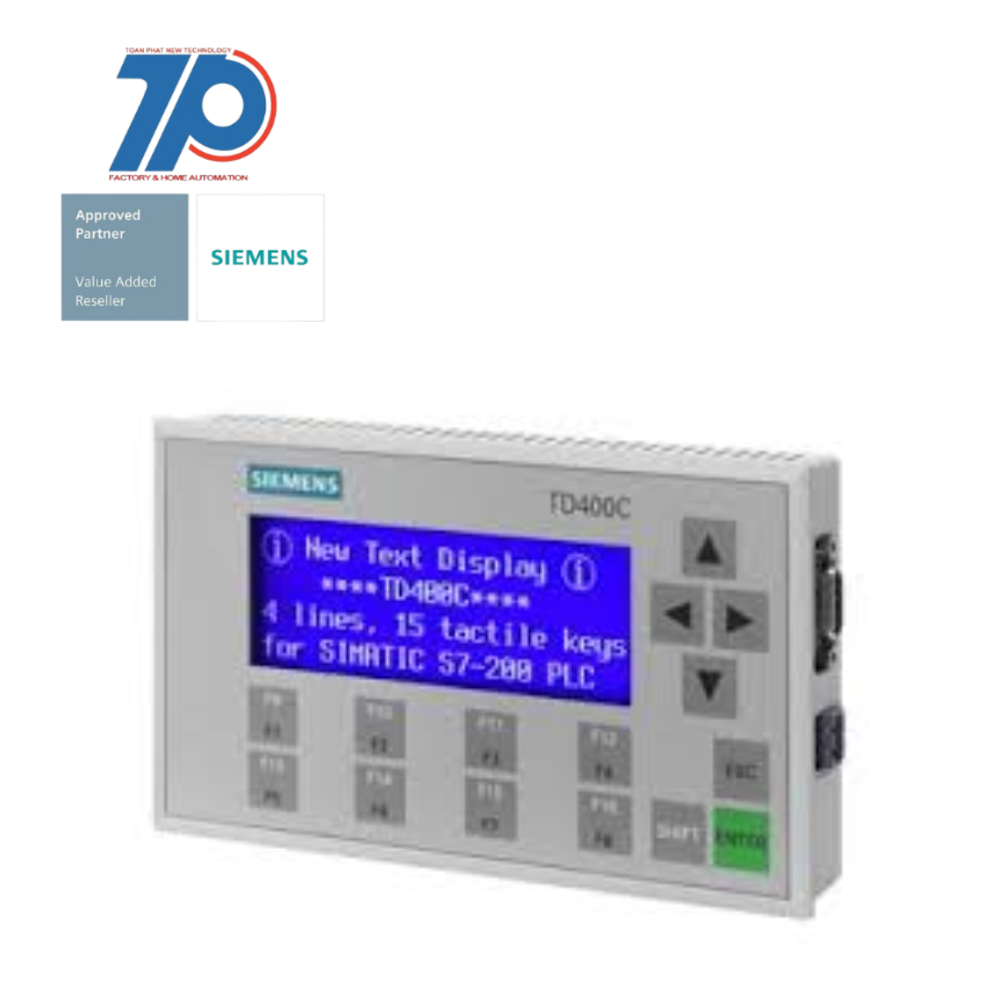

TD400C text display, 4 lines
For SIMATIC S7-200
With cable (2.5 m) and installation accessories
Inpidually configurable user interface
Configuration with STEP 7 Micro/WIN V4 SP6
Now only available as spare part.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With message indication | true |
| Width of the front | 174 mm |
| Supporting protocol for INTERBUS | false |
| Number of online languages | 2 |
| With numeric keyboard | false |
| Supporting protocol for Modbus | false |
| Number of HW-interfaces wireless | 0 |
| Radio standard GPRS | false |
| Supporting protocol for CAN | false |
| Number of password levels | 1 |
| Process default value (input) possible | false |
| Built-in depth | 31 mm |
| With alpha numeric keyboard | false |
| Number of buttons with LED | 0 |
| Number of display lines | 4 |
| Supporting protocol for EtherNet/IP | false |
| Supply voltage DC | 28.8 V |
| IO link master | false |
| Height of the front | 102 mm |
| Number of HW-interfaces other | 0 |
| With recipes | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard Bluetooth | false |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces RS-232 | 0 |
| With message system (incl. buffer and confirmation) | false |
| Supporting protocol for LON | false |
| Graphic objects presentable | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET CBA | false |
| Number of HW-interfaces USB | 0 |
| Operating temperature | 50 °C |
| Number of function buttons, programmable | 15 |
| Supply voltage DC | 20.4 V |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Number of HW-interfaces RS-422 | 0 |
| Number of interfaces PROFINET | 0 |
| Number of display characters per line | 24 |
| With printer output | false |
| Supporting protocol for PROFIBUS | false |
| Process value representation (output) possible | false |
| Supporting protocol for SUCONET | false |
| Max. character height, display | 5 mm |
| Supporting protocol for PROFINET IO | false |
| Radio standard UMTS | false |
| Number of HW-interfaces parallel | 0 |
| Useful project memory/user memory | 0 kByte |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet Safety | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Operating temperature | 0 °C |
