Material ID: 6AV6641-0CA01-0AX1

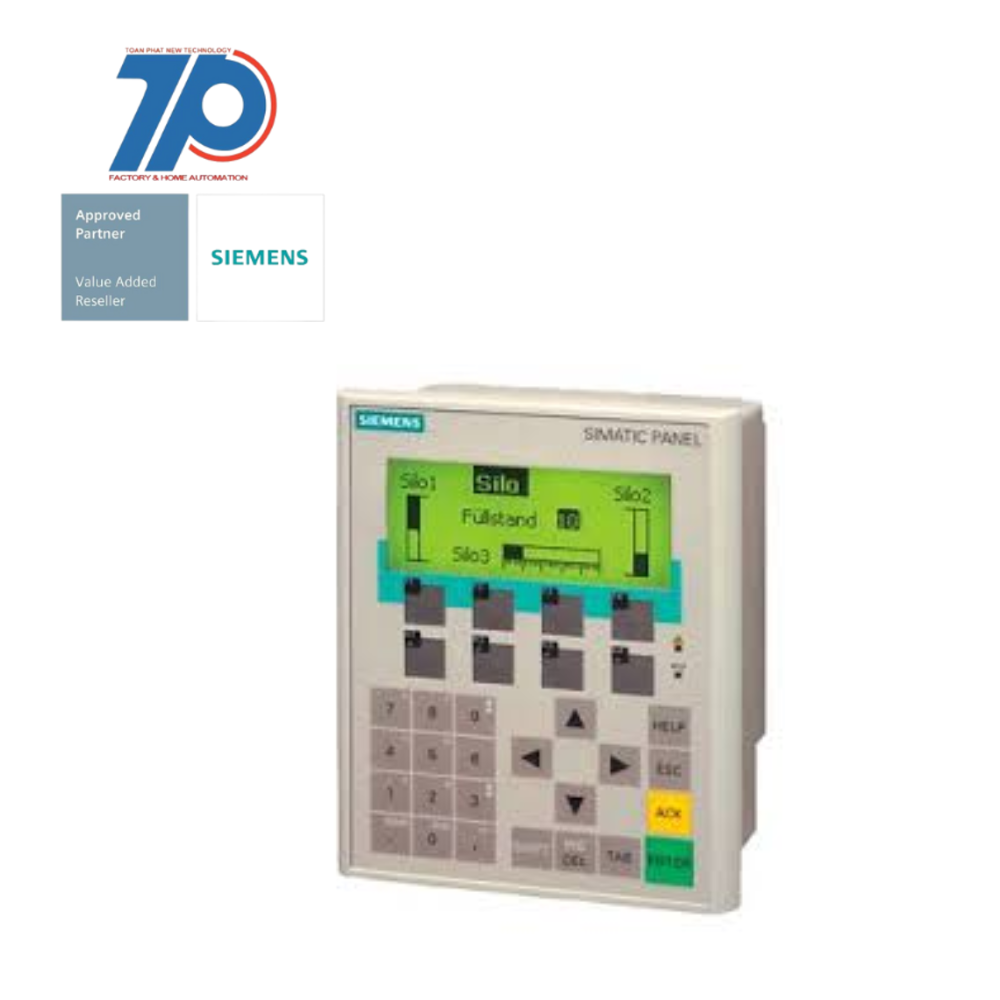

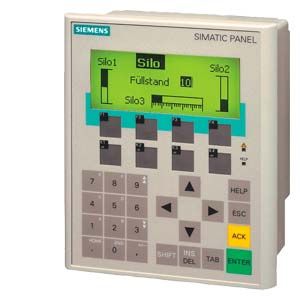

Spare Part: SIMATIC Operator Panel OP 77B
The SIMATIC Operator Panel OP 77B is a high-quality spare part designed for industrial applications. It features a backlit LC display with a size of 4.5 inches, providing clear and vibrant graphics. The panel is equipped with an MPI/PROFIBUS DP interface, allowing for seamless communication with other devices in the network, with a capacity of up to 12 MB.
In addition, the SIMATIC Operator Panel OP 77B comes with a printer/USB interface, enabling easy data transfer and printing. It also includes a slot for MMC (MultiMediaCard), providing expandable storage options. The panel is configurable with WinCC flexible 2004 Compact, allowing for flexible customization and control.
Now, the SIMATIC Operator Panel OP 77B is only available as a spare part. Don't miss the opportunity to get this reliable and efficient spare part for your industrial needs.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Number of buttons with LED | 4 |
| Number of pixels, horizontal | 160 |
| Number of function buttons, programmable | 8 |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces wireless | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for CAN | false |
| Number of password levels | 50 |
| Number of HW-interfaces USB | 1 |
| Additional software components, loadable | true |
| Process default value (input) possible | true |
| Operating temperature | 50 °C |
| Height of the front | 186 mm |
| Suitable for safety functions | false |
| Radio standard GPRS | false |
| Type of display | STN |
| Supporting protocol for SUCONET | false |
| Number of pixels, vertical | 64 |
| Number of interfaces PROFINET | 0 |
| Touch technology | None |
| Number of HW-interfaces RS-485 | 1 |
| With message system (incl. buffer and confirmation) | true |
| Screen diagonal | 4.5 inch |
| Supporting protocol for PROFIsafe | false |
| IO link master | false |
| Number of HW-interfaces RS-232 | 1 |
| Built-in depth | 38.5 mm |
| Supporting protocol for SERCOS | false |
| Operating temperature | 0 °C |
| With SW interfaces | false |
| With numeric keyboard | true |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for DeviceNet Safety | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Radio standard UMTS | false |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Radio standard Bluetooth | false |
| With recipes | true |
| Supporting protocol for PROFINET CBA | false |
| Useful project memory/user memory | 1000 kByte |
| Radio standard WLAN 802.11 | false |
| Number of colours of the display | 2 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for KNX | false |
| Supporting protocol for EtherNet/IP | false |
| Supply voltage DC | 20.4 V |
| Process value representation (output) possible | true |
| Width of the front | 150 mm |
| With alpha numeric keyboard | true |
| Supply voltage DC | 28.8 V |
| Number of system buttons | 23 |
| Supporting protocol for PROFIBUS | true |
| Number of HW-interfaces RS-422 | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces serial TTY | 0 |
| With printer output | true |
| Colour display | false |
| Rail mounting possible | false |
| Number of online languages | 5 |
| Number of HW-interfaces other | 0 |
| Radio standard GSM | false |
| Supporting protocol for SafetyBUS p | false |
| With message indication | true |
| Wall mounting/direct mounting | false |
