Material ID: 6AV6642-0BA01-1AX1Product Description

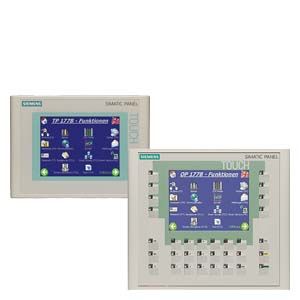

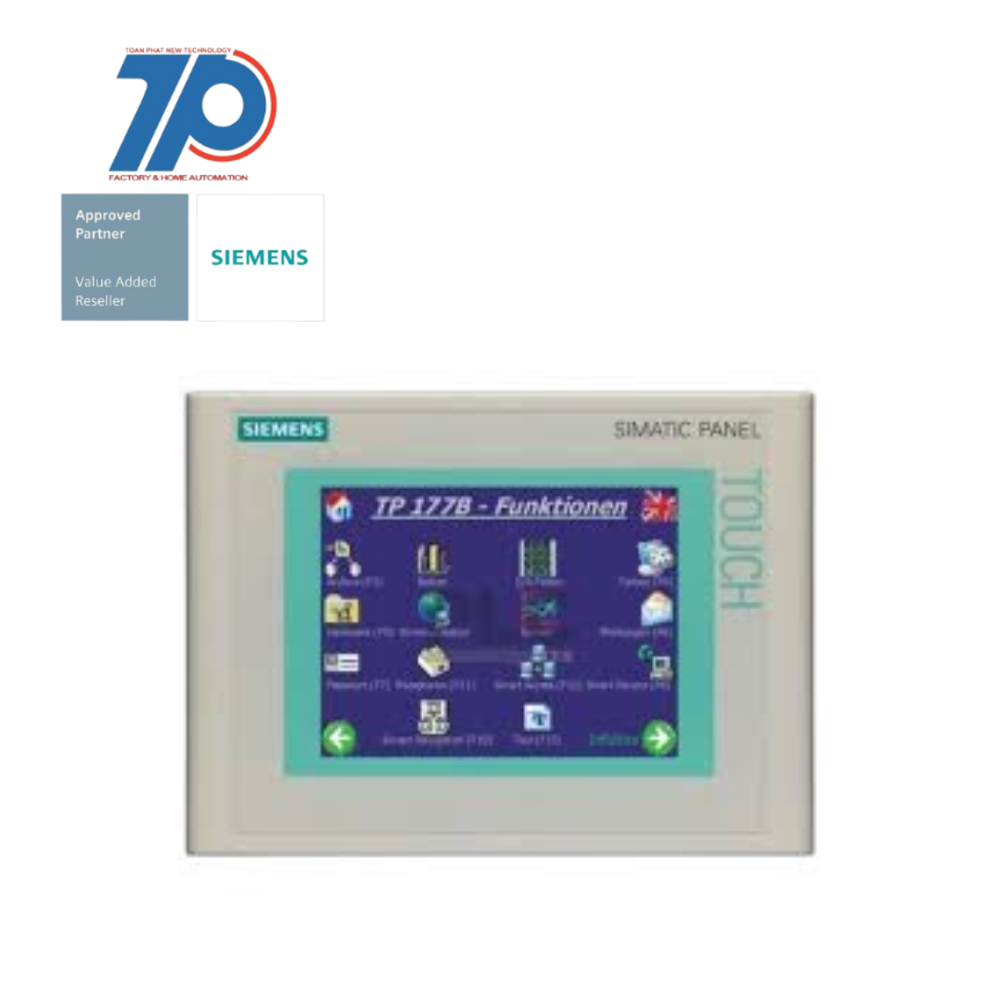

Spare Part: SIMATIC TP 177B 6" PN/DP STN 256 color display

This spare part features a 6" PN/DP STN 256 color display, which provides vibrant and clear visuals. It supports the MPI/PROFIBUS DP protocol, allowing for seamless communication with other devices. The RS485/RS422/USB interface enables easy connectivity, while the Ethernet 10/100 interface provides fast and reliable network access.

Additionally, this spare part includes a printer interface and a slot for MMC, allowing for convenient printing and storage options. It is configurable with WinCC flexible 2005, providing flexibility and ease of use.

Please note that this product is now only available as a spare part.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Wall mounting/direct mountingfalse
    Radio standard GPRSfalse
    Number of HW-interfaces RS-4221
    Number of HW-interfaces parallel0
    Number of HW-interfaces USB1
    Number of HW-interfaces other0
    Rail mounting possiblefalse
    Supporting protocol for PROFIsafefalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for SafetyBUS pfalse
    IO link masterfalse
    Number of HW-interfaces industrial Ethernet1
    Process value representation (output) possibletrue
    Supporting protocol for KNXfalse
    Operating temperature0 °C
    Supporting protocol for INTERBUSfalse
    Process default value (input) possibletrue
    Suitable for safety functionsfalse
    Type of displaySTN
    Number of pixels, vertical240
    Number of interfaces PROFINET1
    Degree of protection (IP), front sideIP65
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Supporting protocol for CANfalse
    Supporting protocol for PROFINET CBAfalse
    Colour displaytrue
    Number of HW-interfaces wireless0
    Number of colours of the display256
    With SW interfacesfalse
    Screen diagonal5.7 inch
    Number of grey-scales/blue-scales of display0
    Supporting protocol for SUCONETfalse
    Supporting protocol for EtherNet/IPtrue
    Supporting protocol for SERCOSfalse
    Supporting protocol for LONfalse
    Height of the front156 mm
    Supporting protocol for Foundation Fieldbusfalse
    Supply voltage DC20.4 V
    Built-in depth44 mm
    Supporting protocol for DeviceNetfalse
    With recipestrue
    With alpha numeric keyboardtrue
    Supply voltage DC28.8 V
    Number of pixels, horizontal320
    Useful project memory/user memory2048 kByte
    With numeric keyboardtrue
    Supporting protocol for other bus systemstrue
    Supporting protocol for PROFIBUStrue
    Number of online languages5
    Supporting protocol for Modbustrue
    Supporting protocol for ASIfalse
    Supporting protocol for TCP/IPtrue
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces serial TTY0
    With printer outputtrue
    Radio standard UMTSfalse
    Width of the front212 mm
    Additional software components, loadabletrue
    Supporting protocol for PROFINET IOtrue
    Radio standard GSMfalse
    Number of HW-interfaces RS-4851
    With message system (incl. buffer and confirmation)true
    Radio standard Bluetoothfalse
    Number of HW-interfaces RS-2320
    Operating temperature50 °C
    Supporting protocol for Data-Highwayfalse
    With message indicationtrue
    Radio standard WLAN 802.11false
    Number of password levels50
