Material ID: 6AV6642-0BC01-1AX1Product Description

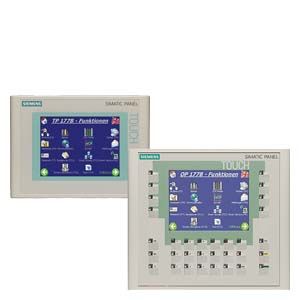

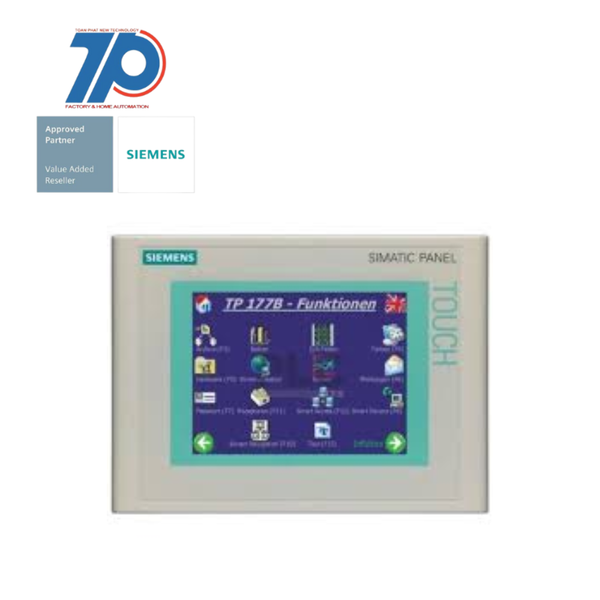

SIMATIC TP 177B 6" DP

Technical Features:

Commercial Benefits:

For more information, please refer to the SIMATIC news entry ID: 109486162.

    • Display: 6" DP blue mode STN display
    • Protocol: MPI/PROFIBUS DP
    • Interfaces: RS485/RS422/USB interface, printer interface
    • Slot: MMC slot for configuration
    • Configurable with WinCC flexible 2005
    • Now only available as a spare part
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces other0
Radio standard GPRSfalse
Type of displaySTN
Process default value (input) possibletrue
Supporting protocol for SERCOSfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFINET IOfalse
Supporting protocol for AS-Interface Safety at Workfalse
IO link masterfalse
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
With message indicationtrue
With SW interfacesfalse
Screen diagonal5.7 inch
Number of HW-interfaces USB1
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPtrue
Number of interfaces PROFINET0
Supporting protocol for Foundation Fieldbusfalse
Degree of protection (IP), front sideIP65
Operating temperature0 °C
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Suitable for safety functionsfalse
Wall mounting/direct mountingfalse
Supporting protocol for INTERBUSfalse
Number of pixels, horizontal320
Number of HW-interfaces RS-4221
Number of HW-interfaces parallel0
Number of pixels, vertical240
With alpha numeric keyboardtrue
Height of the front156 mm
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Width of the front212 mm
With printer outputtrue
Number of HW-interfaces serial TTY0
Number of grey-scales/blue-scales of display4
Useful project memory/user memory2048 kByte
Additional software components, loadabletrue
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
With numeric keyboardtrue
Radio standard WLAN 802.11false
Supporting protocol for CANfalse
Built-in depth44 mm
Supporting protocol for TCP/IPtrue
Supply voltage DC20.4 V
Number of colours of the display4
Process value representation (output) possibletrue
Radio standard GSMfalse
Supply voltage DC28.8 V
Supporting protocol for PROFINET CBAfalse
Number of online languages5
With recipestrue
Supporting protocol for other bus systemstrue
Rail mounting possiblefalse
Colour displayfalse
Operating temperature50 °C
Radio standard Bluetoothfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Supporting protocol for PROFIsafefalse
Number of password levels50
