Material ID: 6AV6642-0BD01-3AX0

Technical Features:

Commercial Benefits:

    • The new part, as of 01.01.2015, is blocked for delivery.
    • Spare part can continue to be purchased as required, but price may deviate from new part.
    • Further information under SIMATIC current entry ID: 109486162.
    • For questions, the familiar contact persons are available to you.

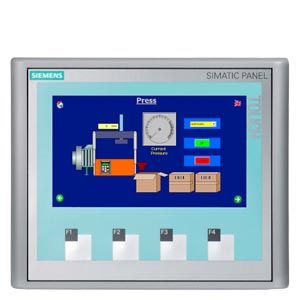

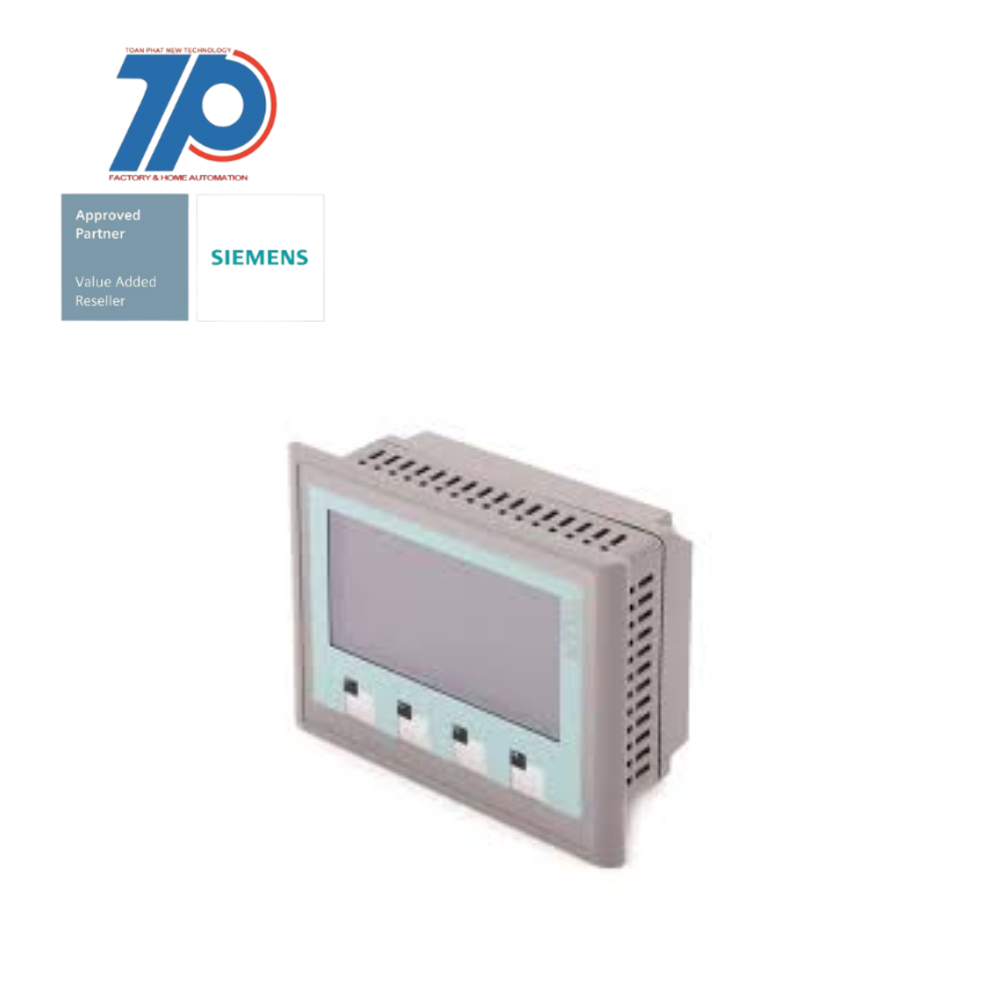

    • SIMATIC TP 177B 4" Color PN/DP TFT 256 Color-16:9-display
    • MPI/PROFIBUS DP protocol
    • RS 485/RS 422/USB interface
    • Ethernet 10/100 interface
    • Printer interface
    • Slot for MMC configurable with WinCC flexible 2008
    • Now only available as spare part.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces USB1
Supporting protocol for Foundation Fieldbusfalse

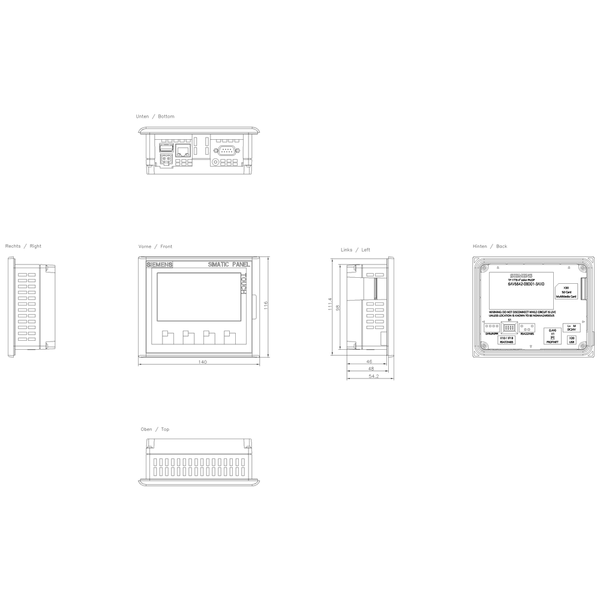

Width of the front140 mm
Radio standard WLAN 802.11false
Number of online languages5
Built-in depth48 mm
Radio standard GPRSfalse
With message indicationtrue
With numeric keyboardtrue
Number of HW-interfaces parallel0
Radio standard Bluetoothfalse
Supporting protocol for EtherNet/IPtrue
With printer outputtrue
Number of HW-interfaces serial TTY0
Additional software components, loadabletrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFIBUStrue
Screen diagonal4.3 inch
Type of displayTFT
Number of colours of the display256
Supply voltage DC20.4 V
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Radio standard GSMfalse
With SW interfacesfalse
Supporting protocol for CANfalse
Number of function buttons, programmable4
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Height of the front116 mm
Operating temperature50 °C
Radio standard UMTSfalse
Number of pixels, vertical272
Number of interfaces PROFINET1
Number of system buttons0
Rail mounting possiblefalse
Degree of protection (IP), front sideIP65
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
Supporting protocol for SERCOSfalse
Number of grey-scales/blue-scales of display0
Supply voltage DC28.8 V
Number of pixels, horizontal480
Colour displaytrue
Process default value (input) possibletrue
Supporting protocol for DeviceNet Safetyfalse
Process value representation (output) possibletrue
Wall mounting/direct mountingfalse
Number of buttons with LED0
With alpha numeric keyboardtrue
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for PROFIsafefalse
Number of password levels50
With recipestrue
Supporting protocol for other bus systemstrue
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Useful project memory/user memory2048 kByte
Supporting protocol for PROFINET IOtrue
Operating temperature0 °C
Number of HW-interfaces other0
Number of HW-interfaces wireless0
Supporting protocol for TCP/IPtrue
Number of HW-interfaces RS-4221
Supporting protocol for KNXfalse
