Material ID: 6AV6642-0DA01-1AX1Product Description

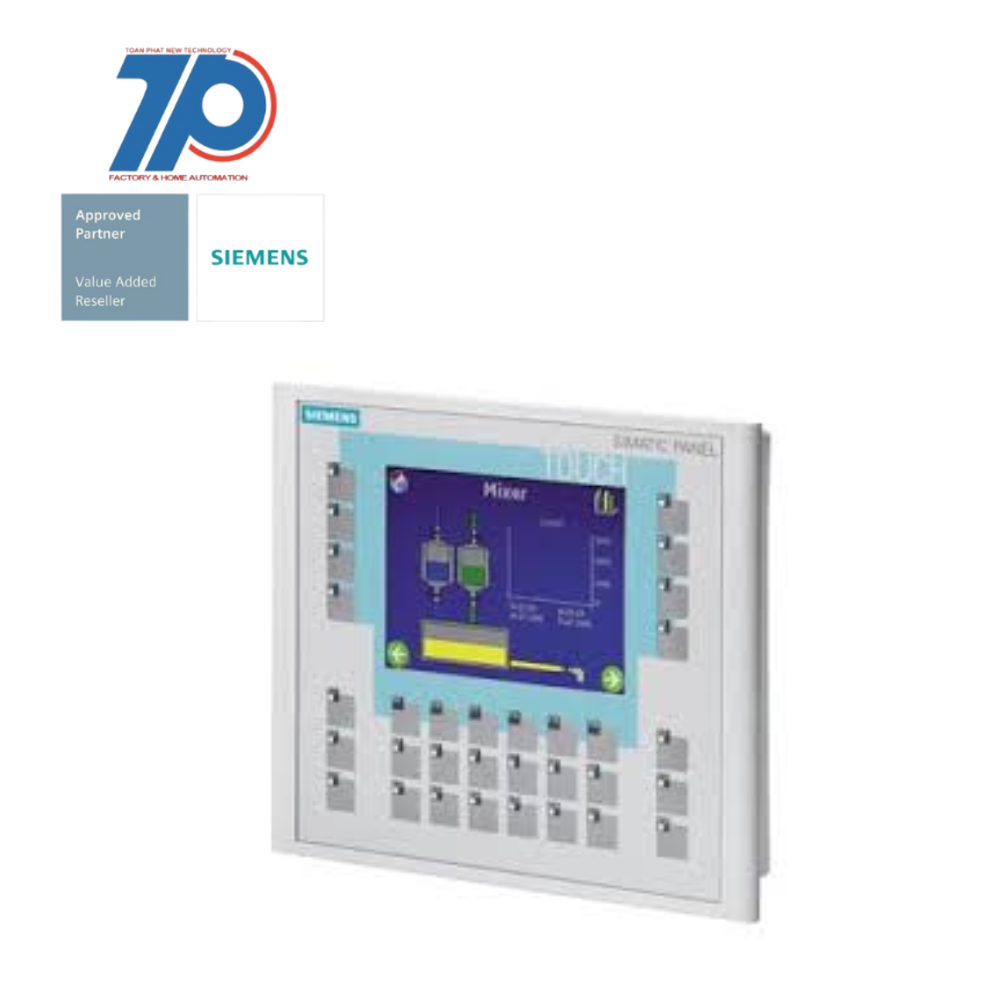

Spare Part: SIMATIC OP 177B 6" PN/DP STN

The SIMATIC OP 177B 6" PN/DP STN is a spare part that features a 256 color display with touch and key functionality. It supports the MPI/PROFIBUS DP protocol and offers RS485/RS422/USB interface connectivity. Additionally, it has an Ethernet 10/100 interface, a printer interface, and a slot for MMC. The device can be easily configured with WinCC flexible 2005.

Please note that the SIMATIC OP 177B 6" PN/DP STN is currently only available as a spare part.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Operating temperature0 °C
    Number of interfaces PROFINET1
    Number of HW-interfaces RS-2320
    With message indicationtrue
    Additional software components, loadabletrue
    Supporting protocol for INTERBUSfalse
    Colour displaytrue
    Process default value (input) possibletrue
    Supporting protocol for EtherNet/IPtrue
    Number of HW-interfaces RS-4221
    Number of HW-interfaces USB1
    Width of the front243 mm
    Suitable for safety functionsfalse
    Supporting protocol for Foundation Fieldbusfalse
    Type of displaySTN
    Supporting protocol for other bus systemstrue
    Supporting protocol for PROFIsafefalse
    Number of HW-interfaces industrial Ethernet1
    IO link masterfalse
    Wall mounting/direct mountingfalse
    Number of HW-interfaces parallel0
    Radio standard GSMfalse
    Number of online languages5
    Height of the front212 mm
    Number of grey-scales/blue-scales of display0
    Supporting protocol for PROFIBUStrue
    Number of pixels, vertical240
    Number of buttons with LED26
    Supporting protocol for ASIfalse
    Supporting protocol for Modbustrue
    Number of HW-interfaces wireless0
    Screen diagonal5.7 inch
    Supply voltage DC28.8 V
    Radio standard UMTSfalse
    Number of colours of the display256
    Supporting protocol for TCP/IPtrue
    Process value representation (output) possibletrue
    Supporting protocol for AS-Interface Safety at Workfalse
    Radio standard GPRSfalse
    Supporting protocol for CANfalse
    With alpha numeric keyboardtrue
    Radio standard Bluetoothfalse
    Number of system buttons0
    Supporting protocol for KNXfalse
    Radio standard WLAN 802.11false
    Number of HW-interfaces RS-4851
    With message system (incl. buffer and confirmation)true
    Supporting protocol for SERCOSfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for Data-Highwayfalse
    Number of function buttons, programmable32
    With numeric keyboardtrue
    Supporting protocol for DeviceNet Safetyfalse
    Useful project memory/user memory2048 kByte
    Number of HW-interfaces serial TTY0
    With printer outputtrue
    Rail mounting possiblefalse
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for PROFINET IOtrue
    Number of password levels50
    Supporting protocol for SUCONETfalse
    With SW interfacesfalse
    Number of HW-interfaces other0
    Supporting protocol for DeviceNetfalse
    Number of pixels, horizontal320
    With recipestrue
    Operating temperature50 °C
    Supporting protocol for LONfalse
    Built-in depth45 mm
    Supply voltage DC20.4 V
    Degree of protection (IP), front sideIP65
