Material ID: 6AV6642-0DC01-1AX1Product Description

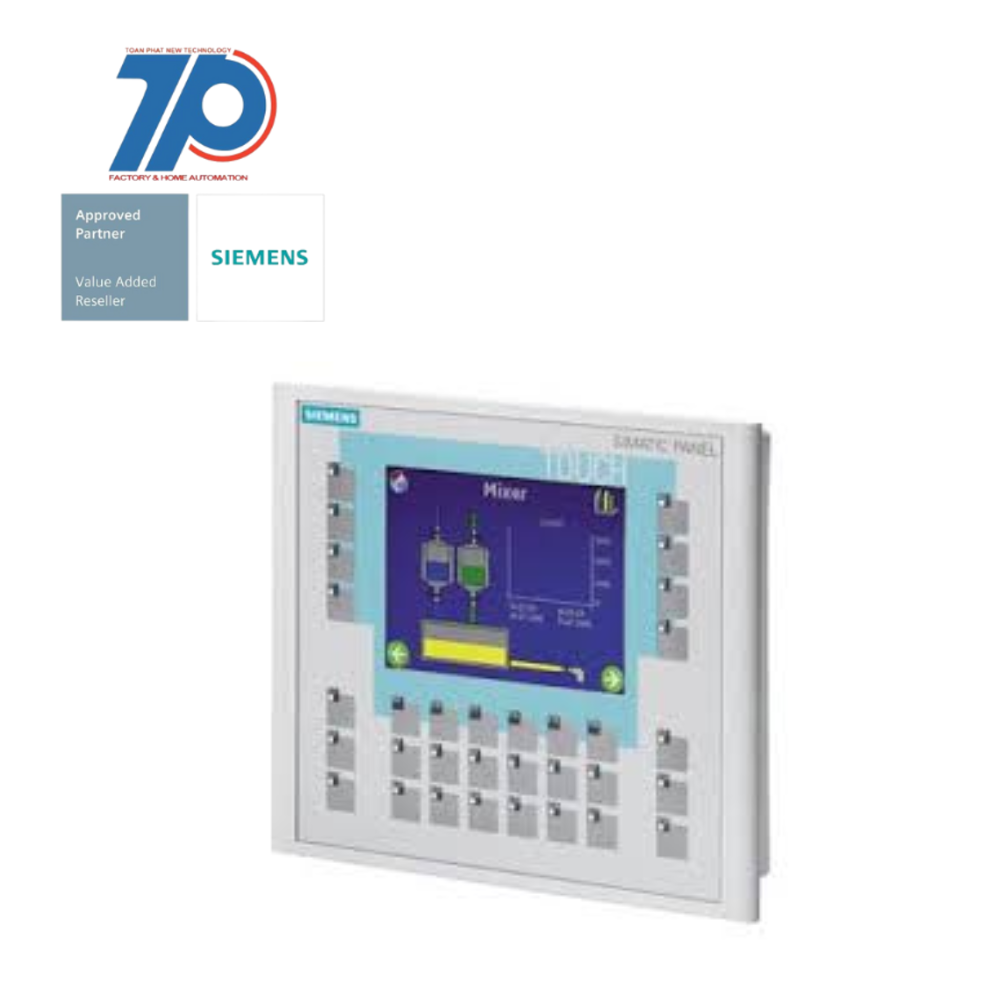

SIMATIC OP 177B 6" DP

Technical Features:

Commercial Benefits:

    • Display: 6" DP blue mode STN display
    • Input Method: Touch and key
    • Communication Protocols: MPI/PROFIBUS DP
    • Interfaces: RS485/RS422/USB
    • Printer Interface: Yes
    • Memory Card Slot: Yes (MMC)
    • Configuration Software: WinCC flexible 2005
    • Now available as a spare part
    • For more information, please refer to the SIMATIC news entry ID: 109486162
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Additional software components, loadabletrue
IO link masterfalse
Radio standard GSMfalse
Suitable for safety functionsfalse
Process default value (input) possibletrue
Supporting protocol for CANfalse
Number of buttons with LED26
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Height of the front212 mm
Supporting protocol for EtherNet/IPtrue
Number of grey-scales/blue-scales of display4
Built-in depth45 mm
Wall mounting/direct mountingfalse
Number of HW-interfaces USB1
Width of the front243 mm
Number of pixels, horizontal320
Number of colours of the display4
Process value representation (output) possibletrue
Number of HW-interfaces wireless0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse
Radio standard GPRSfalse
Supporting protocol for TCP/IPtrue
With alpha numeric keyboardtrue
Number of online languages5
Number of password levels50
With recipestrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for other bus systemstrue
Screen diagonal5.7 inch
Number of pixels, vertical240
Supply voltage DC28.8 V
Operating temperature0 °C
Type of displaySTN
With SW interfacesfalse
Supporting protocol for DeviceNetfalse
With numeric keyboardtrue
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-2320
With message indicationtrue
Supporting protocol for PROFINET IOfalse
Supporting protocol for SUCONETfalse
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFIBUStrue
Number of function buttons, programmable32
Supporting protocol for KNXfalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Colour displayfalse
Rail mounting possiblefalse
Number of interfaces PROFINET0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4221
Operating temperature50 °C
Supply voltage DC20.4 V
Useful project memory/user memory2048 kByte
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Degree of protection (IP), front sideIP65
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Radio standard UMTSfalse
