6AV6642-0EA01-3AX0

Thương hiệu: Siemens

Loại: HMI Screen

MSP: 6AV6642-0EA01-3AX0

Liên hệ

Cam kết bán hàng

Sản phẩm chính hãng
Bảo hành có cam kết
Đầy đủ phụ kiện từ nhà sản xuất
Giao hàng nhanh chóng (tuỳ khu vực)

LƯU Ý

Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ

(Có giá tốt khi mua số lượng nhiều)

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

Mô tả sản phẩm

Material ID: 6AV6642-0EA01-3AX0

The new part, as of 01.01.2015, is blocked for delivery.

Spare part can continue to be purchased as required, but price may deviate from new part.

Further information under SIMATIC current entry ID: 109486162.

For questions, the familiar contact persons are available to you.

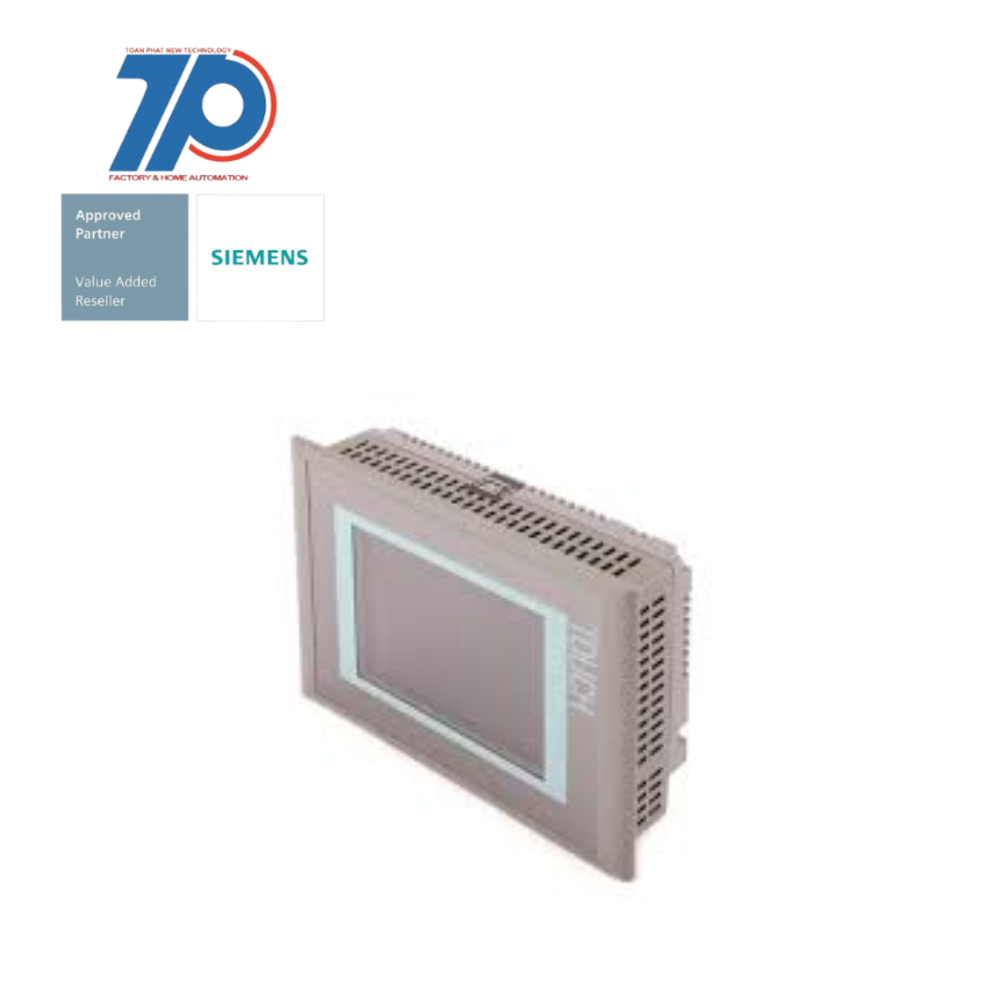

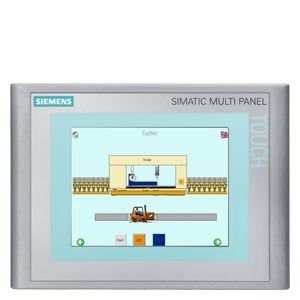

SIMATIC MP 177 6" Touch Multi Panel

Technical Features:

Commercial Benefits:

Now only available as spare part.

- 5.7" TFT display
- 2 MB configuration memory
- Configurable with WinCC flexible 2008 Compact or higher

Additional Information

Technical Data

Download

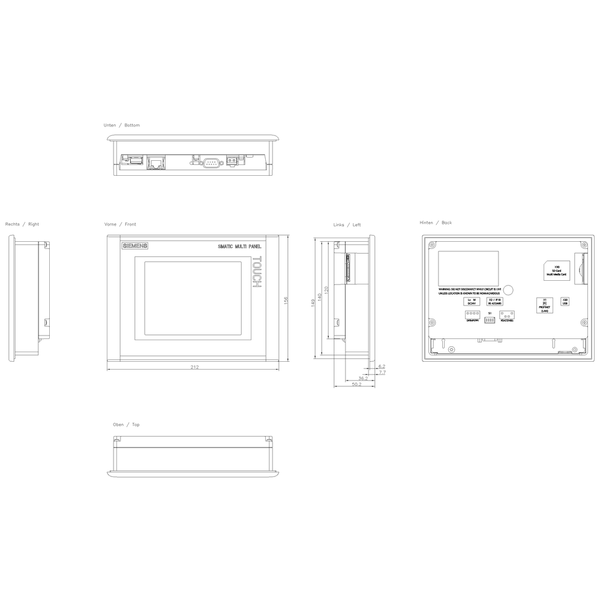

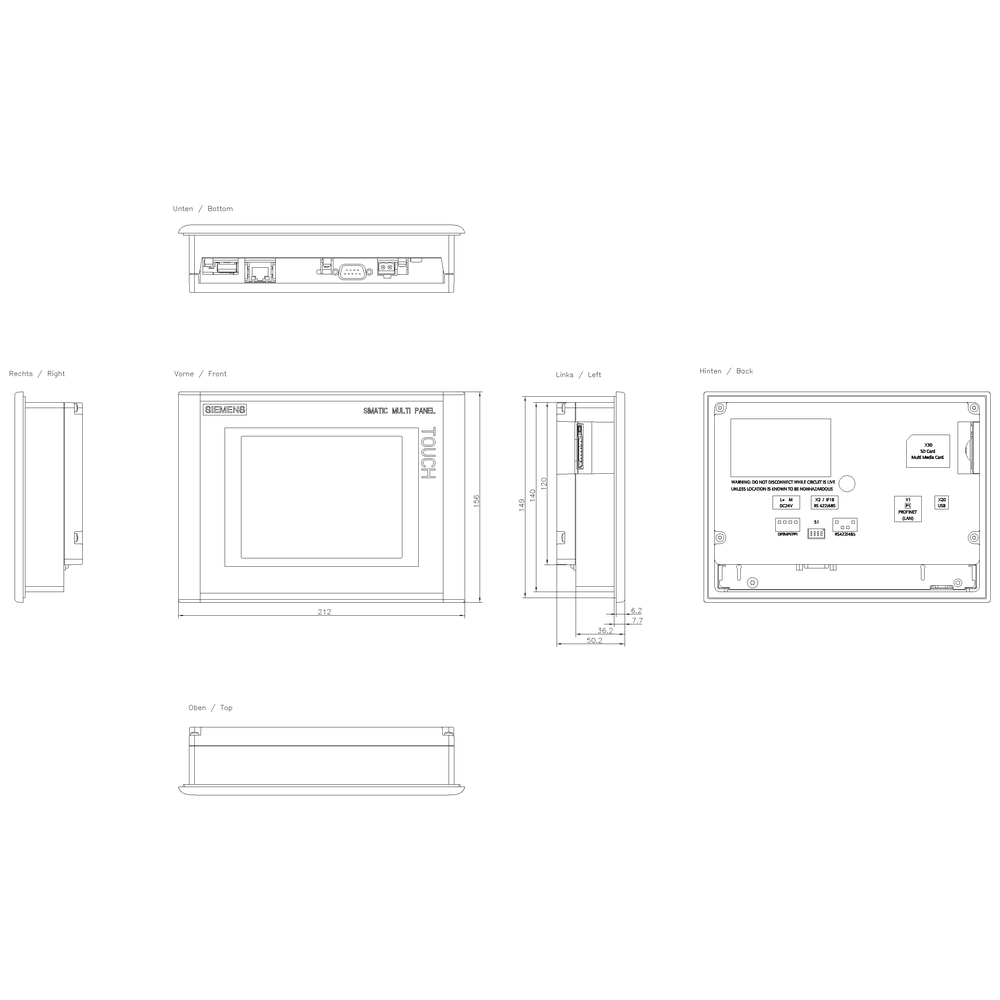

Dimensioned Drawing
Environmental Product Declaration incl. LCIA
Technical Data Sheet
Motion Control System
Circuit Diagram
REACH Information

Manuals / Links

Thông số kỹ thuật

FEATURE	VALUE
Supporting protocol for INTERBUS	false
Useful project memory/user memory	2000 kByte
Supporting protocol for Data-Highway	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for DeviceNet	false
Supporting protocol for Foundation Fieldbus	false
With recipes	true
Number of HW-interfaces other	0
With message indication	true
Number of buttons with LED	0
Operating temperature	50 °C
Number of password levels	50
Suitable for safety functions	false
Number of HW-interfaces RS-485	1
With message system (incl. buffer and confirmation)	true
Radio standard GPRS	false
Supporting protocol for TCP/IP	true
Supporting protocol for PROFINET IO	true
Number of HW-interfaces serial TTY	0
With printer output	true
Supporting protocol for PROFINET CBA	false
Supporting protocol for EtherNet/IP	true
Supporting protocol for LON	false
Supply voltage DC	20.4 V
Supporting protocol for CAN	false
Supporting protocol for ASI	false
Supporting protocol for Modbus	true
Number of pixels, horizontal	320
Radio standard WLAN 802.11	false
Supporting protocol for PROFIBUS	true
Number of HW-interfaces industrial Ethernet	1
IO link master	false
Supporting protocol for PROFIsafe	false
Number of online languages	5
With alpha numeric keyboard	true
Radio standard Bluetooth	false
Supporting protocol for SUCONET	false
Additional software components, loadable	true
Radio standard UMTS	false
Number of HW-interfaces parallel	0
Number of interfaces PROFINET	1
Number of colours of the display	65536
Supporting protocol for AS-Interface Safety at Work	false
Radio standard GSM	false
Wall mounting/direct mounting	false
Colour display	true
Supply voltage DC	28.8 V
With SW interfaces	false
Process default value (input) possible	true
Number of HW-interfaces RS-232	0
Number of grey-scales/blue-scales of display	0
Width of the front	212 mm
Number of function buttons, programmable	0
Built-in depth	45 mm
Operating temperature	0 °C
Number of HW-interfaces RS-422	1
Number of system buttons	0
Number of HW-interfaces wireless	0
Number of pixels, vertical	240
Rail mounting possible	false
Degree of protection (IP), front side	IP65
Type of display	TFT
With numeric keyboard	true
Supporting protocol for other bus systems	true
Height of the front	156 mm
Number of HW-interfaces USB	1
Supporting protocol for KNX	false
Supporting protocol for DeviceNet Safety	false
Process value representation (output) possible	true
Supporting protocol for SERCOS	false
Screen diagonal	5.7 inch
Voltage type (supply voltage)	DC
Supporting protocol for INTERBUS-Safety	false
