Material ID: 6AV6643-0AA01-1AX0Product Description

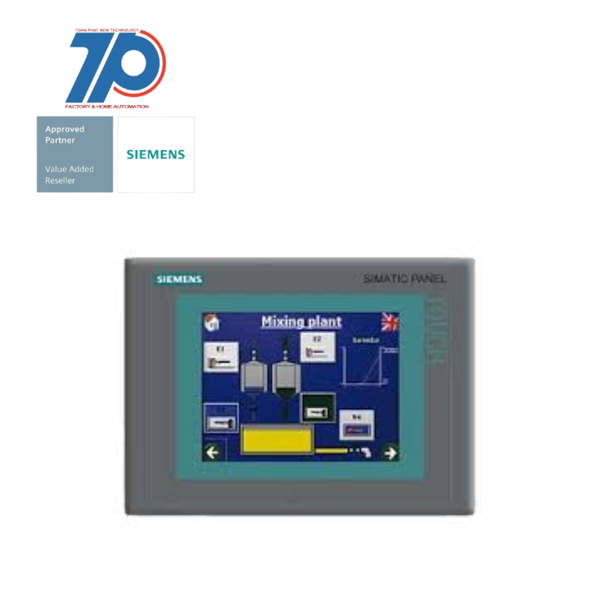

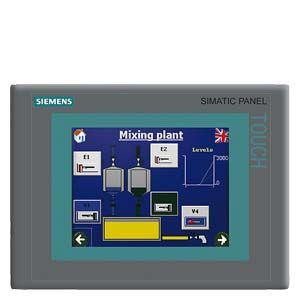

Spare Part: SIMATIC TP 277 6" Touch Panel
The SIMATIC TP 277 6" touch panel is a high-quality spare part designed for various technical applications. It features a 5.7" TFT display that provides clear and vibrant visuals. With 4 MB configuration memory, it offers ample storage capacity for your configurations. The touch panel is easily configurable using WinCC flexible 2005 Standard software.
This spare part is an essential component for maintaining and repairing your technical systems. It ensures seamless operation and enhances the overall performance of your equipment. The SIMATIC TP 277 6" touch panel is now available exclusively as a spare part, making it a valuable addition to your inventory.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Process value representation (output) possible | true |
| Supporting protocol for PROFINET CBA | false |
| Number of buttons with LED | 0 |
| Screen diagonal | 5.7 inch |
| With SW interfaces | false |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 240 |
| Supporting protocol for SUCONET | false |
| Number of function buttons, programmable | 0 |
| Supply voltage DC | 28.8 V |
| Useful project memory/user memory | 4000 kByte |
| Colour display | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for TCP/IP | true |
| With numeric keyboard | true |
| Number of grey-scales/blue-scales of display | 0 |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for CAN | false |
| Operating temperature | 0 °C |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces USB | 1 |
| Type of display | TFT |
| Wall mounting/direct mounting | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| With printer output | true |
| Number of HW-interfaces serial TTY | 0 |
| With alpha numeric keyboard | true |
| Number of HW-interfaces RS-232 | 0 |
| Height of the front | 156 mm |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces other | 1 |
| Number of colours of the display | 256 |
| Supporting protocol for Foundation Fieldbus | false |
| Operating temperature | 50 °C |
| Number of interfaces PROFINET | 1 |
| Number of online languages | 16 |
| With message indication | true |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 20.4 V |
| Suitable for safety functions | false |
| Number of password levels | 50 |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | true |
| Radio standard WLAN 802.11 | false |
| Number of system buttons | 0 |
| Built-in depth | 45 mm |
| Radio standard Bluetooth | false |
| Process default value (input) possible | true |
| Supporting protocol for PROFINET IO | true |
| Rail mounting possible | false |
| Width of the front | 212 mm |
| Radio standard UMTS | false |
| Number of HW-interfaces RS-422 | 1 |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for other bus systems | true |
| With recipes | true |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| Supporting protocol for PROFIsafe | false |
| Number of HW-interfaces RS-485 | 1 |
| With message system (incl. buffer and confirmation) | true |
| Additional software components, loadable | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
