Material ID: 6AV6643-0BA01-1AX0Product Description

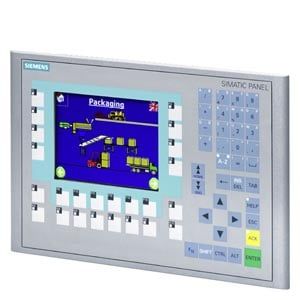

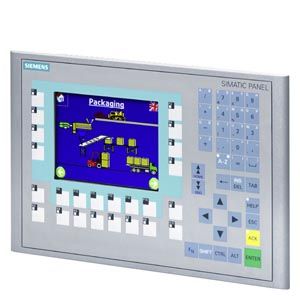

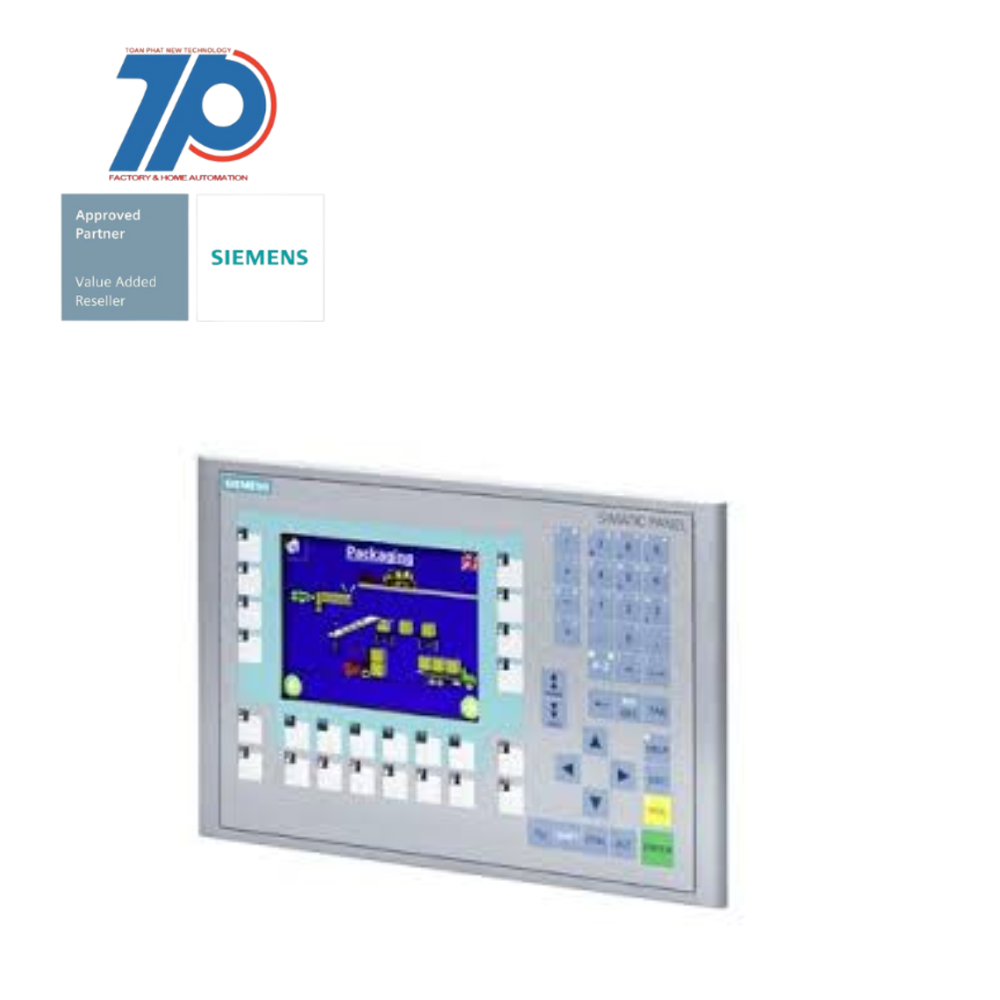

Spare Part: SIMATIC OP 277 6" Operator Panel

Technical Features:

Commercial Benefits:

Now only available as a spare part.

    • 5.7" TFT display
    • 4 MB configuration memory
    • Configurable with WinCC flexible 2005 Standard SP1
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Supporting protocol for SUCONETfalse
Additional software components, loadabletrue
Supporting protocol for Foundation Fieldbusfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Operating temperature50 °C
Supporting protocol for DeviceNetfalse
With recipestrue

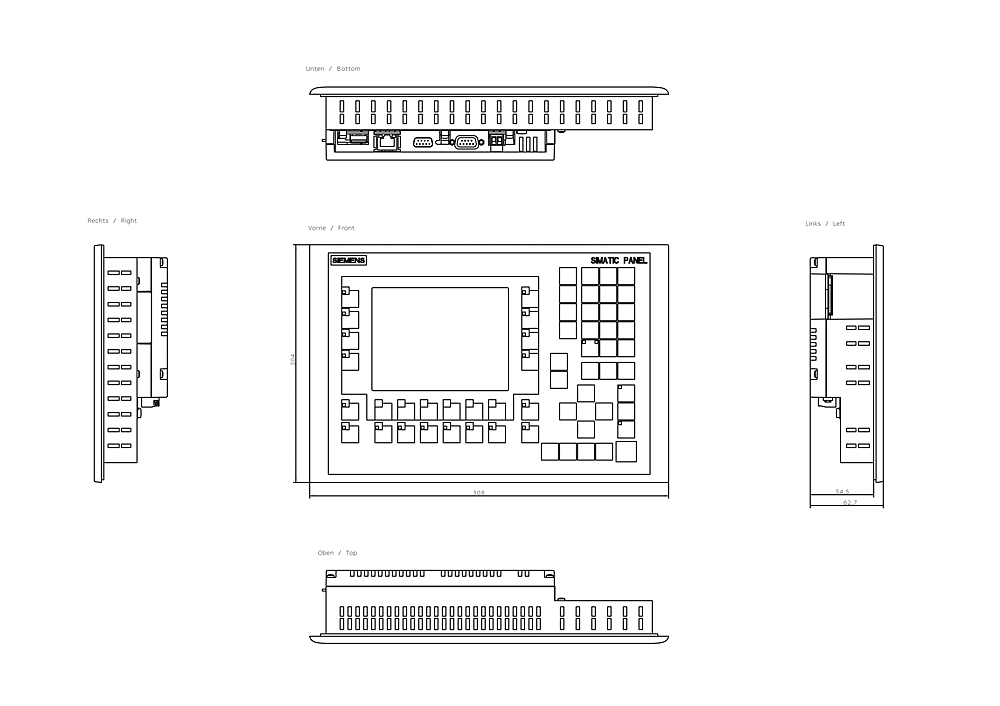

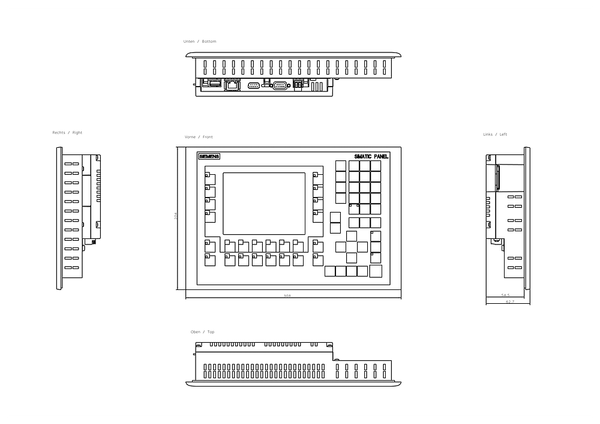

Height of the front204 mm
Touch technologyNone
Supporting protocol for EtherNet/IPfalse
Width of the front308 mm
Radio standard Bluetoothfalse
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Rail mounting possiblefalse
Degree of protection (IP), front sideIP65
Supporting protocol for PROFINET IOtrue
Supporting protocol for PROFIsafefalse
With alpha numeric keyboardtrue
Number of system buttons36
Supporting protocol for PROFINET CBAfalse
Radio standard GSMfalse
Supporting protocol for TCP/IPtrue
Number of HW-interfaces serial TTY0
With printer outputtrue
Supporting protocol for INTERBUSfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Process default value (input) possibletrue
Number of pixels, horizontal320
Radio standard WLAN 802.11false
Supporting protocol for PROFIBUStrue
Number of buttons with LED18
Number of pixels, vertical240
Operating temperature0 °C
Number of HW-interfaces RS-4221
Number of function buttons, programmable24
Number of HW-interfaces wireless0
With numeric keyboardtrue
Radio standard UMTSfalse
Number of HW-interfaces parallel0
Number of interfaces PROFINET1
Supporting protocol for AS-Interface Safety at Workfalse
Number of online languages16
Wall mounting/direct mountingfalse
Colour displaytrue
Useful project memory/user memory4000 kByte
Supply voltage DC28.8 V
Built-in depth59 mm
Number of password levels50
Number of colours of the display256
Supporting protocol for LONfalse
Supply voltage DC20.4 V
With SW interfacesfalse
Number of HW-interfaces RS-2320
With message indicationtrue
Number of grey-scales/blue-scales of display0
Number of HW-interfaces other1
Radio standard GPRSfalse
Supporting protocol for CANfalse
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for SERCOSfalse
Supporting protocol for other bus systemstrue
Type of displayTFT
Number of HW-interfaces USB1
Screen diagonal5.7 inch
Supporting protocol for KNXfalse
Supporting protocol for DeviceNet Safetyfalse
Process value representation (output) possibletrue
