Material ID: 6AV6643-0CD01-1AX1

Technical Features:

Product Description:

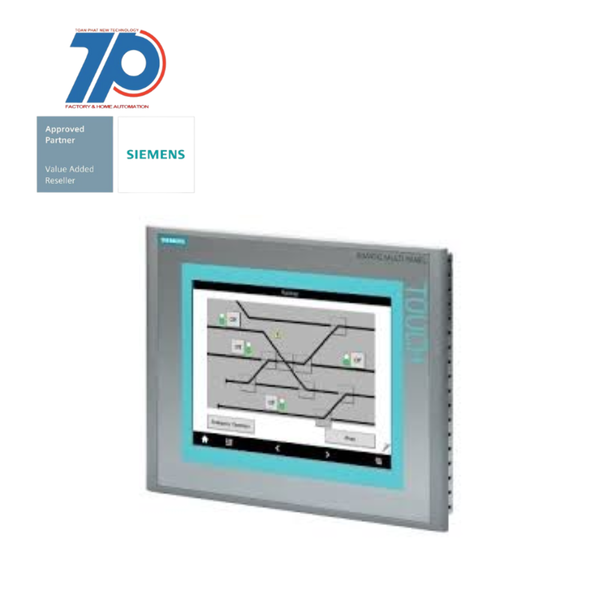

The SIMATIC MP 277 10" Touch Multi Panel is equipped with a 10.4" TFT display and 6 MB configuration memory. It is configurable with WinCC flexible 2005 Standard SP1. This panel also features retentive memory.

Commercial Benefits:

Now only available as a spare part.

For any questions, please contact our familiar contact persons.

    • The new part, as of 01.01.2015, is blocked for delivery.
    • Spare part can continue to be purchased as required, but price may deviate from new part.
    • Further information under SIMATIC current entry ID: 109486162.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Foundation Fieldbusfalse
Radio standard WLAN 802.11false
Radio standard GPRSfalse
With message indicationtrue
Number of HW-interfaces USB2
With numeric keyboardtrue
Number of HW-interfaces parallel0
Number of function buttons, programmable0
Radio standard Bluetoothfalse
Number of pixels, horizontal640
With printer outputtrue
Number of HW-interfaces serial TTY0
Additional software components, loadabletrue
Number of pixels, vertical480
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for PROFIBUStrue
Type of displayTFT
Supply voltage DC20.4 V
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Radio standard GSMfalse
With SW interfacesfalse

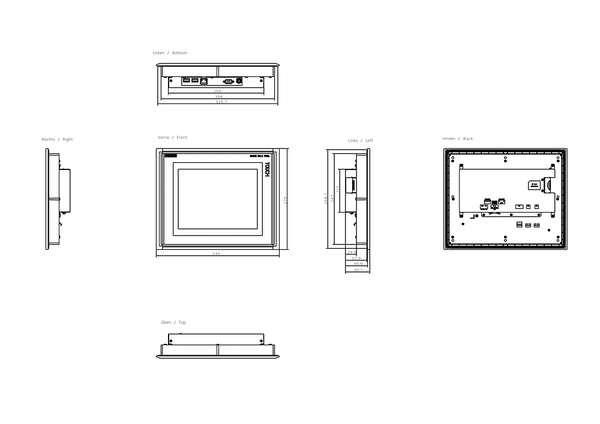

Height of the front275 mm
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Operating temperature50 °C
Radio standard UMTSfalse
Number of interfaces PROFINET1
Number of system buttons0
Rail mounting possiblefalse
Degree of protection (IP), front sideIP65
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Supporting protocol for SERCOSfalse
Number of grey-scales/blue-scales of display0
Supply voltage DC28.8 V
Colour displaytrue
Process default value (input) possibletrue
Useful project memory/user memory6000 kByte
Supporting protocol for DeviceNet Safetyfalse
Process value representation (output) possibletrue
Wall mounting/direct mountingfalse
Number of online languages16
Number of buttons with LED0
With alpha numeric keyboardtrue
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Data-Highwayfalse
Number of colours of the display65536
Supporting protocol for PROFIsafefalse
Number of password levels50
Supporting protocol for EtherNet/IPfalse
With recipestrue
Supporting protocol for other bus systemstrue
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Supporting protocol for PROFINET IOtrue
Built-in depth61 mm
Operating temperature0 °C
Number of HW-interfaces wireless0
Number of HW-interfaces other1
Supporting protocol for INTERBUSfalse
Screen diagonal10.4 inch
Supporting protocol for TCP/IPtrue
Number of HW-interfaces RS-4221
Supporting protocol for KNXfalse
Width of the front335 mm
