Material ID: 6AV6643-0DB01-1AX2

Technical Features:

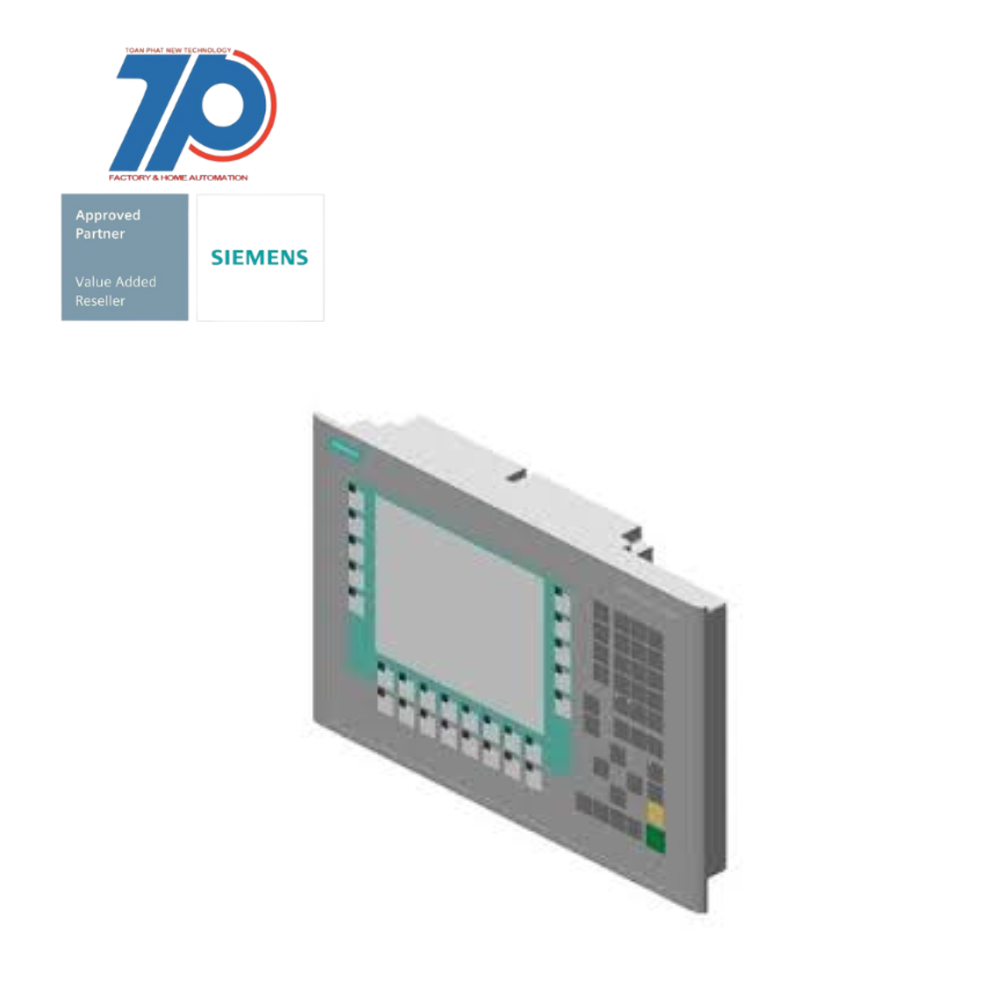

The SIMATIC MP 277 8" Key Multi Panel is equipped with the following technical features:

Commercial Benefits:

As of 01.01.2015, the new part is blocked for delivery. However, spare parts can still be purchased as required. Please note that the price of the spare part may deviate from the new part. For further information, please refer to SIMATIC current entry ID: 109486162.

If you have any questions, our familiar contact persons are available to assist you.

Now, the SIMATIC MP 277 8" Key Multi Panel is only available as a spare part.

    • 7.5" TFT display
    • 6 MB configuration memory
    • Configurable with WinCC flexible 2008 Standard SP3 Update 5
    • WinCC Comfort V13 HSP
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of online languages16
Radio standard UMTSfalse
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Number of buttons with LED18
Degree of protection (IP), front sideIP65
Supporting protocol for SERCOSfalse
Number of function buttons, programmable26
Supply voltage DC20.4 V
Number of HW-interfaces RS-2320
Number of password levels50
Width of the front362 mm
Supporting protocol for SafetyBUS pfalse
Operating temperature0 °C
Number of HW-interfaces other1
Touch technologyNone
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFIBUStrue
Rail mounting possiblefalse
Number of HW-interfaces USB2
Built-in depth61 mm
Number of interfaces PROFINET1
Supporting protocol for KNXfalse
Supporting protocol for SUCONETfalse
Useful project memory/user memory6000 kByte
Radio standard GPRSfalse
Screen diagonal7.5 inch
With recipestrue
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Number of colours of the display65536
Supporting protocol for TCP/IPtrue
Process value representation (output) possibletrue
Supporting protocol for other bus systemstrue
Number of HW-interfaces RS-4221
Operating temperature50 °C
Number of HW-interfaces wireless0
Type of displayTFT
Number of pixels, horizontal640
With alpha numeric keyboardtrue
Supporting protocol for PROFIsafefalse
Supporting protocol for EtherNet/IPfalse
Colour displaytrue
With numeric keyboardtrue
Wall mounting/direct mountingfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces parallel0
Supporting protocol for LONfalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Number of system buttons36
Additional software components, loadabletrue
Number of grey-scales/blue-scales of display0
Radio standard GSMfalse
Supporting protocol for CANfalse
With message indicationtrue
Supporting protocol for AS-Interface Safety at Workfalse
Process default value (input) possibletrue
Radio standard Bluetoothfalse
With SW interfacesfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Suitable for safety functionsfalse
Number of pixels, vertical480
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
Height of the front231 mm
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
