6AV6644-0AA01-2AX0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Material ID: 6AV6644-0AA01-2AX0
The new part
As of 01.01.2015, the new part is blocked for delivery. However, spare parts can still be purchased as required. Please note that the price of spare parts may deviate from the new part. For further information, please refer to the SIMATIC current entry ID: 109486162.
Technical Features
Commercial Benefits
Now only available as a spare part.
If you have any questions, please feel free to contact our familiar contact persons.

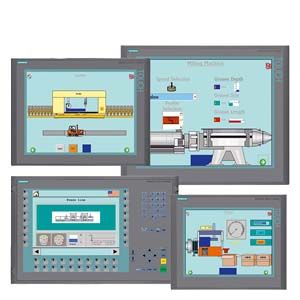

- SIMATIC MP 377 12" Touch Multi Panel
- Windows CE 5.0
- 12" color TFT display
- 12 MB configuration memory
- Configurable from WinCC flexible 2007
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard GPRS | false |
| Number of password levels | 50 |
| Supporting protocol for PROFIsafe | false |
| Operating temperature | 50 °C |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
| Built-in depth | 72 mm |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS | false |
| Radio standard WLAN 802.11 | false |
| With numeric keyboard | true |
| Number of HW-interfaces RS-485 | 1 |
| With message system (incl. buffer and confirmation) | true |
| Additional software components, loadable | true |
| Number of system buttons | 0 |
| Useful project memory/user memory | 12288 kByte |
| Type of display | TFT |
| Wall mounting/direct mounting | false |
| Suitable for safety functions | false |
| With message indication | true |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIBUS | true |
| Number of HW-interfaces USB | 2 |
| Rail mounting possible | false |
| Number of interfaces PROFINET | 2 |
| Number of buttons with LED | 0 |
| Supporting protocol for other bus systems | true |
| Process value representation (output) possible | true |
| Number of online languages | 16 |
| Supply voltage DC | 20.4 V |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Number of function buttons, programmable | 0 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for TCP/IP | true |
| Number of grey-scales/blue-scales of display | 0 |
| Number of pixels, horizontal | 800 |
| Supporting protocol for CAN | false |
| Operating temperature | 0 °C |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 335 mm |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for EtherNet/IP | true |
| Number of HW-interfaces serial TTY | 0 |
| With printer output | true |
| Supporting protocol for KNX | false |
| Screen diagonal | 12.1 inch |
| With SW interfaces | false |
| Height of the front | 275 mm |
| Radio standard UMTS | false |
| Number of HW-interfaces wireless | 0 |
| Number of colours of the display | 65536 |
| Supporting protocol for LON | false |
| Number of HW-interfaces RS-232 | 0 |
| With recipes | true |
| Supporting protocol for PROFINET CBA | false |
| Number of HW-interfaces other | 1 |
| Supply voltage DC | 28.8 V |
| With alpha numeric keyboard | true |
| Colour display | true |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces RS-422 | 1 |
| Process default value (input) possible | true |
| Number of pixels, vertical | 600 |
| IO link master | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for SERCOS | false |
