Material ID: 6AV6644-0AB01-2AX0

Technical Features:

Commercial Benefits:

The new part, as of 01.01.2015, is blocked for delivery. Spare parts can continue to be purchased as required, but the price may deviate from the new part. Further information can be found under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. Now only available as a spare part.

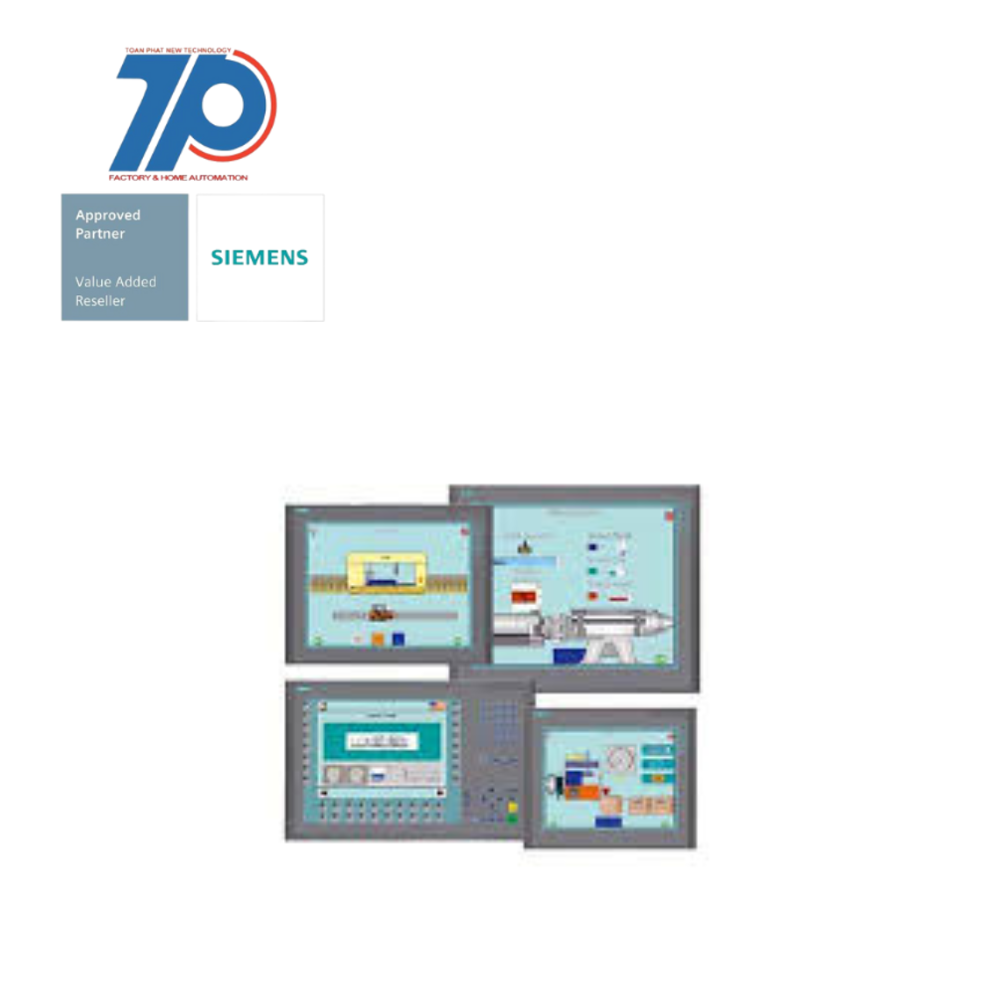

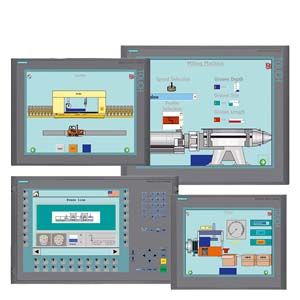

    • SIMATIC MP 377 15" Touch Multi Panel
    • Windows CE 5.0
    • 15" color TFT display
    • 12 MB configuration memory
    • Configurable from WinCC flexible 2007
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of password levels50
Process default value (input) possibletrue
Supporting protocol for INTERBUSfalse
With printer outputtrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
Number of grey-scales/blue-scales of display0
Process value representation (output) possibletrue
Screen diagonal15 inch
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for other bus systemstrue
Radio standard UMTSfalse
Number of pixels, vertical768
IO link masterfalse
Number of HW-interfaces wireless0
With SW interfacesfalse
Colour displaytrue
Number of online languages16
Built-in depth72 mm
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Radio standard GSMfalse
Number of system buttons0
Supporting protocol for TCP/IPtrue
Number of HW-interfaces USB2
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for CANfalse
Number of interfaces PROFINET2
Operating temperature0 °C
Number of HW-interfaces other1
Number of function buttons, programmable0
Supporting protocol for PROFIBUStrue

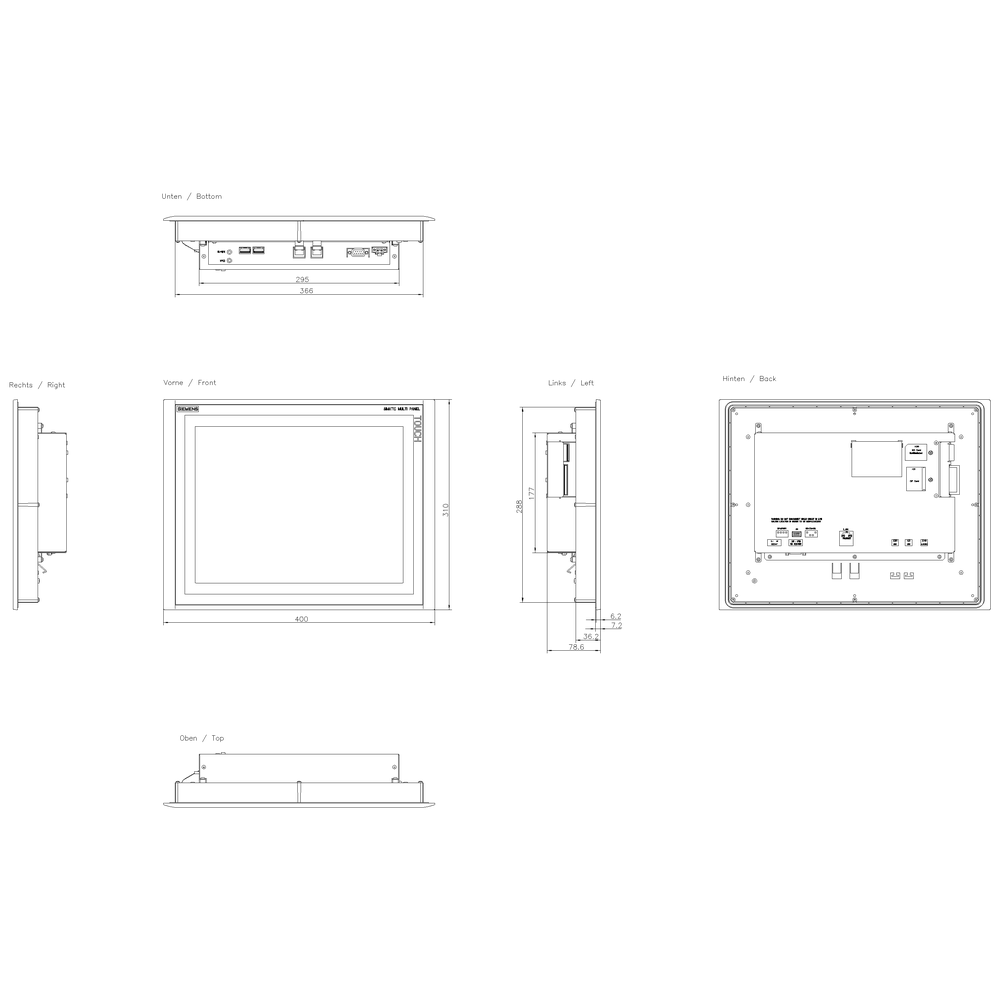

Width of the front400 mm
Supporting protocol for DeviceNetfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for LONfalse
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
With alpha numeric keyboardtrue
Radio standard Bluetoothfalse
Number of colours of the display65536
Supporting protocol for PROFIsafefalse
Radio standard WLAN 802.11false
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Supporting protocol for SERCOSfalse
Supporting protocol for EtherNet/IPtrue
Supply voltage DC28.8 V
Type of displayTFT
Degree of protection (IP), front sideIP65
Additional software components, loadabletrue
Rail mounting possiblefalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOtrue
Number of pixels, horizontal1024
Height of the front310 mm
Wall mounting/direct mountingfalse
Number of buttons with LED0
With numeric keyboardtrue
Number of HW-interfaces parallel0
Supply voltage DC20.4 V
Suitable for safety functionsfalse
Number of HW-interfaces RS-2320
With recipestrue
With message indicationtrue
Number of HW-interfaces RS-4221
Operating temperature50 °C
Useful project memory/user memory12288 kByte
