Material ID: 6AV6644-0AC01-2AX1

Technical Features:

Commercial Benefits:

    • The new part, as of 01.01.2015, is blocked for delivery.
    • Spare part can continue to be purchased as required, but price may deviate from new part.
    • Further information under SIMATIC current entry ID: 109486162.
    • For questions, the familiar contact persons are available to you.

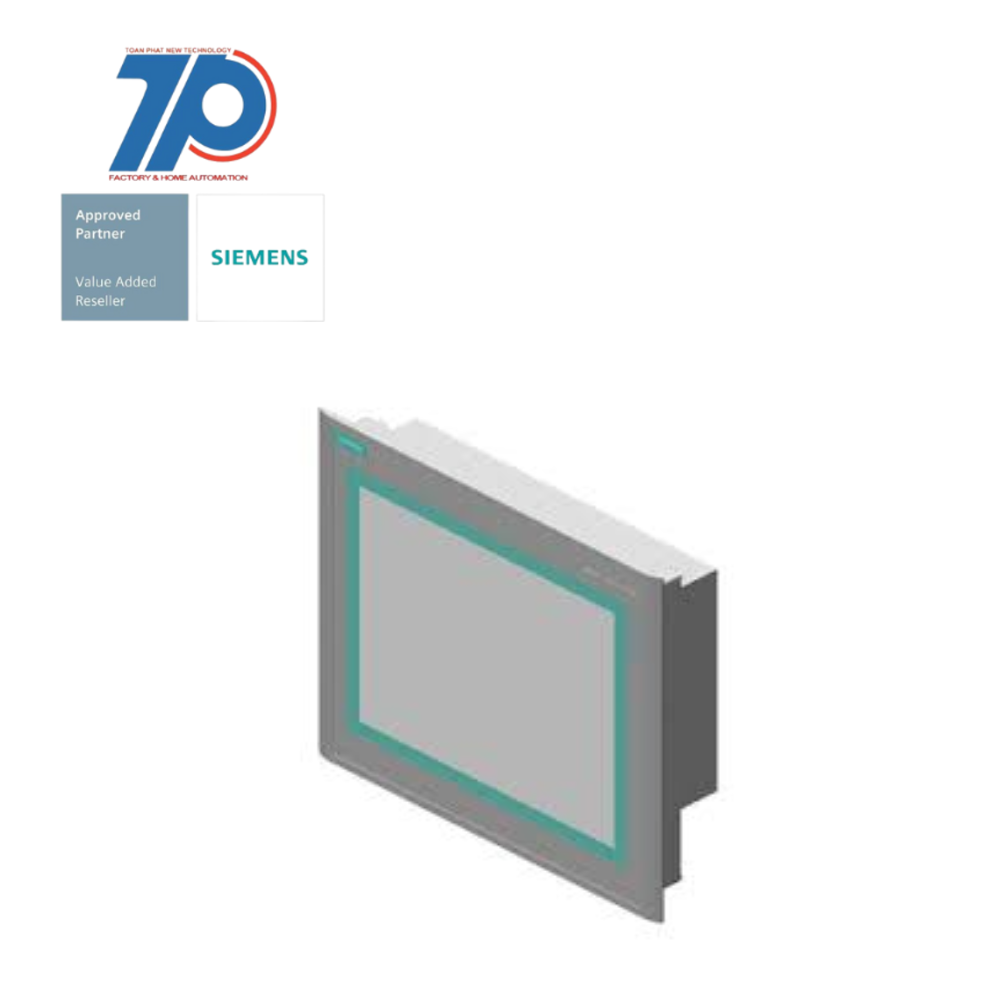

    • SIMATIC MP 377 19" Touch Multi Panel
    • Windows CE 5.0
    • 19" color TFT display
    • 12 MB configuration memory
    • Configurable from WinCC flexible 2007
    • Now only available as spare part.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFIsafefalse
With message indicationtrue
Colour displaytrue
Supporting protocol for INTERBUSfalse
Additional software components, loadabletrue
Number of grey-scales/blue-scales of display0
With recipestrue
Supporting protocol for LONfalse
Number of buttons with LED0
Supporting protocol for DeviceNet Safetyfalse
Degree of protection (IP), front sideIP65
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Number of pixels, vertical1024
Operating temperature50 °C
With alpha numeric keyboardtrue
Number of password levels50
Supporting protocol for PROFINET IOtrue
Supporting protocol for PROFINET CBAfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Width of the front483 mm
Process value representation (output) possibletrue
Supporting protocol for AS-Interface Safety at Workfalse
Number of colours of the display65536
Number of HW-interfaces parallel0
With numeric keyboardtrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Radio standard UMTSfalse
Number of HW-interfaces RS-2320
Supply voltage DC20.4 V
Supporting protocol for KNXfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Screen diagonal19 inch
Number of function buttons, programmable0
Number of HW-interfaces other1
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Height of the front400 mm
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supply voltage DC28.8 V
Supporting protocol for TCP/IPtrue
Number of HW-interfaces industrial Ethernet2
Number of online languages16
Radio standard Bluetoothfalse
Number of HW-interfaces wireless0
Type of displayTFT
Built-in depth75 mm
Radio standard WLAN 802.11false
Number of system buttons0
Number of pixels, horizontal1280
Supporting protocol for PROFIBUStrue
Supporting protocol for other bus systemstrue
Useful project memory/user memory12288 kByte
Rail mounting possiblefalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Suitable for safety functionsfalse
IO link masterfalse
Supporting protocol for Foundation Fieldbusfalse
With SW interfacesfalse
Operating temperature0 °C
Number of interfaces PROFINET2
Number of HW-interfaces RS-4221
Supporting protocol for EtherNet/IPtrue
Wall mounting/direct mountingfalse
Process default value (input) possibletrue
Number of HW-interfaces USB2
Radio standard GSMfalse
