Material ID: 6AV6645-0AB01-0AX0Product Description

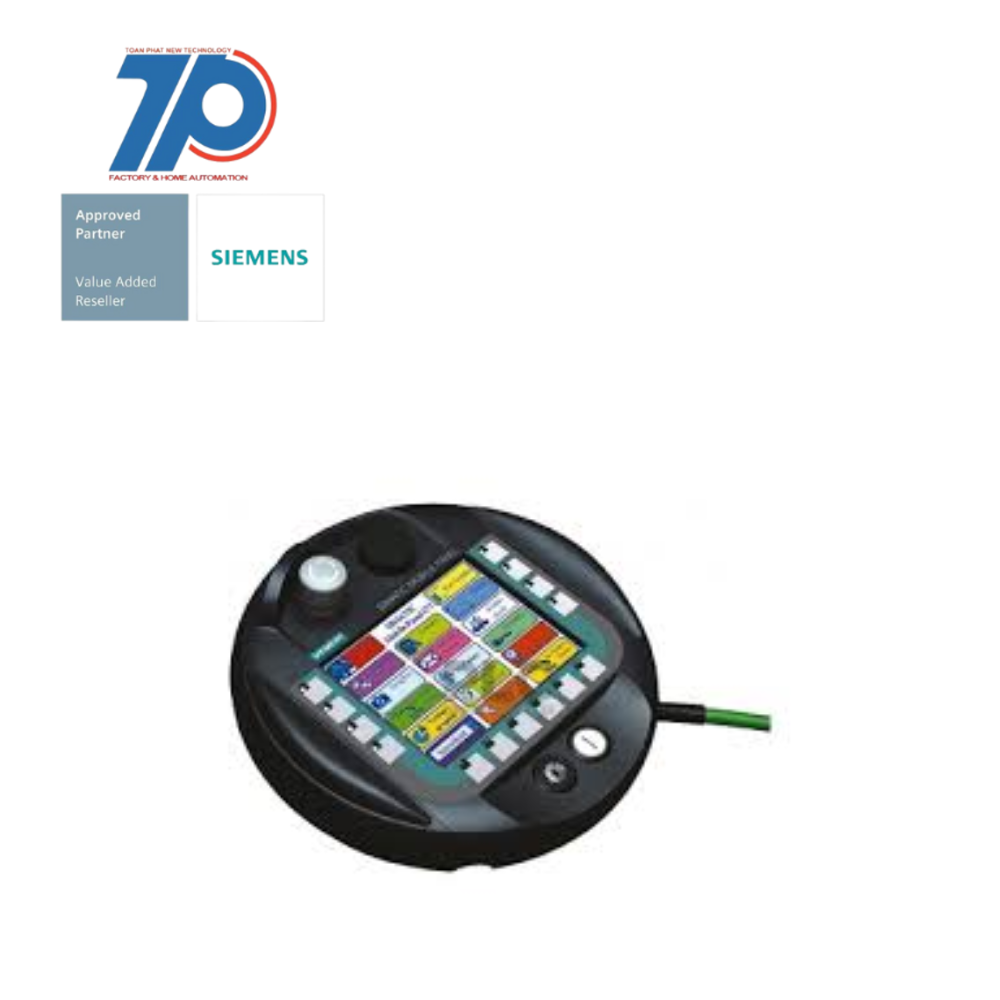

Spare Part: SIMATIC Mobile Panel 177 DP

Technical Features:

Commercial Benefits:

Note: This description is provided in the original language without any translation or changes.

    • Integrated Acknowledgment Button: Allows for easy acknowledgment of events.
    • Stop Pushbutton: Provides a quick and convenient way to stop operations.
    • Configurable with WinCC flexible Compact Version 2005 or higher: Compatible with WinCC flexible Compact Version 2005 or any newer version.
    • Configurable with TIA Portal V11 to V14: Can be configured using TIA Portal versions 11 to 14.
    • High Flexibility: The SIMATIC Mobile Panel 177 DP offers a wide range of configuration options.
    • Easy Integration: Compatible with various software versions, making it easy to integrate into existing systems.
    • Availability: Currently available as a spare part.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Width245 mm
Radio standard Bluetoothfalse
Number of HW-interfaces USB0
Number of HW-interfaces wireless0
Height245 mm
With touch screentrue
Supply voltage DC20.4 V
Depth58 mm
Number of HW-interfaces other0
Number of pixels, horizontal320
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Number of interfaces PROFINET0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Supporting protocol for TCP/IPfalse
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-2320
Number of buttons with LED8
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFIsafefalse
Number of password levels50
With recipestrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Operating temperature40 °C
Supporting protocol for PROFINET IOfalse
Supporting protocol for SUCONETfalse
Useful project memory/user memory2048 kByte
Number of HW-interfaces serial TTY0
Supporting protocol for KNXfalse
Radio standard UMTSfalse
Suitable for emergency stopfalse
Colour displaytrue
With message indicationtrue
Process default value (input) possibletrue
Radio standard GSMfalse
Supporting protocol for Foundation Fieldbusfalse
Number of online languages5
Supporting protocol for AS-Interface Safety at Workfalse
With printer outputfalse
Number of function buttons, programmable14
Number of HW-interfaces RS-4221
Operating temperature0 °C
Number of system buttons0
With alpha numeric keyboardfalse
Connection, pluggabletrue
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Screen diagonal5.7 inch
IO link masterfalse
Type of displaySTN
Supporting protocol for PROFIBUStrue
Number of pixels, vertical240
Degree of protection (IP)IP65
Number of colours of the display256
Weight1.3 kg
Process value representation (output) possibletrue
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
With enabling button/emergency-stop switchtrue
Suitable for safety functionstrue
Supply voltage DC28.8 V
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Max. fall height according to IEC 60068-2-321.5 m
