Material ID: 6AV6647-0AA11-3AX0

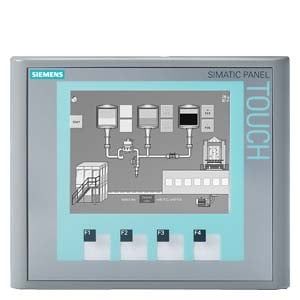

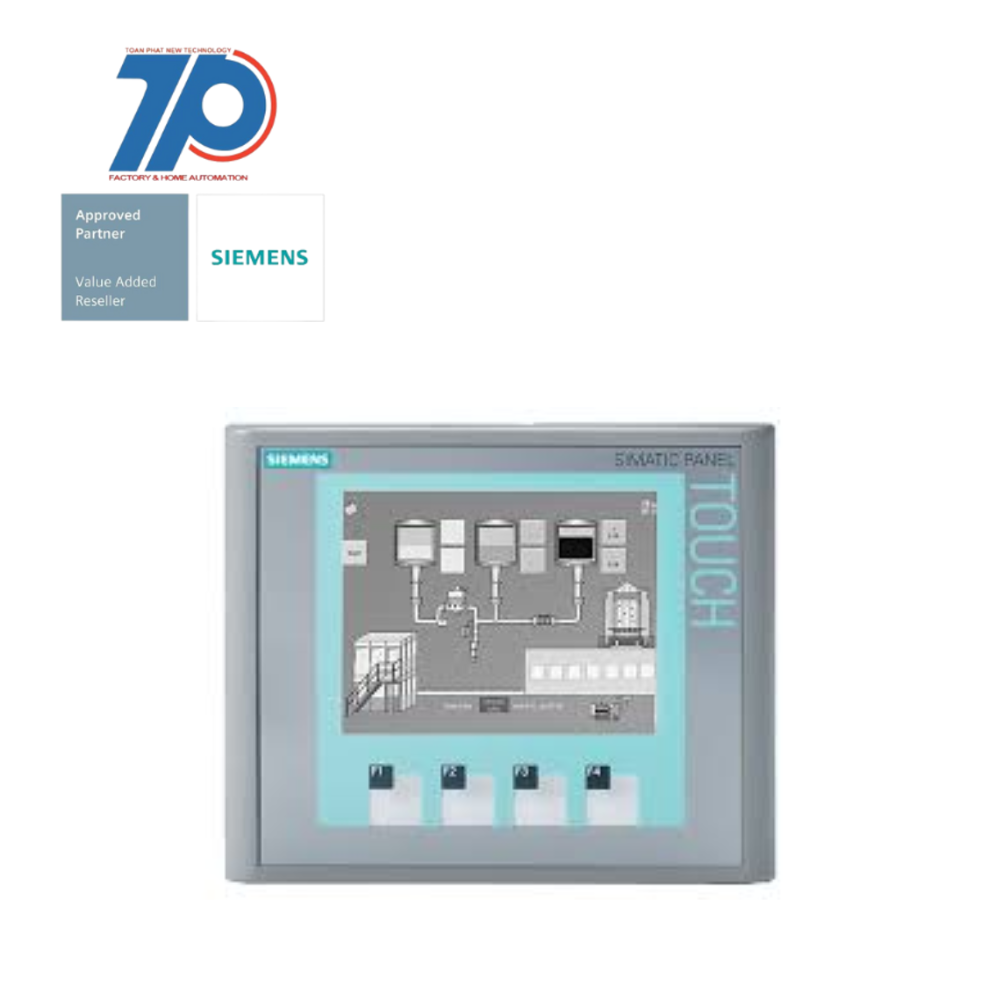

Spare Part: SIMATIC HMI KTP400 Basic mono PN

The SIMATIC HMI KTP400 Basic mono PN is a spare part for machine-level visualization tasks. It features a 4" STN display with 4 gray levels and supports key/touch operation. The panel has a PROFINET interface and can be configured with WinCC flexible 2008 SP2 Compact/WinCC Basic V10.5/STEP 7 Basic V10.5 software.

This spare part includes open-source software, which is provided free of charge on the enclosed CD. The SIMATIC HMI KTP400 Basic mono PN is an entry-level device with basic features and functionality, making it a cost-effective choice. Please note that this product is now only available as a spare part.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Number of system buttons0
    Rail mounting possiblefalse
    Colour displayfalse
    Supporting protocol for PROFIsafefalse
    Number of pixels, horizontal320
    Supporting protocol for DeviceNet Safetyfalse
    Degree of protection (IP), front sideIP65
    Radio standard Bluetoothfalse
    Number of pixels, vertical240
    With alpha numeric keyboardtrue
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for SafetyBUS pfalse
    Width of the front140 mm
    With message indicationtrue
    Number of HW-interfaces USB0
    Suitable for safety functionsfalse
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for LONfalse
    Number of online languages5
    Supporting protocol for EtherNet/IPtrue
    Supporting protocol for AS-Interface Safety at Workfalse
    Number of HW-interfaces serial TTY0
    Radio standard GPRSfalse
    Number of colours of the display4
    Process value representation (output) possibletrue
    Radio standard GSMfalse
    Height of the front116 mm
    Supporting protocol for SERCOSfalse
    Number of HW-interfaces RS-4850
    Operating temperature50 °C
    Supporting protocol for other bus systemsfalse
    Supporting protocol for ASIfalse
    Supporting protocol for Modbustrue
    Number of function buttons, programmable4
    Number of buttons with LED0
    Supporting protocol for Foundation Fieldbusfalse
    Number of HW-interfaces RS-4220
    Operating temperature0 °C
    Supporting protocol for CANfalse
    Supporting protocol for TCP/IPtrue
    Screen diagonal3.8 inch
    Number of HW-interfaces other0
    Number of HW-interfaces parallel0
    Useful project memory/user memory1000 kByte
    With numeric keyboardtrue
    Supply voltage DC28.8 V
    Number of password levels50
    Touch technologyResistive touch
    Supporting protocol for PROFINET CBAfalse
    Wall mounting/direct mountingfalse
    Supporting protocol for INTERBUSfalse
    With recipestrue
    Supply voltage DC19.2 V
    Number of HW-interfaces wireless0
    Radio standard UMTSfalse
    Supporting protocol for KNXfalse
    Number of interfaces PROFINET1
    Number of grey-scales/blue-scales of display4
    Type of displaySTN
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Additional software components, loadablefalse
    With message system (incl. buffer and confirmation)true
    Radio standard WLAN 802.11false
    Supporting protocol for DeviceNetfalse
    Process default value (input) possibletrue
    Supporting protocol for SUCONETfalse
    Number of HW-interfaces RS-2320
    Number of HW-interfaces industrial Ethernet1
    IO link masterfalse
    With SW interfacesfalse
    With printer outputfalse
    Built-in depth40 mm
