Material ID: 6AV6647-0AB11-3AX0

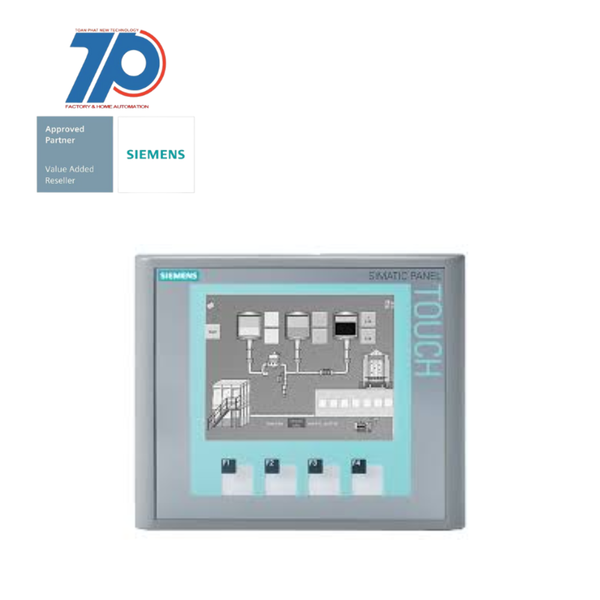

Spare Part: SIMATIC HMI KTP600 Basic mono PN

The SIMATIC HMI KTP600 Basic mono PN is a spare part for machine-level visualization tasks. It features a 6" STN display with 4 gray levels and supports key/touch operation. The panel is equipped with a PROFINET interface and can be configured using WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5.

The Basic Panel is an entry-level device that offers basic features and functionality at an attractive price. It contains open-source software, which is provided free of charge. Please refer to the enclosed CD for more information.

Note: This product is now only available as a spare part.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for Modbustrue
    Supporting protocol for ASIfalse
    Number of HW-interfaces industrial Ethernet1
    IO link masterfalse
    Supporting protocol for TCP/IPtrue
    Supporting protocol for PROFINET IOfalse
    Radio standard Bluetoothfalse
    Number of HW-interfaces USB0
    Supply voltage DC28.8 V
    Number of grey-scales/blue-scales of display4
    Built-in depth44 mm
    Number of colours of the display4
    Additional software components, loadablefalse
    Supporting protocol for KNXfalse
    Number of HW-interfaces RS-4220
    Number of password levels50
    Colour displayfalse
    Rail mounting possiblefalse
    With printer outputfalse
    Supporting protocol for EtherNet/IPtrue
    Supporting protocol for INTERBUSfalse
    Process default value (input) possibletrue
    Number of HW-interfaces RS-2320
    Number of HW-interfaces RS-4850
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for SUCONETfalse
    Wall mounting/direct mountingfalse
    Width of the front214 mm
    Radio standard GPRSfalse
    Number of HW-interfaces serial TTY0
    Supporting protocol for Foundation Fieldbusfalse
    Useful project memory/user memory1000 kByte
    Supporting protocol for SERCOSfalse
    With message system (incl. buffer and confirmation)true
    Radio standard WLAN 802.11false
    With SW interfacesfalse
    Supporting protocol for other bus systemsfalse
    Number of interfaces PROFINET1
    Supporting protocol for DeviceNetfalse
    Number of pixels, horizontal320
    Number of online languages5
    Operating temperature0 °C
    With numeric keyboardtrue
    Screen diagonal5.7 inch
    Number of buttons with LED0
    Supporting protocol for LONfalse
    Number of function buttons, programmable6
    Supporting protocol for DeviceNet Safetyfalse
    Radio standard UMTSfalse
    Number of system buttons0
    Radio standard GSMfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    With message indicationtrue
    With recipestrue
    Degree of protection (IP), front sideIP65
    Supporting protocol for CANfalse
    Touch technologyResistive touch
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Process value representation (output) possibletrue
    Number of HW-interfaces wireless0
    With alpha numeric keyboardtrue
    Supporting protocol for PROFIBUSfalse
    Number of pixels, vertical240
    Number of HW-interfaces parallel0
    Supporting protocol for PROFIsafefalse
    Number of HW-interfaces other0
    Operating temperature50 °C
    Supply voltage DC19.2 V
    Suitable for safety functionsfalse
    Type of displaySTN
    Height of the front158 mm
