Material ID: 6AV6647-0AC11-3AX0

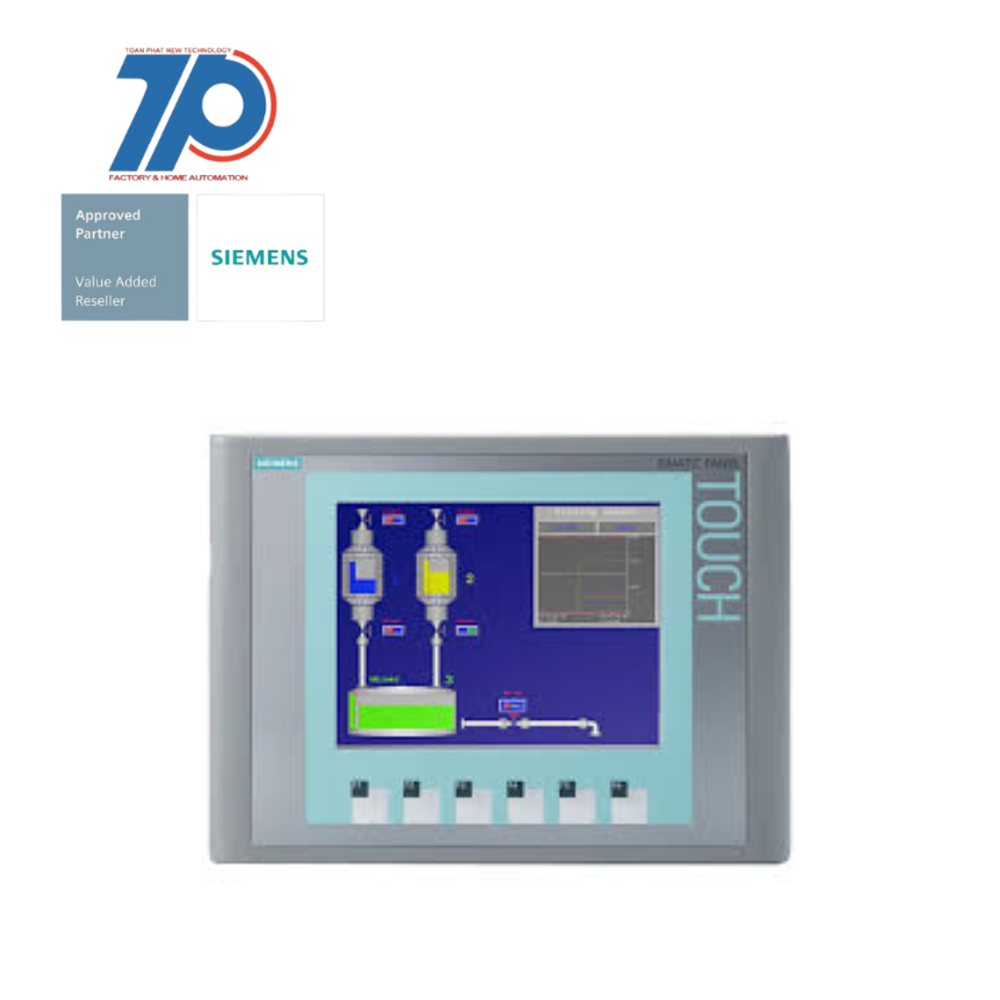

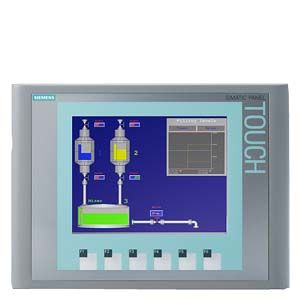

SIMATIC HMI KTP600 Basic Color DP

Technical Features:

Commercial Benefits:

The SIMATIC HMI KTP600 Basic Color DP is a perfect entry-level device for cost-effective implementation of simple visualization tasks at the machine level. Its basic features and functionality, along with an attractive price, make it an ideal choice for beginners. Please note that it is now only available as a spare part.

    • Basic Panel
    • Key/touch operation
    • 6" TFT display
    • 256 colors
    • MPI/PROFIBUS DP interface
    • Configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V11/ STEP 7 Basic V11
    • Contains open-source software, which is provided free of charge
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Type of displayTFT
Number of interfaces PROFINET0
Number of system buttons0
Supply voltage DC19.2 V
Supporting protocol for LONfalse
Supporting protocol for PROFIBUStrue
Degree of protection (IP), front sideIP65
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of function buttons, programmable6
Supporting protocol for Data-Highwayfalse
With message indicationtrue
Supporting protocol for PROFINET IOfalse
Radio standard WLAN 802.11false
Process value representation (output) possibletrue
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces USB0
Rail mounting possiblefalse
Operating temperature50 °C
Operating temperature0 °C
Number of pixels, vertical240
Width of the front214 mm
Radio standard GPRSfalse
Number of online languages5
Height of the front158 mm
With alpha numeric keyboardtrue
Supporting protocol for PROFIsafefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of pixels, horizontal320
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Useful project memory/user memory1000 kByte
Supporting protocol for KNXfalse
Number of HW-interfaces wireless0
Colour displaytrue
Supply voltage DC28.8 V
Wall mounting/direct mountingfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Screen diagonal5.7 inch
Number of grey-scales/blue-scales of display0
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Number of HW-interfaces RS-4221
With numeric keyboardtrue
Supporting protocol for TCP/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Number of password levels50
Supporting protocol for INTERBUSfalse
Number of buttons with LED0
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Touch technologyResistive touch
Built-in depth44 mm
With printer outputfalse
Supporting protocol for DeviceNetfalse
With recipestrue
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
Additional software components, loadablefalse
Radio standard GSMfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Radio standard Bluetoothfalse
With SW interfacesfalse
Number of colours of the display256
IO link masterfalse
Process default value (input) possibletrue
