Material ID: 6AV6647-0AD11-3AX0

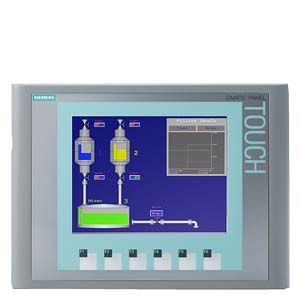

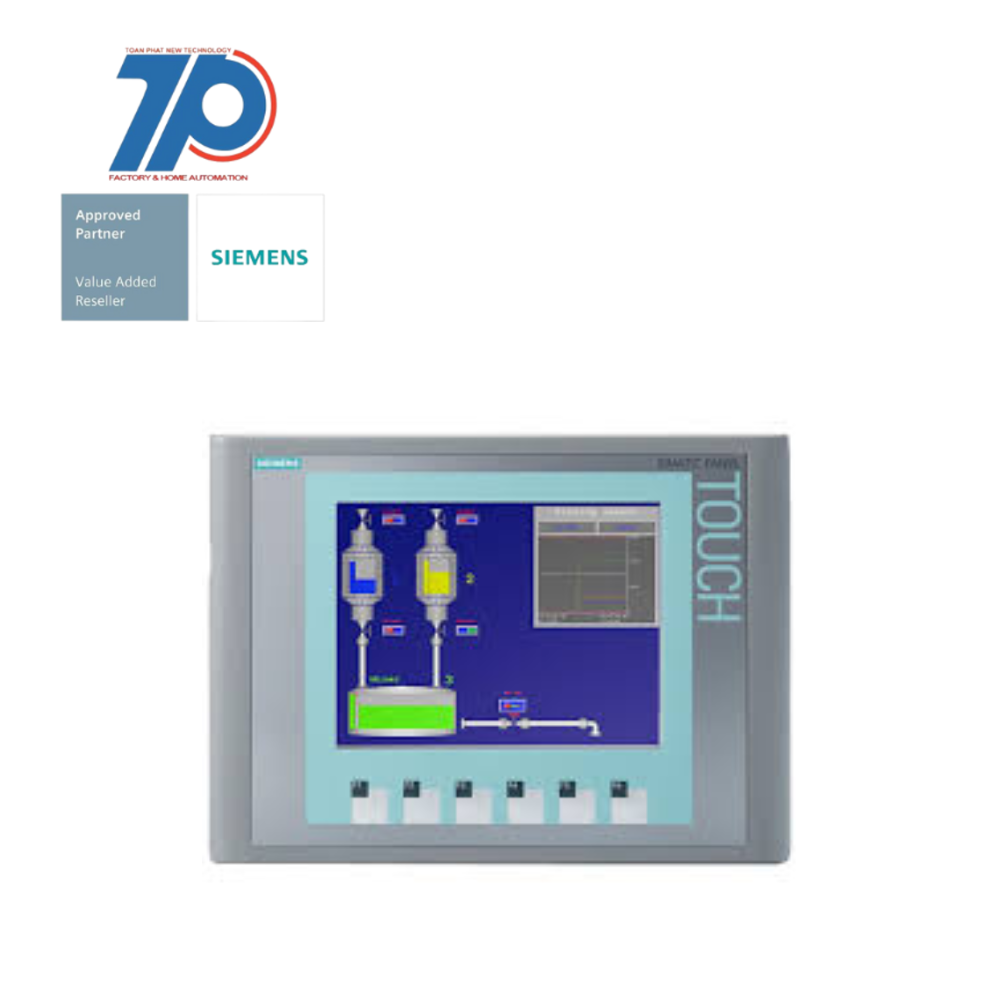

Spare Part: SIMATIC HMI KTP600 Basic Color PN

The SIMATIC HMI KTP600 Basic Color PN is a spare part for machine-level visualization tasks. It features a 6" TFT display with 256 colors and supports key/touch operation. The panel is equipped with a PROFINET interface and can be configured using WinCC flexible 2008 SP2 Compact/WinCC Basic V10.5/STEP 7 Basic V10.5.

This spare part includes open-source software, which is provided free of charge. Please refer to the enclosed CD for more information.

Basic Panels are ideal for cost-effective implementations of simple visualization tasks. They offer basic features and functionality at an attractive price, making them perfect entry-level devices.

Note: This product is now only available as a spare part.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for Data-Highwayfalse

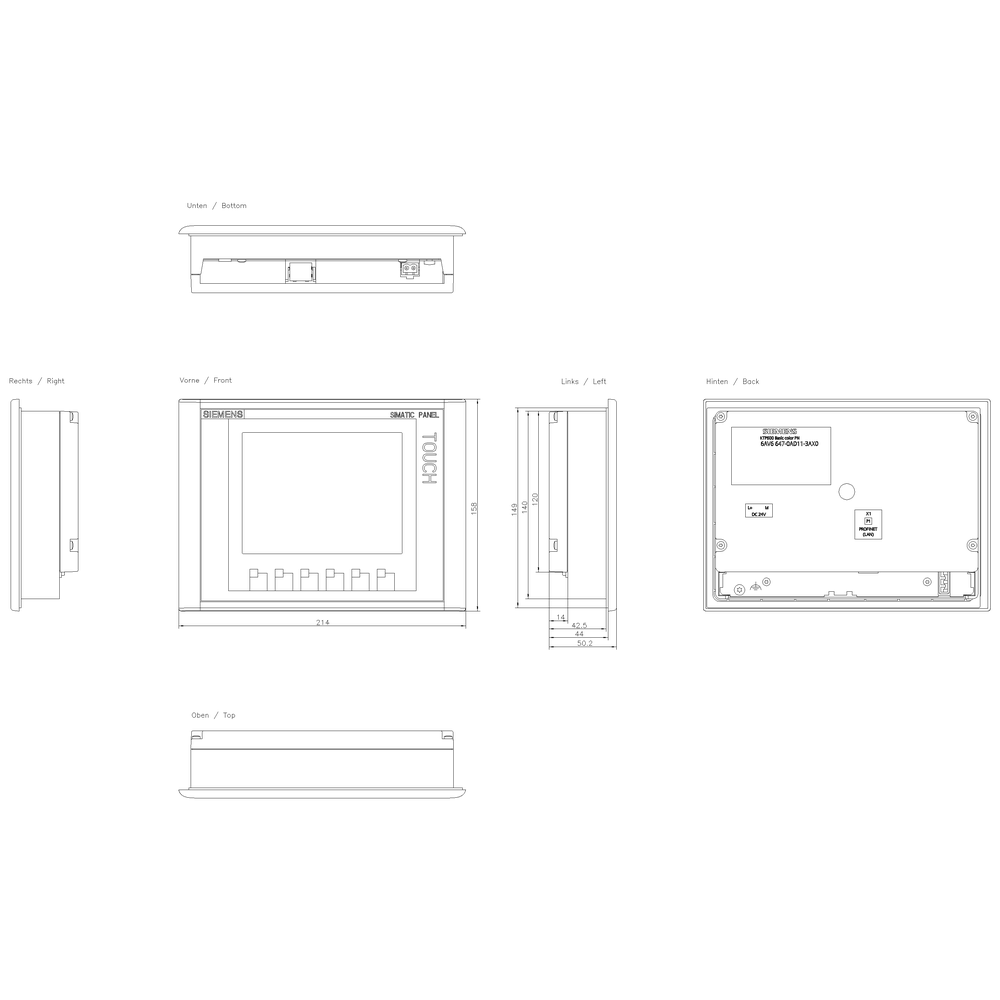

    Built-in depth44 mm
    Supporting protocol for KNXfalse
    Colour displaytrue
    Supporting protocol for SERCOSfalse
    With message system (incl. buffer and confirmation)true
    Number of function buttons, programmable6
    Number of system buttons0
    Supporting protocol for DeviceNet Safetyfalse
    Radio standard GPRSfalse
    Width of the front214 mm
    Number of online languages5
    Supporting protocol for TCP/IPtrue
    Supporting protocol for CANfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Number of HW-interfaces wireless0
    Number of HW-interfaces RS-4850
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Supporting protocol for PROFIsafefalse
    Screen diagonal5.7 inch
    Number of grey-scales/blue-scales of display0
    Number of HW-interfaces other0
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for Modbustrue
    Supporting protocol for ASIfalse
    Supply voltage DC19.2 V
    With SW interfacesfalse
    Number of buttons with LED0
    Supporting protocol for Foundation Fieldbusfalse
    Additional software components, loadablefalse
    Number of HW-interfaces RS-4220
    Number of pixels, vertical240
    Process value representation (output) possibletrue
    Supporting protocol for PROFINET IOfalse
    Number of password levels50
    Supporting protocol for PROFINET CBAfalse
    Touch technologyResistive touch
    With printer outputfalse
    Radio standard WLAN 802.11false
    Number of pixels, horizontal320
    Radio standard GSMfalse
    Supporting protocol for other bus systemsfalse
    Supporting protocol for INTERBUSfalse
    Radio standard Bluetoothfalse
    Process default value (input) possibletrue
    With recipestrue
    Suitable for safety functionsfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for SUCONETfalse
    With message indicationtrue
    Number of HW-interfaces RS-2320
    Height of the front158 mm
    Supporting protocol for LONfalse
    Number of colours of the display256
    With numeric keyboardtrue
    Number of HW-interfaces industrial Ethernet1
    IO link masterfalse
    Number of HW-interfaces serial TTY0
    Wall mounting/direct mountingfalse
    Operating temperature0 °C
    Number of interfaces PROFINET1
    Rail mounting possiblefalse
    Number of HW-interfaces parallel0
    Radio standard UMTSfalse
    Useful project memory/user memory1000 kByte
    Degree of protection (IP), front sideIP65
    Number of HW-interfaces USB0
    Operating temperature50 °C
    Type of displayTFT
    Supply voltage DC28.8 V
    With alpha numeric keyboardtrue
    Supporting protocol for EtherNet/IPtrue
    Supporting protocol for DeviceNetfalse
