Material ID: 6AV6647-0AJ11-3AX0

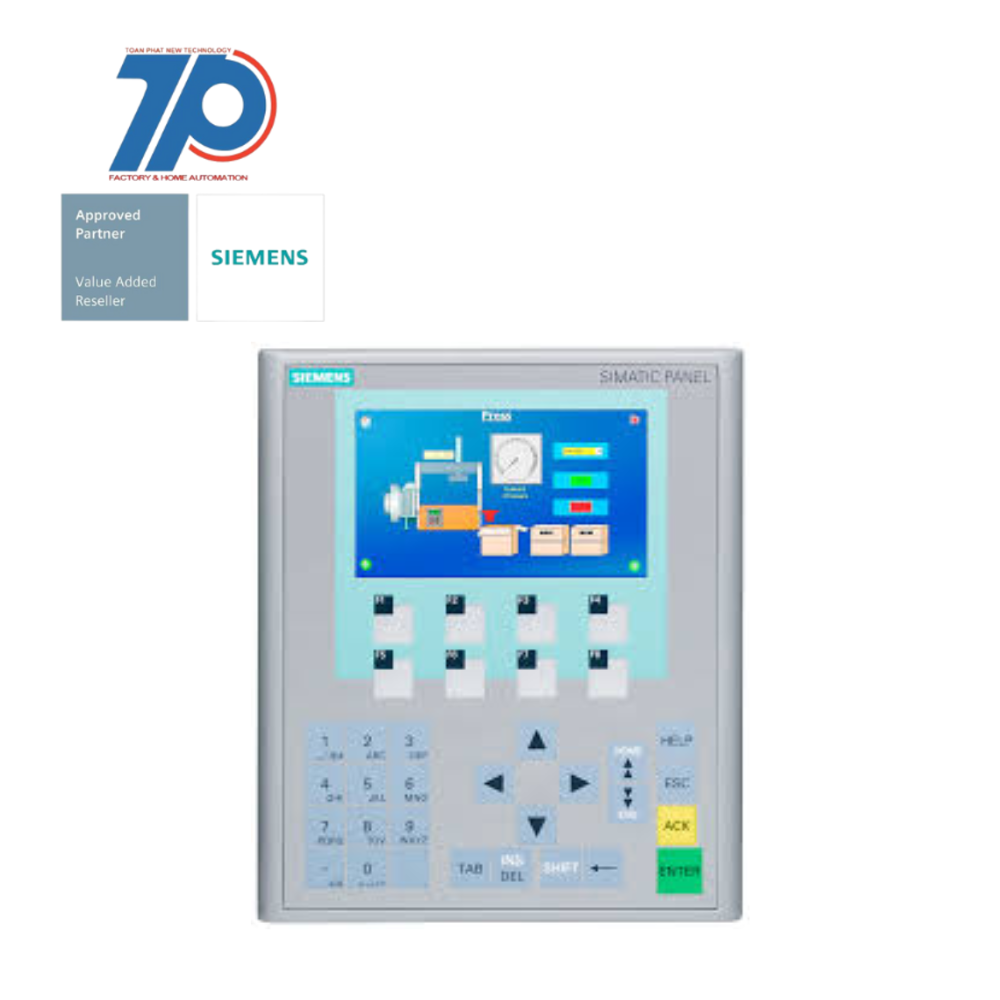

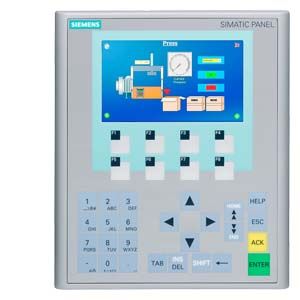

SIMATIC HMI KP400 Basic Color PN
Basic Panel with key operation
4" widescreen TFT display with 256 colors
PROFINET interface
Configurable from WinCC Basic V11 SP2/ STEP 7 Basic V11 SP2
Contains open-source software, provided free of charge (see enclosed CD)
SIMATIC HMI Basic Panels of the 2nd Generation - the beauty of simplicity!
Basic Panels are perfect for cost-effective implementation of simple visualization tasks at the machine level. They are ideal entry-level devices for small machines and plants, perfectly harmonizing with SIMATIC S7-1200 Basic Controllers.
You have the choice between 4", 7", 9" or 12" (diagonal) widescreen displays, available with combined pushbutton/touch-screen operation and gesture control support.
The high-resolution devices with 64,000 color displays are suitable for upright installation and offer flexible brightness control (up to 100% dimmable).
The innovative operator interface with improved usability provides a perse range of options, thanks to new controls and graphics.
The new USB interface allows connection of a keyboard, mouse, or barcode scanner, and supports simple archiving, as well as backup and restoration of all data to or from a USB flash drive directly at the panel.
Now only available as a spare part.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Touch technology | None |
| Number of grey-scales/blue-scales of display | 0 |
| Number of interfaces PROFINET | 1 |
| Operating temperature | 0 °C |
| Supporting protocol for TCP/IP | true |
| Height of the front | 189 mm |
| With alpha numeric keyboard | true |
| Number of HW-interfaces RS-232 | 0 |
| Number of system buttons | 14 |
| Supporting protocol for KNX | false |
| With SW interfaces | false |
| Number of password levels | 50 |
| Supporting protocol for Foundation Fieldbus | false |
| Additional software components, loadable | false |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for CAN | false |
| Radio standard GPRS | false |
| Supporting protocol for PROFIBUS | false |
| With message indication | true |
| Process value representation (output) possible | true |
| Screen diagonal | 4.3 inch |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard WLAN 802.11 | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for LON | false |
| Type of display | TFT |
| Number of colours of the display | 256 |
| Number of HW-interfaces wireless | 0 |
| Number of function buttons, programmable | 8 |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for other bus systems | true |
| With printer output | false |
| Supporting protocol for PROFINET IO | false |
| Number of HW-interfaces other | 0 |
| Supply voltage DC | 28.8 V |
| Degree of protection (IP), front side | IP65 |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Built-in depth | 33 mm |
| With message system (incl. buffer and confirmation) | true |
| Radio standard GSM | false |
| Supporting protocol for PROFIsafe | false |
| With recipes | true |
| Number of HW-interfaces RS-485 | 0 |
| Radio standard Bluetooth | false |
| Process default value (input) possible | true |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces USB | 0 |
| Width of the front | 162 mm |
| Operating temperature | 50 °C |
| Radio standard UMTS | false |
| Useful project memory/user memory | 1000 kByte |
| Supply voltage DC | 19.2 V |
| Supporting protocol for EtherNet/IP | true |
| Number of buttons with LED | 0 |
| Rail mounting possible | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for SERCOS | false |
| Number of pixels, vertical | 272 |
| With numeric keyboard | true |
| Number of pixels, horizontal | 480 |
| Colour display | true |
| Number of online languages | 5 |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces serial TTY | 0 |
