Material ID: 6BK1622-0AA00-0AA0

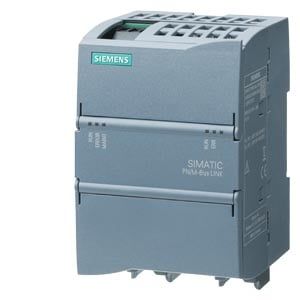

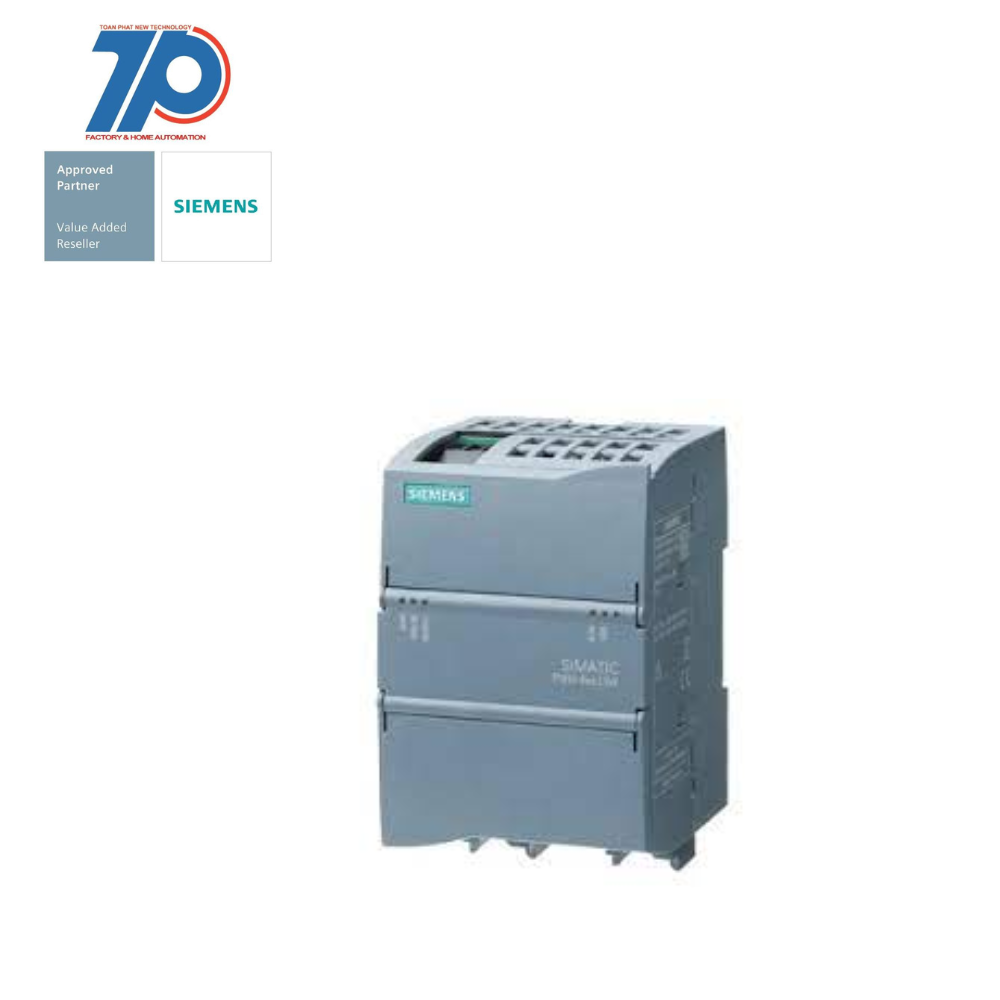

- SIMATIC PN/M-Bus LINK coupling module for Profinet to M-Bus Fieldbus, M-Bus Master, IP20
- Seamless transition between PROFINET and an M-Bus network
- Easily connect BACnet devices to a PROFINET network
- Enable communication with SIMATIC components
- Options for easy implementation of modern production concepts
- Options for existing plants and machines
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard GPRS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for other bus systems | true |

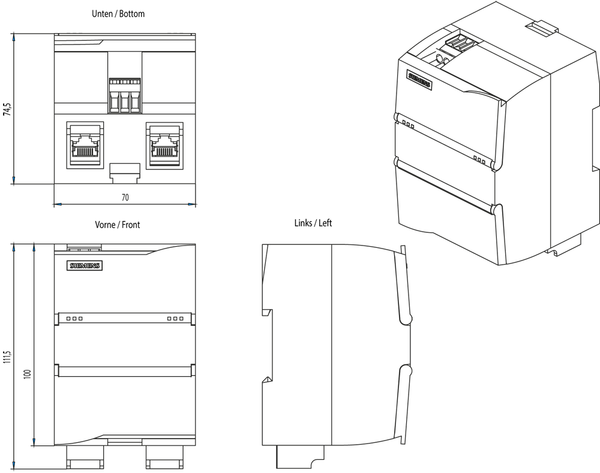

| Height | 112 mm |
| With optical interface | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for ASI | false |
| Width | 70 mm |
| IO link master | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for SUCONET | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for LON | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Supporting protocol for EtherNet/IP | false |
| Redundancy | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for KNX | false |
| With potential separation | true |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Type of data transmission | Serial |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for CAN | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET IO | true |
| Explosion safety category for dust | None |
| Radio standard UMTS | false |
| Supporting protocol for EtherCAT | false |
| Number of HW-interfaces other | 1 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Depth | 75 mm |
| Supporting protocol for Modbus | false |
| Number of HW-interfaces industrial Ethernet | 2 |
