Material ID: 6BK1700-0BA20-0AA0

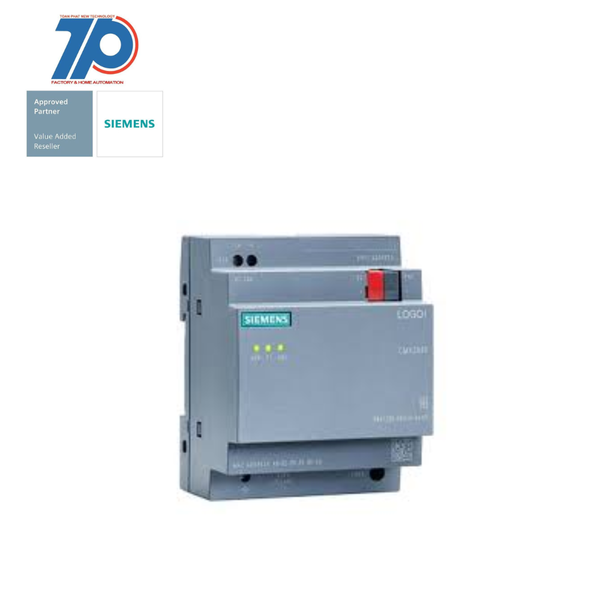

- LOGO! CMK2000 Communication module for integrating the LOGO! 8 "in the building system bus KNX;"
- Connection 24 V DC 0.04A
- 1 RJ45 port for Ethernet
- 50 communication objects
- Time-of-day synchronization
- Configuration/diagnostics via web interface
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for AS-Interface Safety at Work | false |
| Height | 90 mm |
| With optical interface | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for ASI | false |
| Radio standard UMTS | false |
| Supporting protocol for EtherCAT | false |
| Suitable for safety functions | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for CAN | false |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Width | 71.5 mm |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Foundation Fieldbus | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for KNX | true |
| Depth | 58.5 mm |
| Number of HW-interfaces other | 1 |
| Appendant operation agent (Ex ia) | false |
| Type of data transmission | Serial |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for PROFINET CBA | false |
| Radio standard GSM | false |
| Supporting protocol for EtherNet/IP | false |
| Redundancy | false |
| With potential separation | true |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Supporting protocol for TCP/IP | true |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Explosion safety category for dust | None |
| Supporting protocol for LON | false |
