Material ID: 6DD1640-0AH1

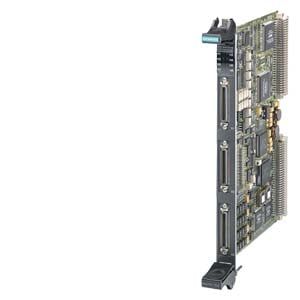

SIMATIC TDC Signal module SM500 DI/DQ
The SIMATIC TDC Signal module SM500 DI/DQ is a versatile module with 16 DA/16 DE and 6 LEDs. It is designed for use in large plants and is part of the synchronization-capable multiprocessor multi-rack control system SIMATIC TDC (Technology and Drive Control).
This signal module can be easily configured in CFC/SFC using the block library D7-SYS, allowing for seamless integration into existing systems.
Technical Features:
Commercial Benefits:
The SIMATIC TDC Signal module SM500 DI/DQ offers the following commercial benefits:
- 16 DA/16 DE
- 6 LEDs
- Synchronization-capable
- Multiprocessor multi-rack control system
- Configurable in CFC/SFC
- Block library D7-SYS
- Enhanced control and monitoring capabilities
- Improved efficiency and productivity
- Seamless integration into existing systems
- Reliable and robust performance
- Flexible configuration options
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Width | 20 mm |
| Depth | 160 mm |
| Number of digital inputs | 16 |
| Permitted voltage at input | 33 V |
| Redundancy | false |
| Voltage type (supply voltage) | DC |
| Type of output voltage | DC |
| Permitted voltage at output | 28.8 V |
| Appendant operation agent (Ex ia) | false |
| Input current at signal 1 | 3 mA |
| Height | 233 mm |
| Output current | 0.05 A |
| Permitted voltage at input | -1 V |
| Digital outputs configurable | true |
| Digital inputs configurable | true |
| Suitable for safety functions | false |
| Appendant operation agent (Ex ib) | false |
| Number of digital outputs | 16 |
| Type of voltage (input voltage) | DC |
| Permitted voltage at output | 0 V |
| Time delay at signal change | 0.1 ms |
