Material ID: 6DD1660-0BH1

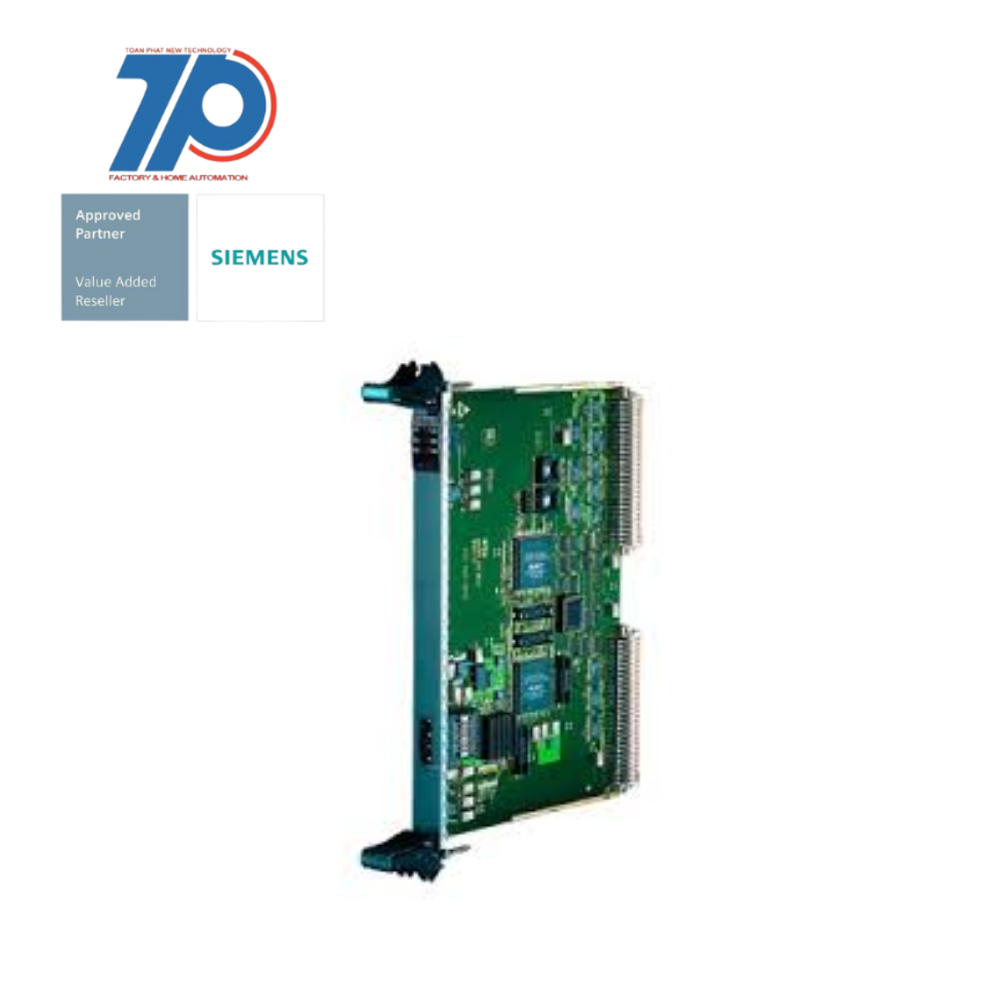

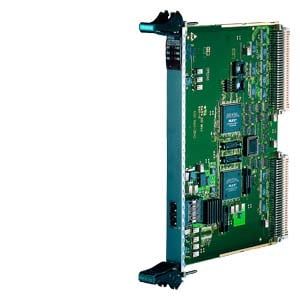

SIMATIC TDC Communications Module CP52A0
The SIMATIC TDC communications module CP52A0 is an access module for global data memory (GDM) in the synchronization-capable multiprocessor multi-rack control system SIMATIC TDC (Technology and Drive Control). It is designed for use in large plants and can be easily configured in CFC/SFC with the block library D7-SYS.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for SafetyBUS p | false |
| Number of HW-interfaces USB | 0 |
| Suitable for safety functions | false |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for PROFIBUS | false |
| Radio standard Bluetooth | false |
| Height | 233 mm |
| Supporting protocol for Data-Highway | false |
| Width | 20 mm |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS-Safety | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet Safety | false |
| With optical interface | true |
| Supporting protocol for PROFINET IO | false |
| Number of HW-interfaces parallel | 0 |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for Modbus | false |
| IO link master | false |
| Supporting protocol for TCP/IP | false |
| Radio standard GPRS | false |
| Radio standard WLAN 802.11 | false |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for LON | false |
| Number of HW-interfaces RS-232 | 0 |
| Supporting protocol for KNX | false |
| Number of HW-interfaces wireless | 0 |
| Radio standard UMTS | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Redundancy | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for CAN | false |
| Depth | 160 mm |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFIsafe | false |
| Appendant operation agent (Ex ia) | false |
