Material ID: 6DD1661-0AD1

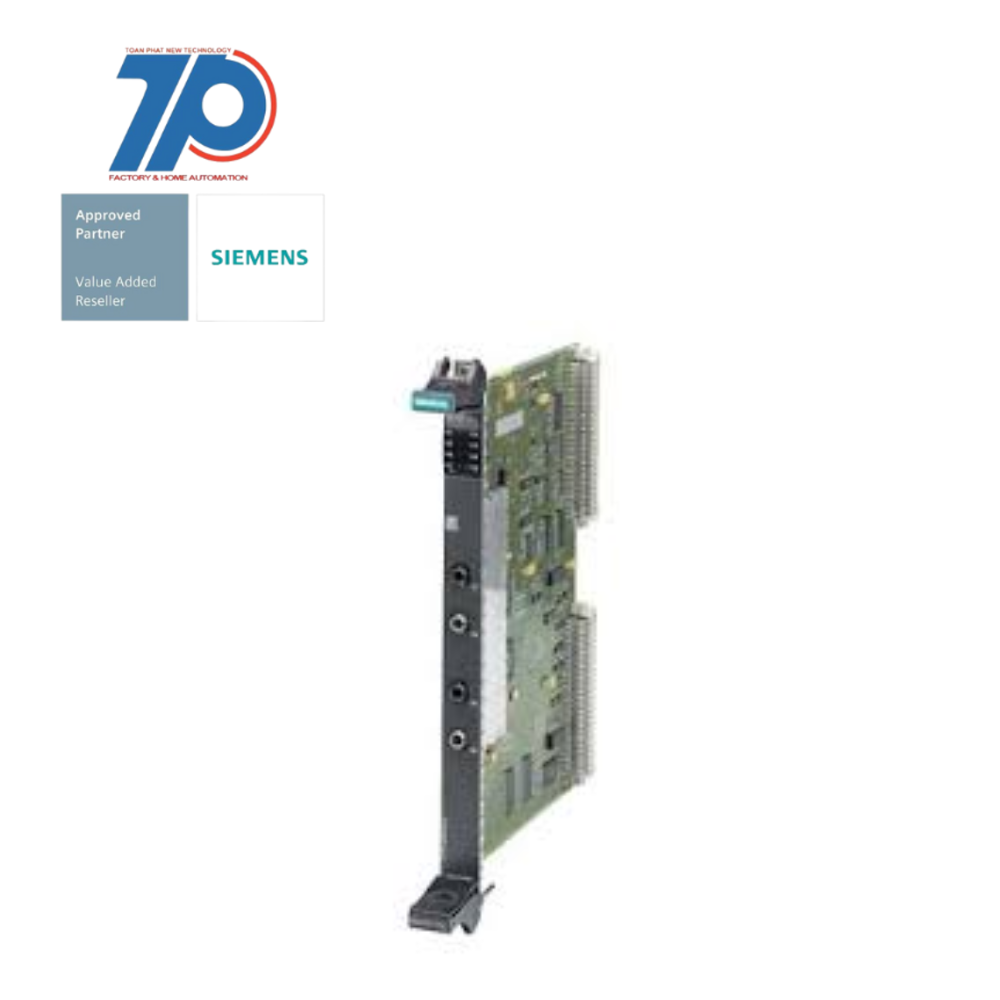

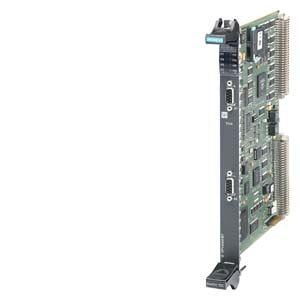

SIMATIC TDC Communications Module CP50M1
The SIMATIC TDC communications module CP50M1 is a powerful component designed for large plants. It is part of the synchronization-capable multiprocessor multi-rack control system SIMATIC TDC (Technology and Drive Control).
Technical Features:
Commercial Benefits:
The SIMATIC TDC communications module CP50M1 offers the following commercial benefits:
- 8 MB buffer module
- Supports up to 1 MPI
- Supports up to 2 PROFIBUS DP interfaces
- Configurable in CFC/SFC
- Block library D7-SYS
- Enhanced communication capabilities
- Increased data processing speed
- Improved control system performance
- Flexible configuration options
- Efficient utilization of resources
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces RS-232 | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Modbus | false |
| Radio standard GSM | false |
| Supporting protocol for EtherCAT | false |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | false |
| Width | 20 mm |
| Number of HW-interfaces RS-485 | 2 |
| Supporting protocol for PROFIBUS | true |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Suitable for safety functions | false |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for ASI | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard UMTS | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for SafetyBUS p | false |
| Height | 233 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SERCOS | false |
| Radio standard WLAN 802.11 | false |
| Number of HW-interfaces USB | 0 |
| Appendant operation agent (Ex ia) | false |
| Depth | 160 mm |
| Supporting protocol for DeviceNet | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Number of HW-interfaces RS-422 | 0 |
| With optical interface | false |
| Supporting protocol for LON | false |
| Supporting protocol for other bus systems | true |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for KNX | false |
| Redundancy | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Number of HW-interfaces serial TTY | 0 |
| IO link master | false |
