Material ID: 6DD1682-0CH3

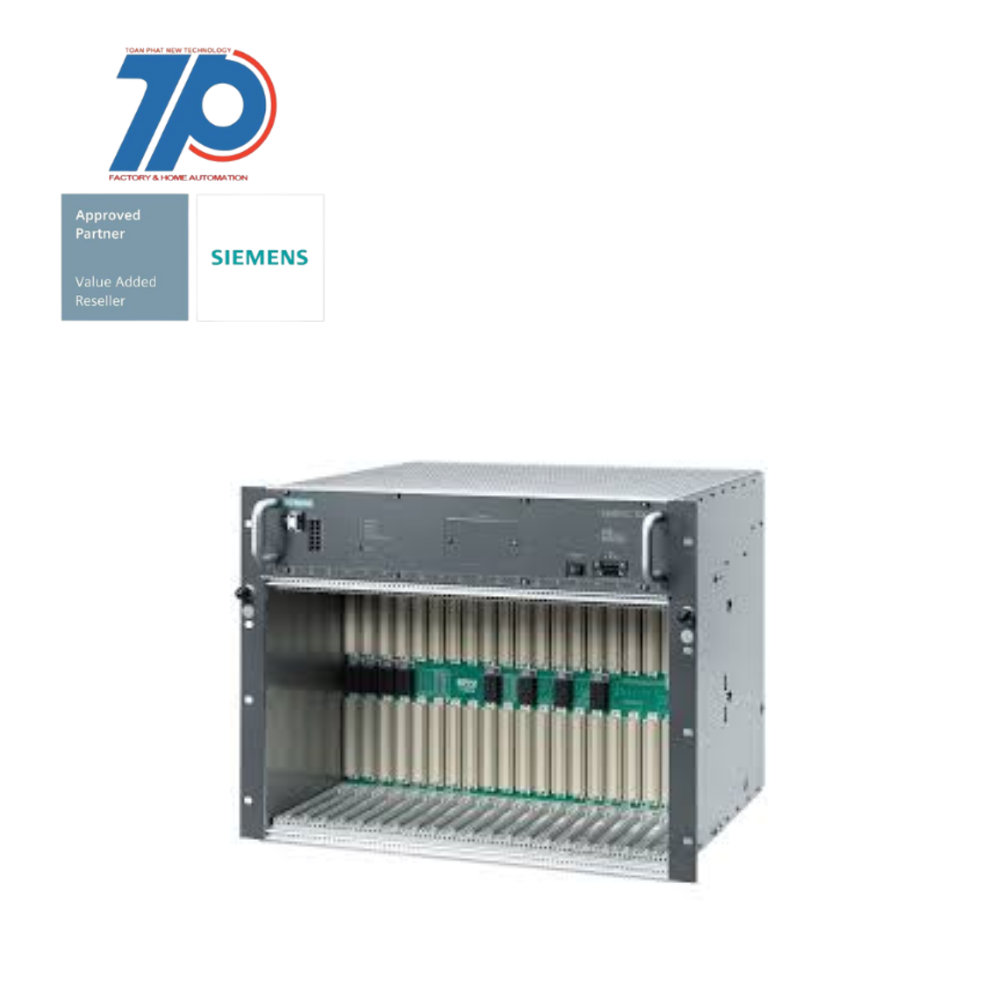

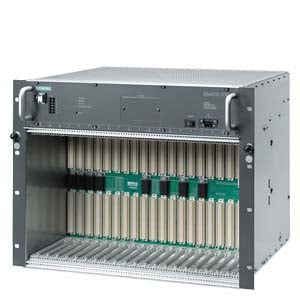

SIMATIC TDC

The SIMATIC TDC is a synchronization-capable multiprocessor multi-rack control system designed for large plants. It features a Rack UR6021 with 21 slots and supports the VMEBUS. The system includes 8 P0 slots and replaceable fans for easy maintenance.

Technical Features:

Commercial Benefits:

    • 21 slots
    • VMEBUS support
    • 8 P0 slots
    • Replaceable fans
    • Suitable for GDM 5-tier plug-in connector
    • Configurable in CFC/SFC with the block library D7-SYS
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Rail mounting possiblefalse
Rack-assembly possiblefalse
Front built-in possiblefalse
Suitable for safety functionsfalse
Width482.599999999 mm
With integrated power supplytrue
Type of voltage (input voltage)AC/DC
Depth343 mm
Wall mounting/direct mountingtrue
Number of slots21
Appendant operation agent (Ex ib)false
Redundancyfalse
Height354.9 mm
Input voltage DC93.5 V
Input voltage DC253 V
Appendant operation agent (Ex ia)false
Type of output voltageDC
