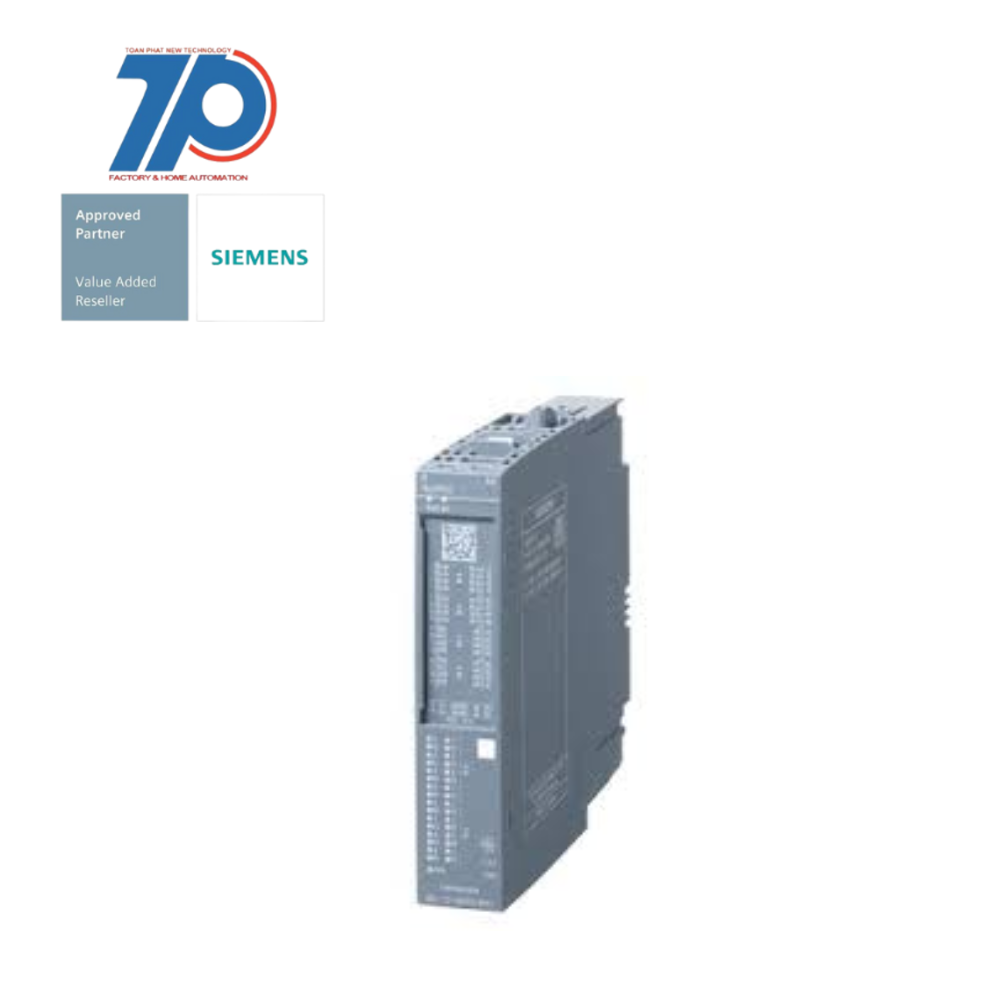

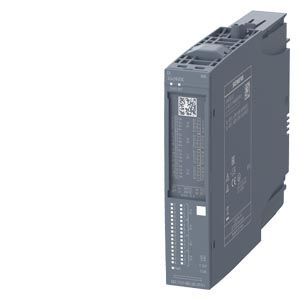

Material ID: 6DL1131-6BL00-0PH1
SIMATIC ET 200SP HA
The SIMATIC ET 200SP HA is a digital input module, specifically the DI 32X24VDC HA variant. It is designed to be suitable for terminal block H1, P0, with a color code of CC00. The module features channel diagnostics for enhanced monitoring capabilities.
Technical Features
Commercial Benefits
- Compact and space-saving design
- Approved for degree of protection IP20
- Can be installed in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Supports multiple Ethernet protocols
- Standardized identification system with equipment labeling plates
- Color-coded connector assignments
- Simple commissioning process
- Maximum flexibility with easy module replacement
- Optimum protocol selection for application flexibility
- Simplified installation and service with standardized identification system
- Future-proof investment with innovative and long-life automation products
- Consistent data availability
- Flexible use cases
- Versatile integration options
- Optimum performance of ET 200 products
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for other bus systems | false |
| Radio standard GPRS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for CAN | false |
| Height | 115 mm |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS | false |
| Wall mounting/direct mounting | false |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for KNX | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Foundation Fieldbus | false |
| Width | 22.5 mm |
| Front built-in possible | true |
| With optical interface | false |
| Permitted voltage at input | -30 V |
| Supporting protocol for LON | false |
| Input current at signal 1 | 2.5 mA |
| Rail mounting possible | true |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces RS-232 | 0 |
| IO link master | false |
| Rack-assembly possible | true |
| Supply voltage DC | 19.2 V |
| Supporting protocol for DeviceNet Safety | false |
| Depth | 138 mm |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Permitted voltage at input | 30 V |
| Number of digital outputs | 0 |
| Degree of protection (IP) | IP20 |
| Supporting protocol for Modbus | false |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces other | 0 |
| Supply voltage DC | 28.8 V |
| Supporting protocol for ASI | false |
| Number of digital inputs | 32 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Digital inputs configurable | true |
| Number of HW-interfaces RS-422 | 0 |
| System accessory | true |
| Radio standard GSM | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Type of voltage (input voltage) | DC |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard UMTS | false |
| Number of HW-interfaces wireless | 0 |
