Material ID: 6DL1131-6GF00-0PK0

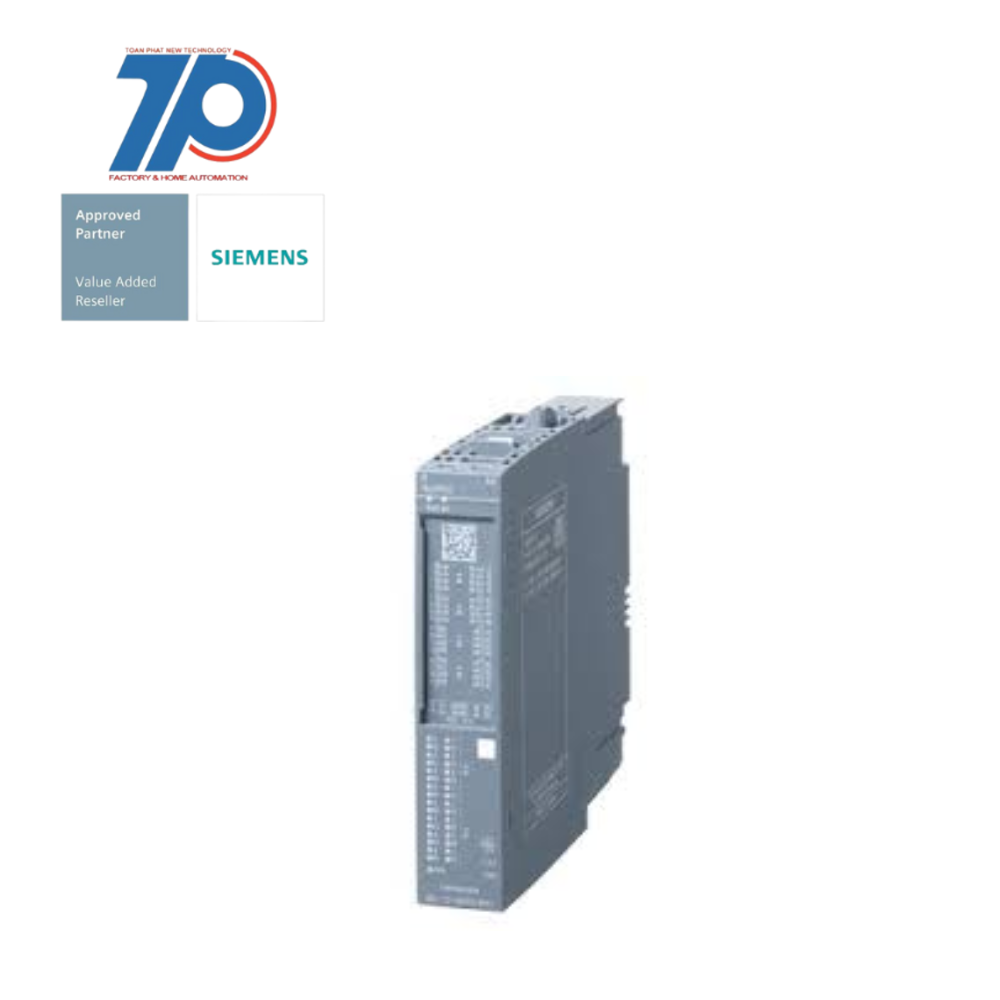

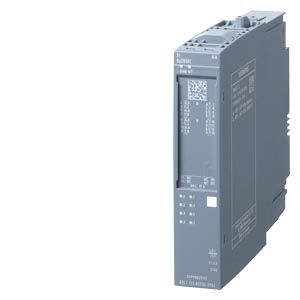

SIMATIC ET 200SP HA

Technical Features:

Commercial Benefits:

    • Digital input module
    • DI 8X230VAC HA
    • Suitable for terminal block K0
    • Color code CC41
    • Module diagnostics
    • Approved for degree of protection IP20
    • Installation in a compact control box
    • Multi hot swapping feature for quick and simple module replacement
    • Wide range of different and fast communication methods
    • Integrated MultiFieldbus interface module IM155-6MF
    • Supports multiple Ethernet protocols
    • Space-saving design for easy commissioning
    • Future-proof investment with innovative and long-life automation products
    • Standardized identification system based on equipment labeling plates
    • Color-coded connector assignments for simplified installation and service
    • Consistent data availability
    • Flexible use cases
    • Versatile integration options
    • Optimum performance of ET 200 products
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Rail mounting possibletrue
Depth138 mm
Supporting protocol for EtherNet/IPfalse
Permitted voltage at input0 V
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces USB0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Supporting protocol for INTERBUS-Safetyfalse
Number of digital inputs8
Radio standard GSMfalse
Supply voltage AC 50 Hz264 V
Time delay at signal change1.5 ms
Supply voltage AC 60 Hz264 V
Number of HW-interfaces serial TTY0
Permitted voltage at input264 V
Radio standard WLAN 802.11false
Number of HW-interfaces wireless0
Supporting protocol for other bus systemsfalse
Supporting protocol for Modbusfalse
Radio standard UMTSfalse
Supporting protocol for DeviceNet Safetyfalse
Front built-in possibletrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for CANfalse
Number of HW-interfaces parallel0
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Height115 mm
With optical interfacefalse
Radio standard GPRSfalse
Supply voltage AC 60 Hz85 V
Supporting protocol for SERCOSfalse
Width22.5 mm
Supply voltage AC 50 Hz85 V
Rack-assembly possibletrue
Supporting protocol for KNXfalse
Supporting protocol for DeviceNetfalse
System accessorytrue
Input current at signal 110.8 mA
Number of HW-interfaces industrial Ethernet0
Supporting protocol for Data-Highwayfalse
Degree of protection (IP)IP20
Supporting protocol for LONfalse
Number of HW-interfaces other0
Wall mounting/direct mountingfalse
Supporting protocol for SUCONETfalse
Time delay at signal change8 ms
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-2320
Number of digital outputs0
Digital inputs configurabletrue
Supporting protocol for PROFINET CBAfalse
IO link masterfalse
