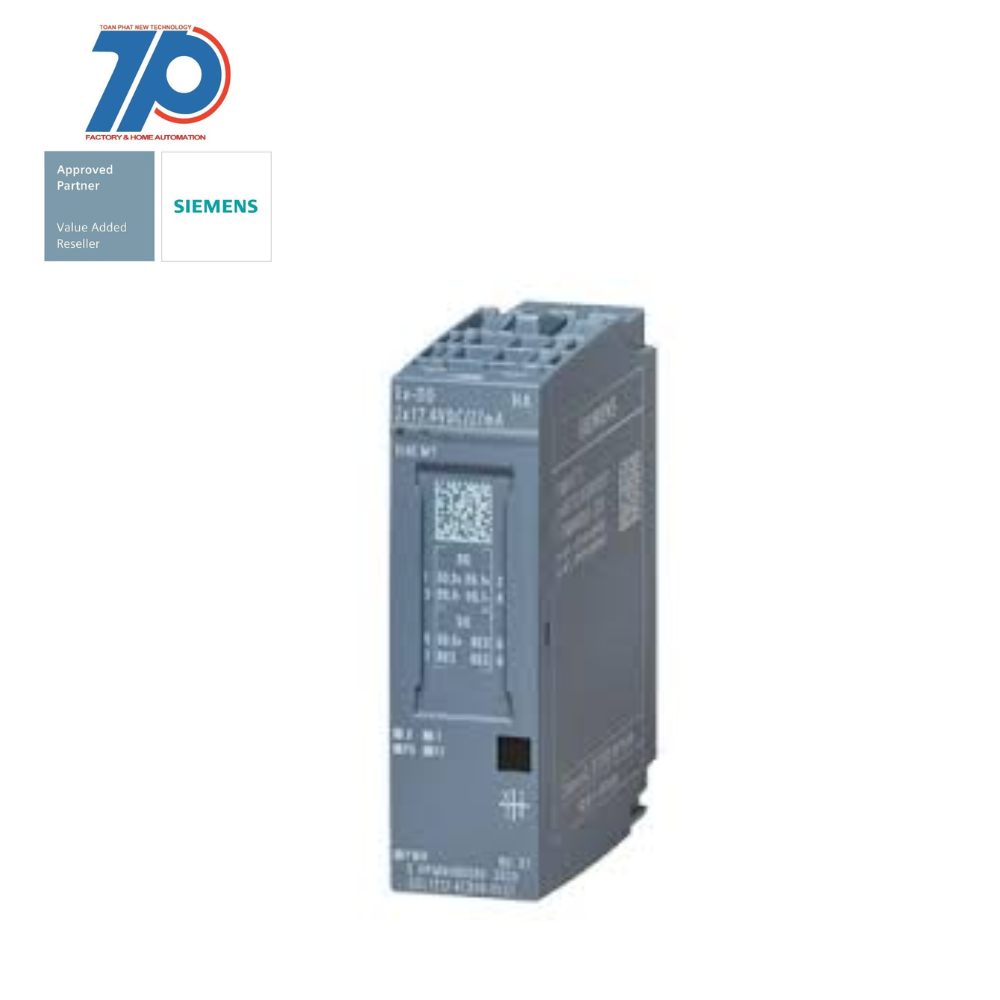

Material ID: 6DL1132-6CB00-0HX1
- SIMATIC ET 200SP HA, ET 200SP, digital ex-i output module, Ex-DQ 2x17,4VDC/27mA suitable for BaseUnit type X1, channel diagnostics
- Approved for degree of protection IP20 and for installation in a compact control box
- Space-saving design for simple commissioning
- Multi hot swapping feature allows for quick and easy module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments for simplified installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Short-circuit protection, outputs available | true |
| Output current | 0.027 A |
| Radio standard WLAN 802.11 | false |
| Height | 73 mm |
| Front built-in possible | true |
| Supporting protocol for Modbus | false |
| Wall mounting/direct mounting | false |
| Radio standard GPRS | false |
| Depth | 58 mm |
| Number of digital outputs | 2 |
| IO link master | false |
| System accessory | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet | false |
| Radio standard Bluetooth | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Rack-assembly possible | true |
| Rail mounting possible | true |
| Supporting protocol for SERCOS | false |
| Appendant operation agent (Ex ib) | true |
| Supporting protocol for KNX | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for other bus systems | false |
| Digital outputs configurable | true |
| Width | 20 mm |
| With optical interface | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard UMTS | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ia) | true |
| Supporting protocol for LON | false |
