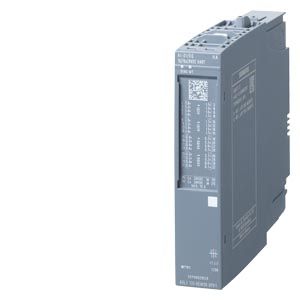

Material ID: 6DL1133-6EW00-0PH1

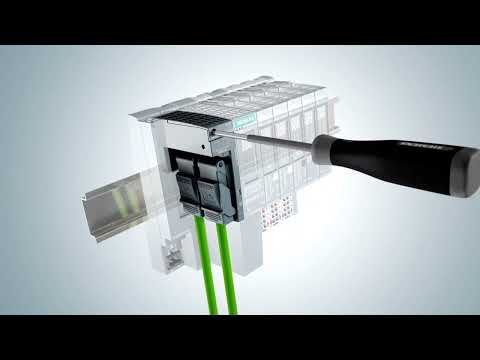

SIMATIC ET 200SP HA

A configurable I/O module, AI-DI16/DQ16X24VDC HART, suitable for terminal block H1, M1, color code CC00, with channel diagnostics. It offers 16-bit resolution with an accuracy of +/-0.1%.

Technical Features:

Commercial Benefits:

    • Space-saving design
    • Approved for degree of protection IP20
    • Installation in a compact control box
    • Multi hot swapping feature for easy module replacement
    • Wide range of communication methods
    • Integrated MultiFieldbus interface module IM155-6MF
    • Supports multiple Ethernet protocols
    • Standardized identification system based on equipment labeling plates
    • Color-coded connector assignments
    • Integration of innovative and long-life automation products
    • Simple commissioning
    • Maximum flexibility
    • Simplified installation and service
    • Future-proof investment
    • Consistent data availability
    • Flexible use cases
    • Versatile integration options
    • Optimum performance of ET 200 products
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Analogue inputs configurabletrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Front built-in possibletrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Supporting protocol for SERCOSfalse
Supporting protocol for SUCONETfalse
Supply voltage DC19.2 V
Supporting protocol for Modbusfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for KNXfalse
Supporting protocol for INTERBUSfalse
Input signal, configurabletrue
Number of HW-interfaces RS-4850
Radio standard GPRSfalse
Number of HW-interfaces parallel0
Resolution of the analogue inputs16 Bit
Supporting protocol for AS-Interface Safety at Workfalse
Rail mounting possibletrue
Number of HW-interfaces wireless0
Height115 mm
Depth138 mm
Width22.5 mm
Supporting protocol for LONfalse
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
IO link masterfalse
Supporting protocol for CANfalse
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Radio standard GSMfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces USB0
Supply voltage DC28.8 V
Supporting protocol for DeviceNet Safetyfalse
Rack-assembly possibletrue
Wall mounting/direct mountingfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Number of analogue outputs0
Supporting protocol for Data-Highwayfalse
Radio standard WLAN 802.11false
Degree of protection (IP)IP20
Supporting protocol for ASIfalse
Radio standard UMTSfalse
Radio standard Bluetoothfalse
