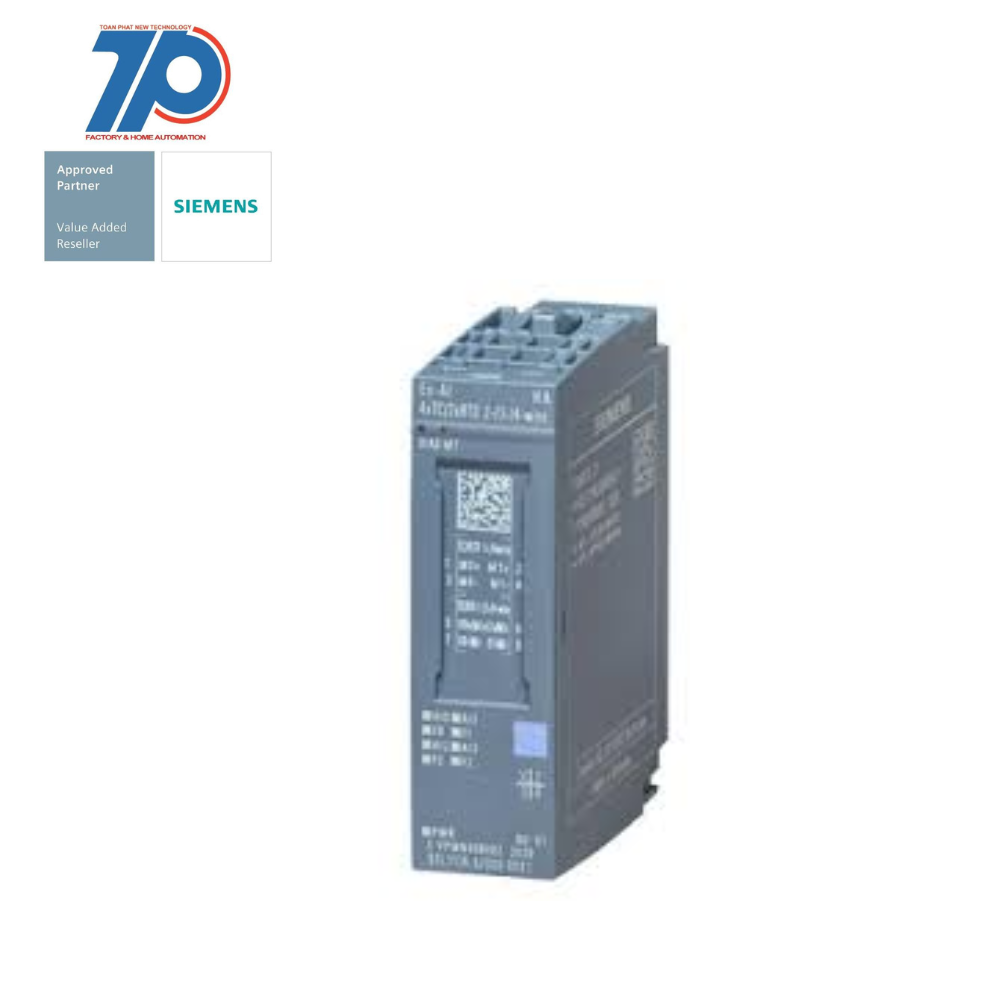

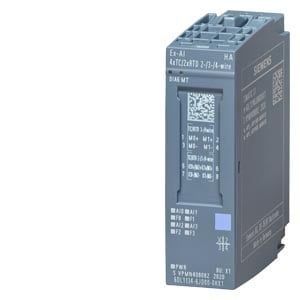

Material ID: 6DL1134-6JD00-0HX1
- SIMATIC ET 200SP HA, ET 200SP, analog ex-i input module, Ex-AI 4xTC/2xRTD 2-/3-/4-wire, suitable for BaseUnit type X1, channel diagnostics, 16bit, +/-0.05%
- Space-saving design for easy commissioning
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Consistent data availability
- Flexible use cases
- Versatile integration options
- Optimum performance of ET 200 products
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for SafetyBUS p | false |
| IO link master | false |
| Input, resistance thermometer | true |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet Safety | false |
| Rail mounting possible | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for EtherNet/IP | false |
| Wall mounting/direct mounting | false |
| Radio standard GPRS | false |
| Supporting protocol for LON | false |
| Input, thermocouple | true |
| Radio standard Bluetooth | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Appendant operation agent (Ex ib) | true |
| Input, resistor | true |
| Width | 20 mm |
| Supporting protocol for SUCONET | false |
| Analogue inputs configurable | true |
| Radio standard UMTS | false |
| Height | 73 mm |
| Front built-in possible | true |
| Input signal, configurable | true |
| Supporting protocol for AS-Interface Safety at Work | false |
| Depth | 58 mm |
| Input, voltage | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for DeviceNet | false |
| Appendant operation agent (Ex ia) | true |
| Supporting protocol for INTERBUS | false |
| Resolution of the analogue inputs | 16 Bit |
| Radio standard GSM | false |
| Rack-assembly possible | true |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for KNX | false |
| Degree of protection (IP) | IP20 |
