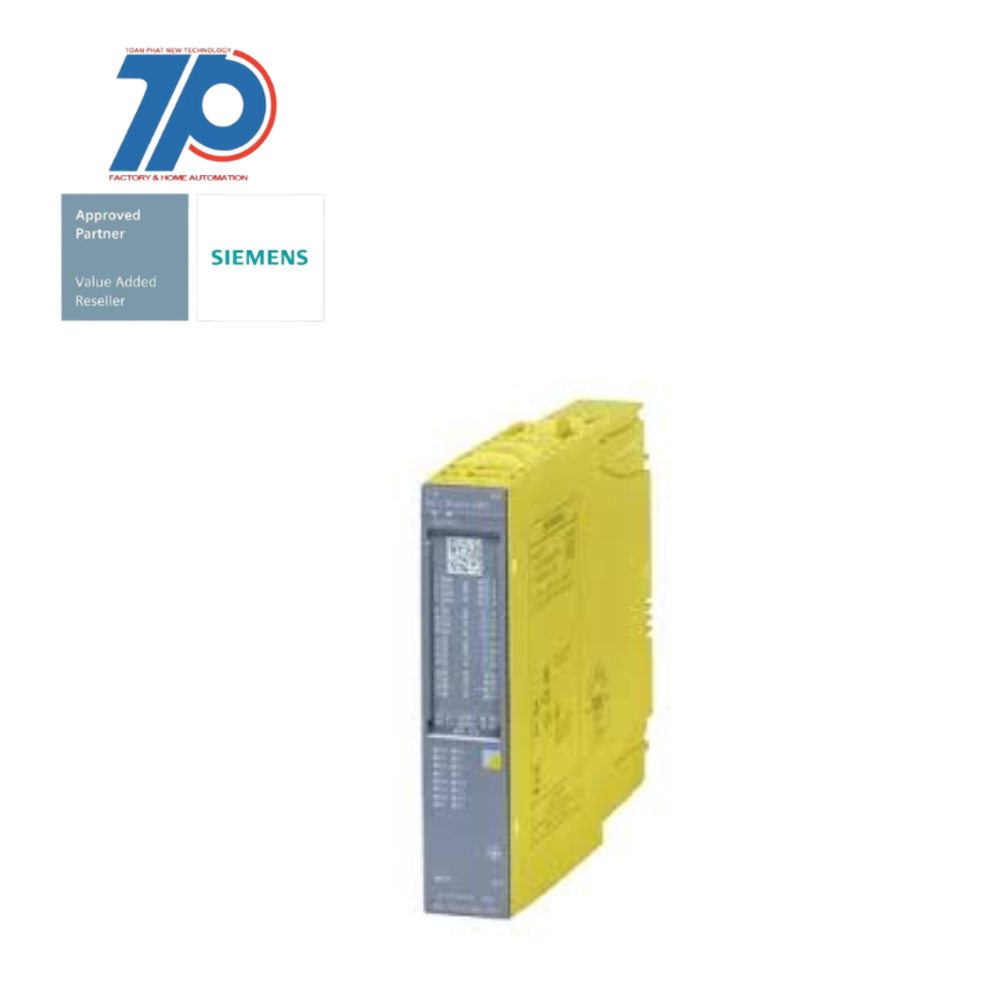

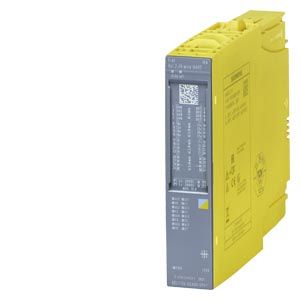

Material ID: 6DL1136-6AA00-0PH1

SIMATIC ET 200SP HA

Analog input module, safety-oriented, F-AI 8xI 2-wire/4-wire HART HA, 16-bit, 2-wire/4-wire, SIL3 (IEC 61508), up to PL e (ISO 13849-1), suitable for terminal block H1, F1, color code CC00, channel diagnostics

Product Overview

The SIMATIC ET 200SP HA is a multifunctional and distributed I/O system designed by Siemens. It features a space-saving design, making it easy to commission. The module is approved for degree of protection IP20 and can be installed in a compact control box.

Key Features

Commercial Benefits

    • Multi hot swapping feature allows for quick and simple module replacement
    • Wide range of different and fast communication methods
    • Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
    • Standardized identification system based on equipment labeling plates and color-coded connector assignments for simplified installation and service
    • Future-proof investment with integration of innovative and long-life automation products
    • Consistent data availability
    • Flexible use cases
    • Versatile integration options
    • Optimum performance of ET 200 products
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for SERCOSfalse
Number of HW-interfaces serial TTY0
Number of analogue outputs0
Supporting protocol for ASIfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces wireless0
IO link masterfalse
Front built-in possibletrue
Height115 mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIsafetrue
Wall mounting/direct mountingfalse
Supply voltage DC28.8 V
Degree of protection (IP)IP20
Supporting protocol for EtherNet/IPfalse
Depth138 mm
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces parallel0
Supporting protocol for KNXfalse
Supporting protocol for Modbusfalse
Rail mounting possibletrue
Radio standard GPRSfalse
Number of HW-interfaces RS-2320
Supporting protocol for Foundation Fieldbusfalse
Suitable for safety functionstrue
Supply voltage DC19.2 V
Number of HW-interfaces RS-4850
Rack-assembly possibletrue
Input, voltagefalse
System accessorytrue
Supporting protocol for SafetyBUS pfalse
Radio standard WLAN 802.11false
Radio standard Bluetoothfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Supporting protocol for LONfalse
Input, currenttrue
Supporting protocol for INTERBUSfalse
Input signal, configurabletrue
Supporting protocol for DeviceNetfalse
Radio standard GSMfalse
Resolution of the analogue inputs16 Bit
Number of HW-interfaces other0
Supporting protocol for CANfalse
Analogue inputs configurabletrue
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFINET CBAfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for Data-Highwayfalse
Width22.5 mm
