Material ID: 6DL1136-6DA00-0PH1

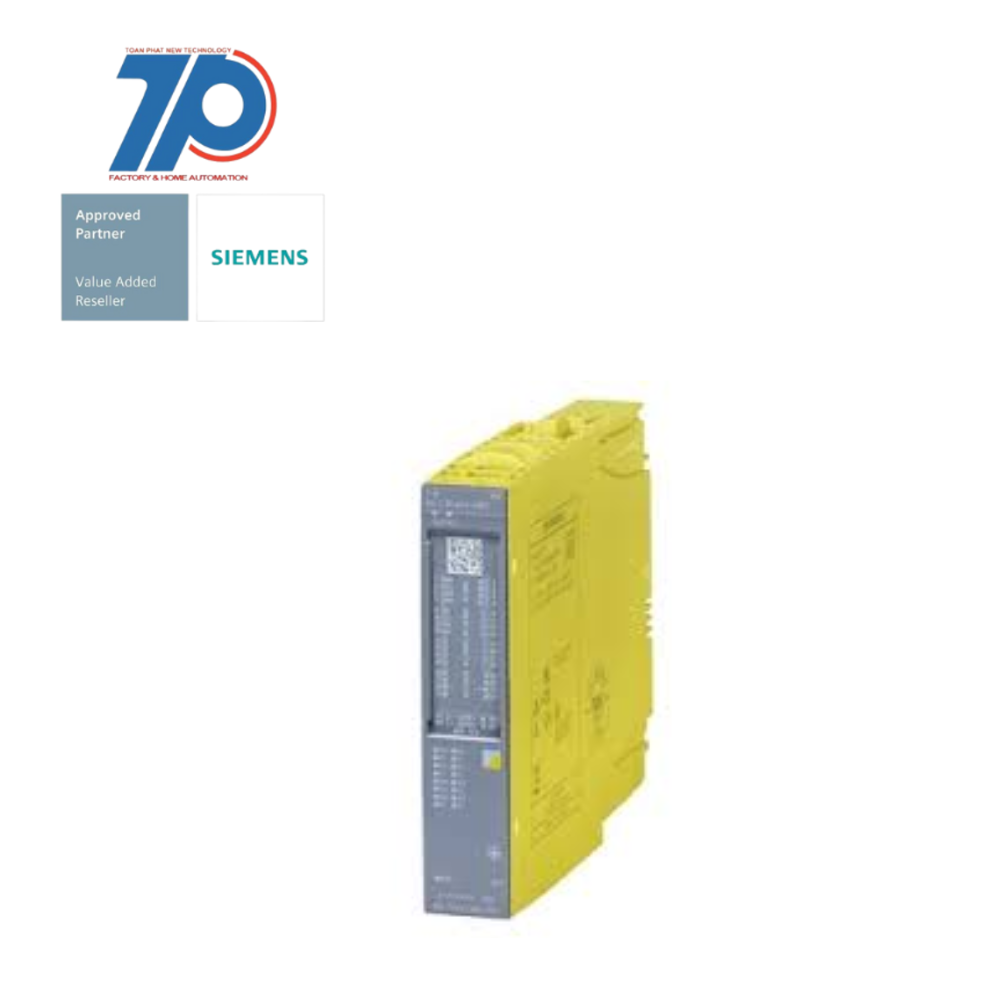

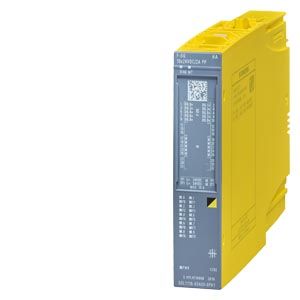

SIMATIC ET 200SP HA

Digital output module, safety-oriented F-DQ 10X24VDC/2A HA, SIL3 (IEC 61508), up to PL e (ISO 13849-1) suitable for terminal block H1, M1, color code CC02, channel diagnostics

Technical Features

Commercial Benefits

With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system that combines technical excellence with commercial advantages. The compact design allows for easy installation in a control box, while the multi hot swapping feature ensures quick and simple module replacement. The integrated MultiFieldbus interface module IM155-6MF provides flexibility in communication protocols. The standardized identification system and color-coded connector assignments simplify installation and service. Siemens guarantees a future-proof investment with their innovative and long-life automation products. Experience consistent data availability, flexible use cases, and versatile integration options for optimum performance with ET 200 products.

    • Approved for degree of protection IP20
    • Compact design for installation in a control box
    • Multi hot swapping feature for easy module replacement
    • Integrated MultiFieldbus interface module IM155-6MF for flexible communication
    • Standardized identification system with equipment labeling plates and color-coded connector assignments
    • Simple commissioning due to space-saving design
    • Wide range of communication methods
    • Simplified installation and service
    • Future-proof investment with innovative and long-life automation products
    • Consistent data availability, flexible use cases, and versatile integration options for optimum performance
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET IOtrue
Supporting protocol for LONfalse
Depth138 mm
Supporting protocol for SERCOSfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces other0
Supporting protocol for ASIfalse
Radio standard GSMfalse
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces RS-4850
Radio standard Bluetoothfalse
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-2320
Digital outputs configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse
Number of digital inputs0
Radio standard GPRSfalse
With optical interfacefalse
Supporting protocol for SUCONETfalse
Supporting protocol for KNXfalse
Number of HW-interfaces USB0
Short-circuit protection, outputs availabletrue
Suitable for safety functionstrue
Supporting protocol for PROFIsafetrue
Number of digital outputs10
Supporting protocol for EtherNet/IPfalse
Height115 mm
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNetfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Modbusfalse
System accessorytrue
Output current2 A
Permitted voltage at output28.8 V
Permitted voltage at output0 V
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Radio standard UMTSfalse
Number of HW-interfaces serial TTY0
IO link masterfalse
Number of HW-interfaces wireless0
Supply voltage DC19.2 V
Radio standard WLAN 802.11false
Width22.5 mm
Supply voltage DC28.8 V
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for CANfalse
Supporting protocol for Foundation Fieldbusfalse
