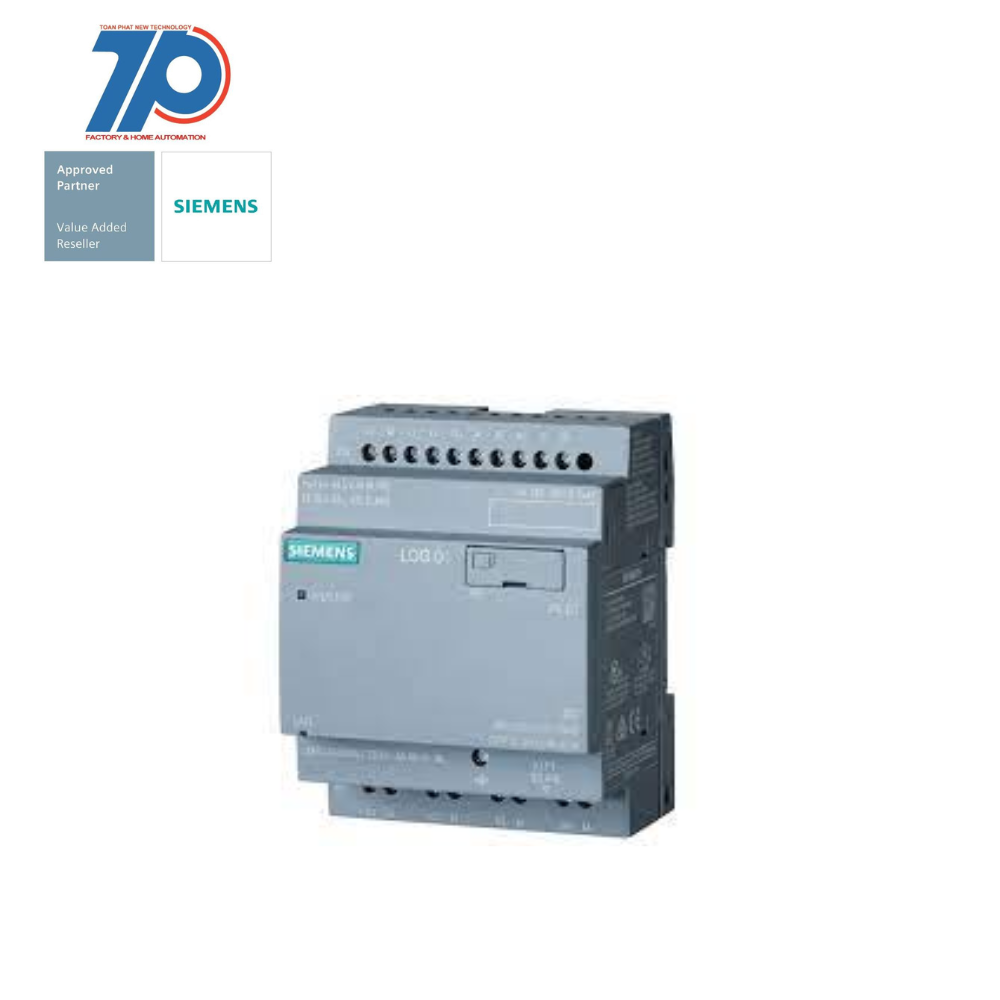

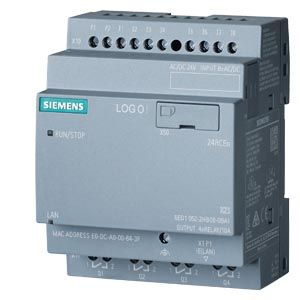

6ED1052-2HB08-0BA1

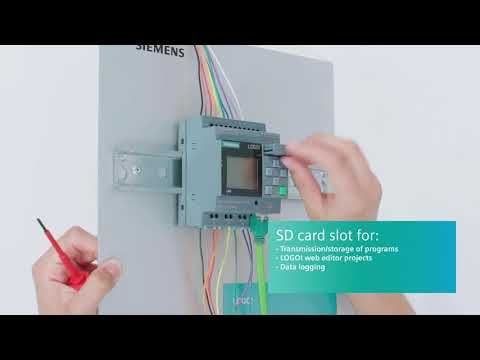

• LOGO! 24RCEO (AC), logic module, PS/I/O: DC 24V/24V AC/relay, 8 DI/4 DQ, without display, memory 400 blocks, modular expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units
• The LOGO! 8 basic units with their 8 digital inputs and 4 digital outputs and an installation width of just 72 mm integrate a host of familiar functions (current impulse relay, automatic staircase timer, contactor relay, time relay, etc.) which can be combined with one another in many different ways.
• Switching programs can be created and simulated easily on the PC.
• Depending on the integrated Ethernet interface, communication between as many as nine LOGO! 8 modules or SIMATIC S7 systems is possible.
• The web server is also integrated and can be used to monitor and control connected loads over WLAN or Internet.
• Users can design web pages themselves, even without knowledge of HTML.
• GSM or GPS communication as well as integration in KNX building management systems is possible using additional modules.
• LOGO! 8 basic units are available with and without displays for different input voltages as well as with transistor or relay outputs (up to 10 A rating).
• Can be expanded with additional modules for up to 24 DI / 20DQ (8 AI / 8 AQ).
• Cloud communication integrated.
• LOGO! 8 can also be expanded with an external text display for clearly visible messages in plain text.
• The color of the backlit display can be selected for optical highlighting.
• A variety of LOGO! power modules are also available for power supply.
