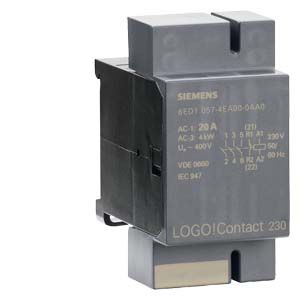

Material ID: 6ED1057-4EA00-0AA0
- LOGO! contact 230 Switching module for direct switching of resistive loads up to 20 A and motors up to 4 kW, 230 V AC, 3 NO contacts+1 NC EAN: 4025515050759
- The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very inpidual way.
- A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs.
- Ten different expansion modules are available for expanding with digital and analog inputs and outputs using different input voltages.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for Foundation Fieldbus | false |
| Expandable | false |
| Switching current | 20 A |
| Height | 72 mm |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for TCP/IP | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SERCOS | false |
| With optical interface | false |
| Supporting protocol for PROFIsafe | false |
| Depth | 55 mm |
| Radio standard UMTS | false |
| With time switch clock | true |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet Safety | false |
| Voltage type (supply voltage) | AC |
| Basic device | false |
| Supporting protocol for KNX | false |
| Radio standard Bluetooth | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS-Safety | false |
| Degree of protection (IP) | IP20 |
| IO link master | false |
| Front built-in possible | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for INTERBUS | false |
| Explosion safety category for dust | None |
| Supporting protocol for PROFINET IO | false |
| Supply voltage AC 60 Hz | 187 V |
| Supply voltage AC 50 Hz | 264 V |
| Expansion device | false |
| With display | false |
| With relay output | true |
| Supporting protocol for CAN | false |
| Rack-assembly possible | false |
| Supporting protocol for EtherCAT | false |
| Suitable for safety functions | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for other bus systems | false |
| Number of digital outputs | 4 |
| Supply voltage AC 50 Hz | 187 V |
| Supply voltage AC 60 Hz | 264 V |
| Redundancy | false |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Explosion safety category for gas | None |
| Wall mounting/direct mounting | true |
| Rail mounting possible | true |
| Supporting protocol for LON | false |
| Width | 36 mm |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
