Material ID: 6EP1331-1LD00

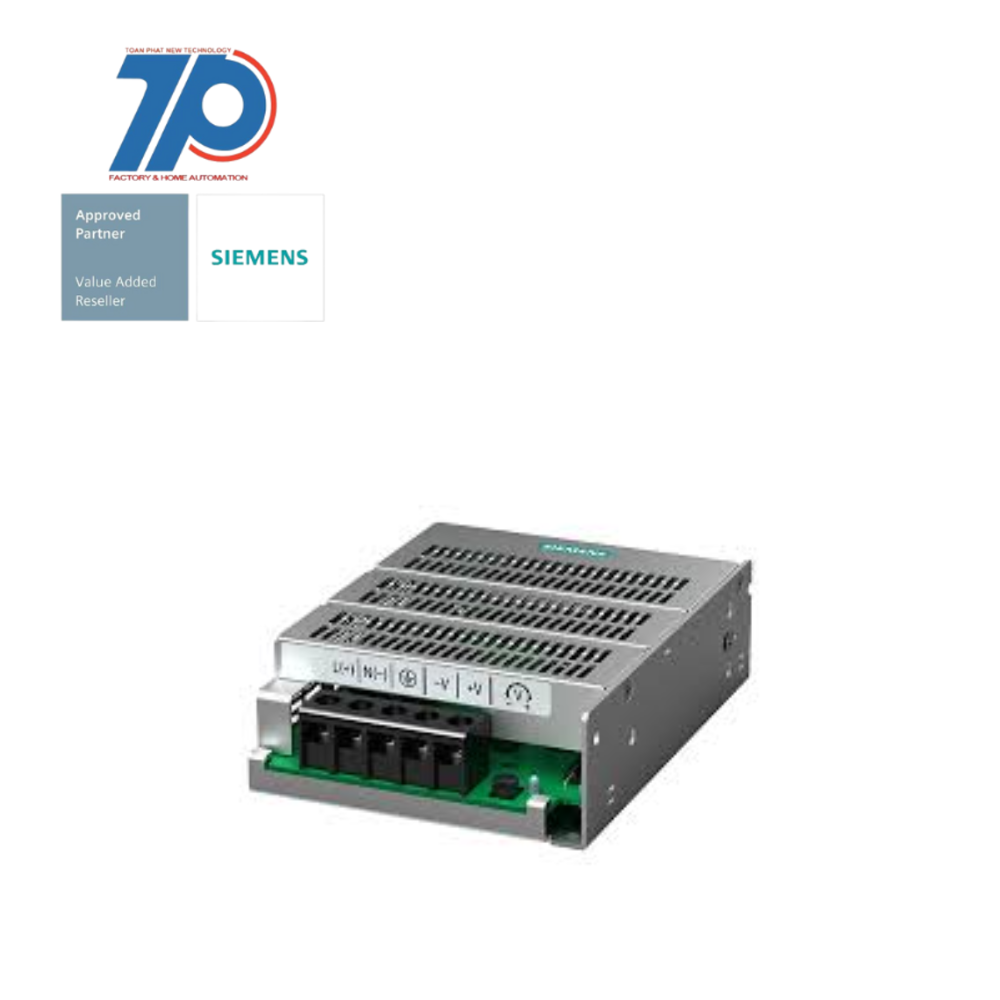

Spare Part: PSU100D 24 V/2.1 A Stabilized Power Supply

Technical Features:

The PSU100D single-phase power supplies are favorably priced power supplies designed to meet basic requirements. They are ideally suited for installation locations with restricted space or for mounting in control cabinets and enclosures without a mounting rail. Typical applications are devices, automatic machines, and automation solutions.

The rugged and flat aluminum enclosure in IP20 degree of protection can be screw-mounted directly on the wall in different mounting positions and is also optimized for applications with high temperatures and strict shock and vibration requirements.

Commercial Benefits:

    • Input: 100-240 V AC
    • Output: 24 V DC/2.1 A
    • Wide-range input enables connection to many different power networks around the world
    • Ensures a reliable 24 V supply even when voltage fluctuations are large
    • Reliable and efficient power supplies for every plant
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Width97 mm
Secondary voltage adjustabletrue
Rail mounting possiblefalse
Degree of protection (IP)IP20
Short-circuit-prooftrue
Wall mounting possibletrue
Type of electric connectionScrew connection
Stabilizedtrue
Max. output current 12.1 A
Direct mounting possibletrue
Nominal value output voltage 124 V
Rated supply voltage AC 50 Hz240 V
Depth38 mm
Voltage type (supply voltage)AC
Output voltage stabilizedtrue
Nominal value output current 12.1 A
Power output50 W
Rated supply voltage AC 60 Hz100 V
1st secondary output voltage24 V
Height128 mm
