Material ID: 6EP1332-1LD10Spare Part - PSU100D 24 V/4.1 A Stabilized Power Supply

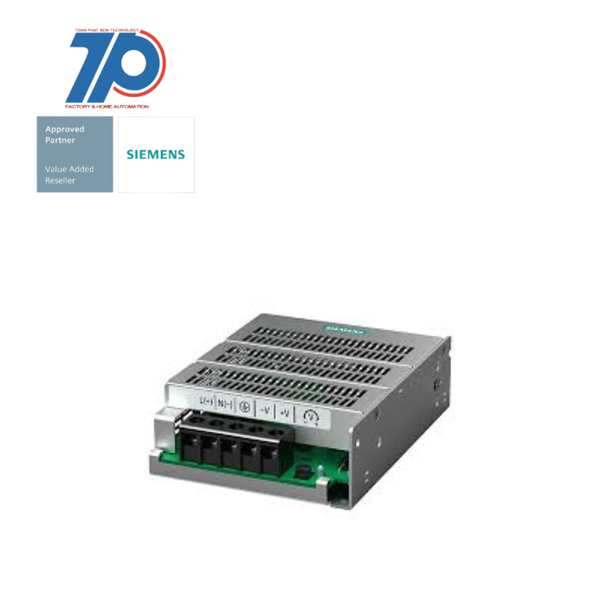

Spare Part - PSU100D 24 V/4.1 A Stabilized Power Supply

Technical Features

Commercial Benefits

Regardless of your industry or requirements, the PSU100D power supply from Siemens is a reliable and efficient solution that provides a stable 24 V supply. Its compact design and rugged enclosure make it ideal for installation in restricted spaces or control cabinets without a mounting rail. With its wide-range input, it can be connected to various power networks around the world. Whether you need to power devices, automatic machines, or automation solutions, Siemens has you covered with their range of power supplies.

    • Input: 100-240 V AC
    • Output: 24 V DC/4.1 A
    • Single-phase power supply
    • Compact design: Ideal for installation in restricted spaces or control cabinets without a mounting rail
    • Rugged and flat aluminum enclosure: Provides IP20 degree of protection
    • Mounting options: Can be screw-mounted directly on the wall in different positions
    • Optimized for high temperatures and strict shock and vibration requirements
    • Wide-range input: Enables connection to various power networks worldwide
    • Favorably priced: Designed to meet basic requirements
    • Wide range of applications: Suitable for devices, automatic machines, and automation solutions
    • Reliable and efficient: Ensures a stable 24 V supply even with large voltage fluctuations
    • Industry-specific: Siemens offers power supplies for every plant, regardless of the industry or requirements
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Direct mounting possibletrue
Output voltage stabilizedtrue
1st secondary output voltage24 V
Nominal value output current 14.1 A
Rated supply voltage AC 50 Hz240 V
Voltage type (supply voltage)AC
Power output100 W
Secondary voltage adjustabletrue
Type of electric connectionScrew connection
Nominal value output voltage 124 V
Short-circuit-prooftrue
Wall mounting possibletrue
Rail mounting possiblefalse
Rated supply voltage AC 60 Hz100 V
Depth38 mm
Max. output current 14.1 A
Height158 mm
Degree of protection (IP)IP20
Stabilizedtrue
Width97 mm
