Material ID: 6EP1336-3BA00SITOP modular 20 A stabilized power supply

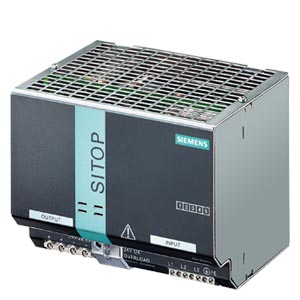

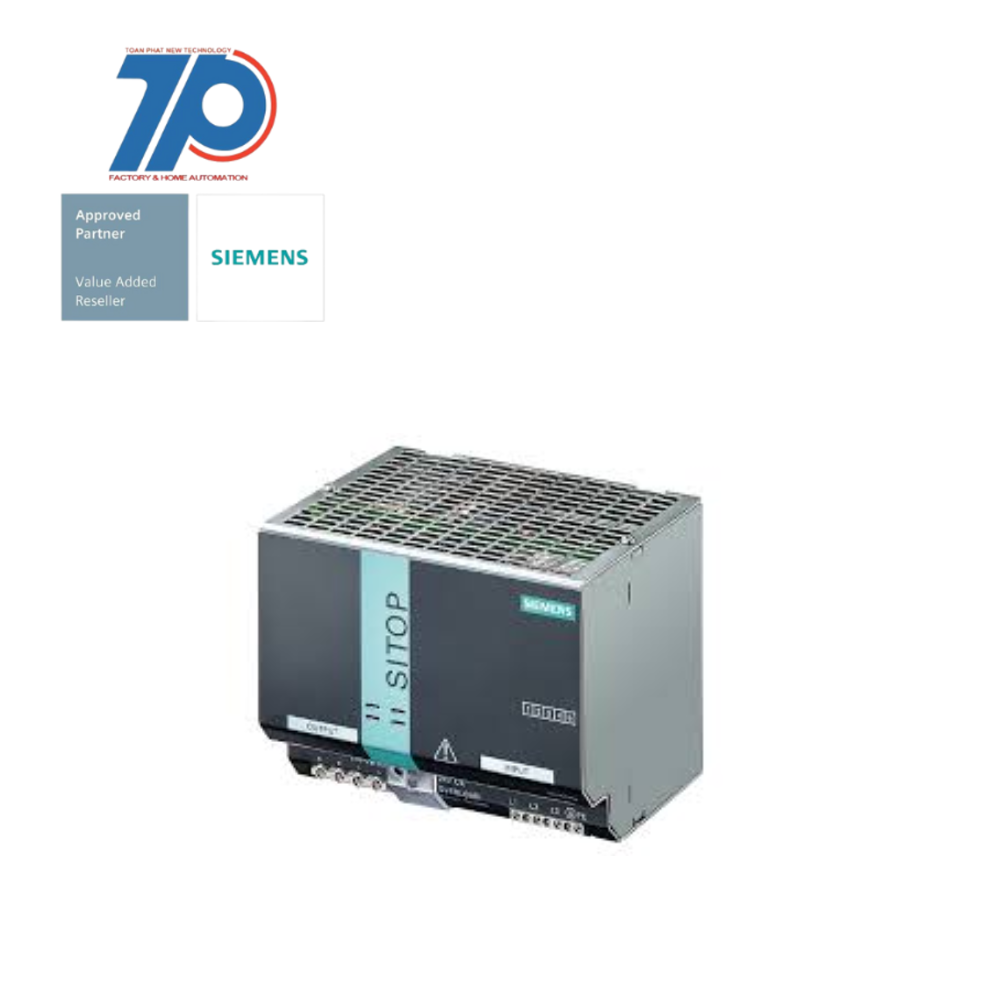

SITOP modular 20 A stabilized power supply

Technical Features:

Product Description:

The SITOP modular single-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex systems and machines. The wide-range input enables connection to any power network in the world and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current or latching disconnection. The very high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.

    • Input: 120/230 V AC
    • Output: 24 V DC/20 A
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Max. output current 120 A
Wall mounting possiblefalse
Nominal value output voltage 124 V
Direct mounting possiblefalse
Height125 mm
Secondary voltage adjustabletrue
Output voltage stabilizedtrue
Rated supply voltage AC 60 Hz120 V
1st secondary output voltage24 V
Stabilizedtrue
Nominal value output current 120 A
Modular versiontrue
Degree of protection (IP)IP20
Short-circuit-prooftrue
Power output480 W
Rail mounting possibletrue
Rated supply voltage AC 50 Hz230 V

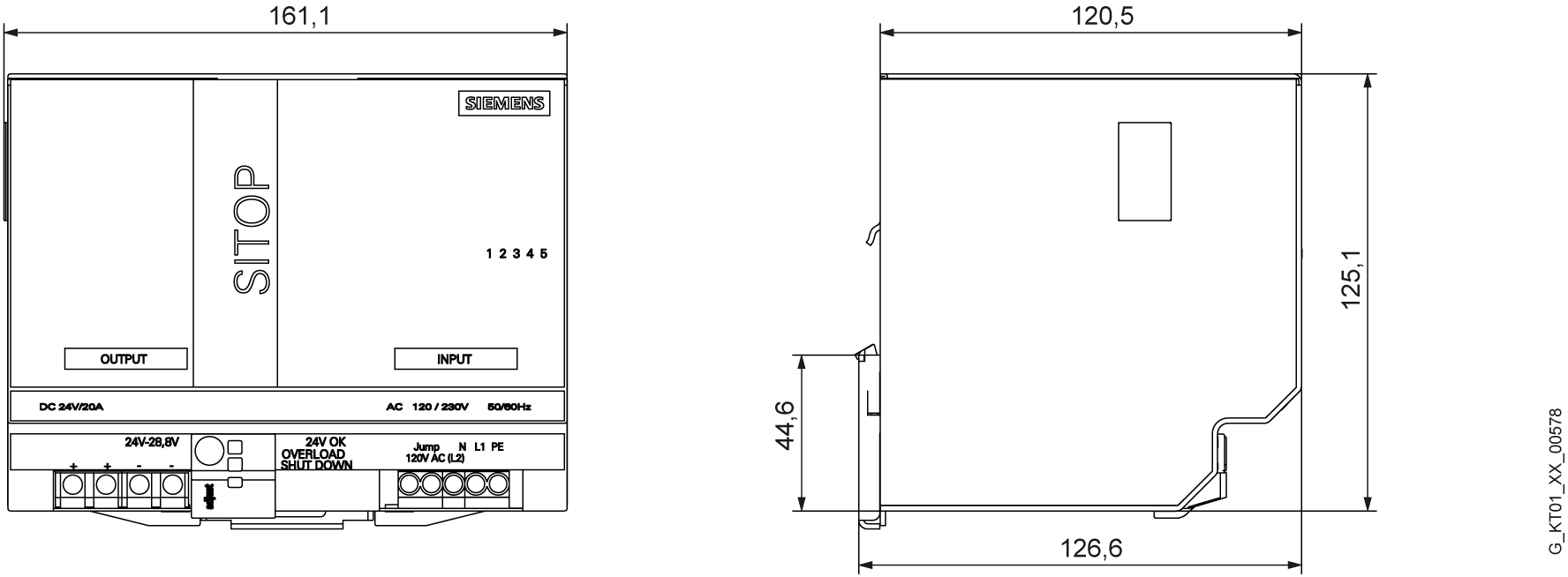

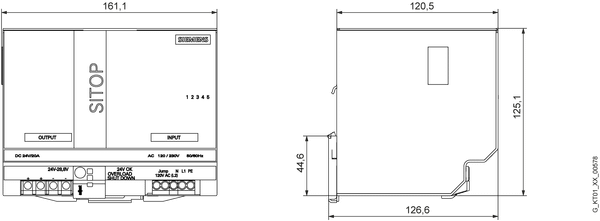

Width160 mm
Built-in height225 mm
Depth125 mm
Voltage type (supply voltage)AC
Built-in width160 mm
