Material ID: 6EP1337-3BA00

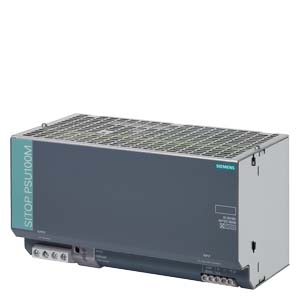

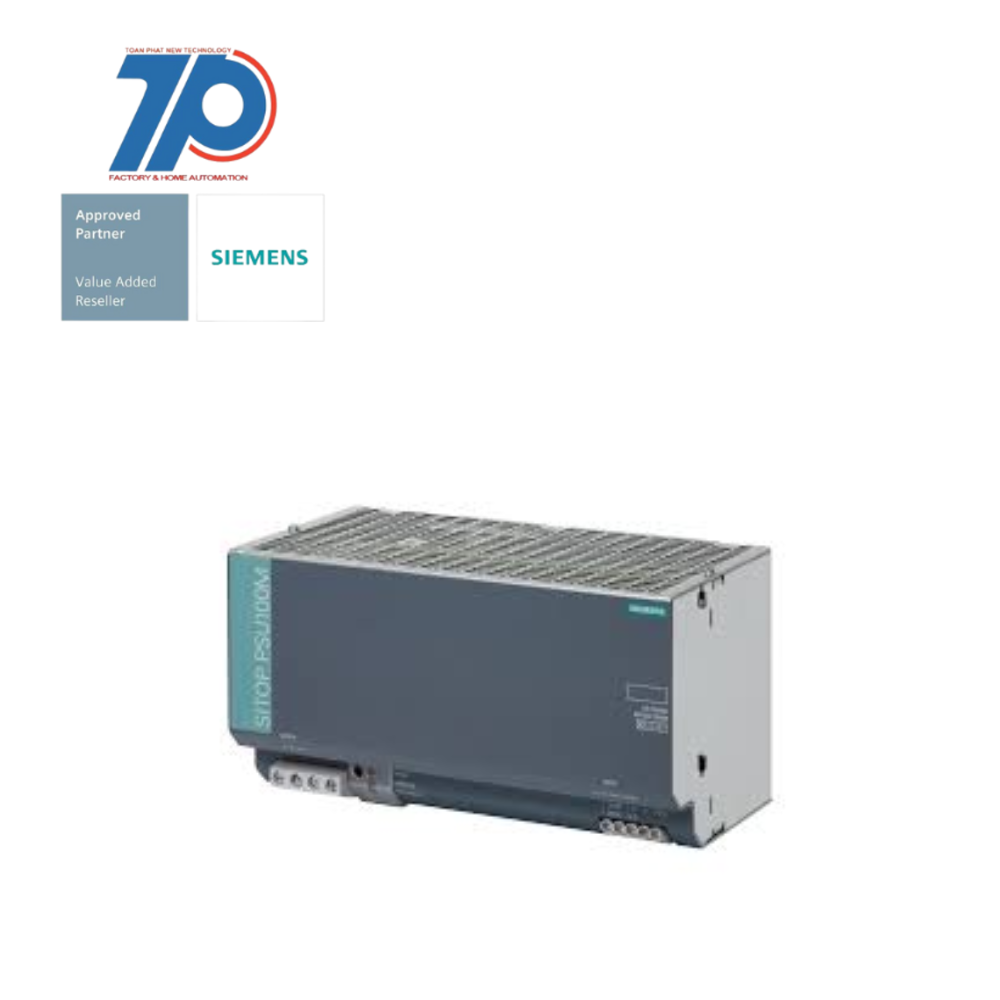

SITOP PSU100M 40 A

Stabilized power supply

Product phase-out!

Successor: 6EP3337-8SB00-0AY0

    • Input: 120/230 V AC
    • Output: 24 V DC/40 A
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Depth125 mm
Built-in width240 mm
Rated supply voltage AC 50 Hz230 V
Rail mounting possibletrue
Width240 mm
Stabilizedtrue
Output voltage stabilizedtrue
Wall mounting possiblefalse
Degree of protection (IP)IP20
Short-circuit-prooftrue
Height125 mm
Secondary voltage adjustabletrue
Nominal value output current 140 A
Built-in height225 mm
Power output960 W
Nominal value output voltage 124 V
Direct mounting possiblefalse
Modular versiontrue
Rated supply voltage AC 60 Hz120 V
Voltage type (supply voltage)AC
Max. output current 140 A
1st secondary output voltage24 V
