Spare Part: SITOP PSU8200 24 V/40 A

Technical Features:

Product Description:

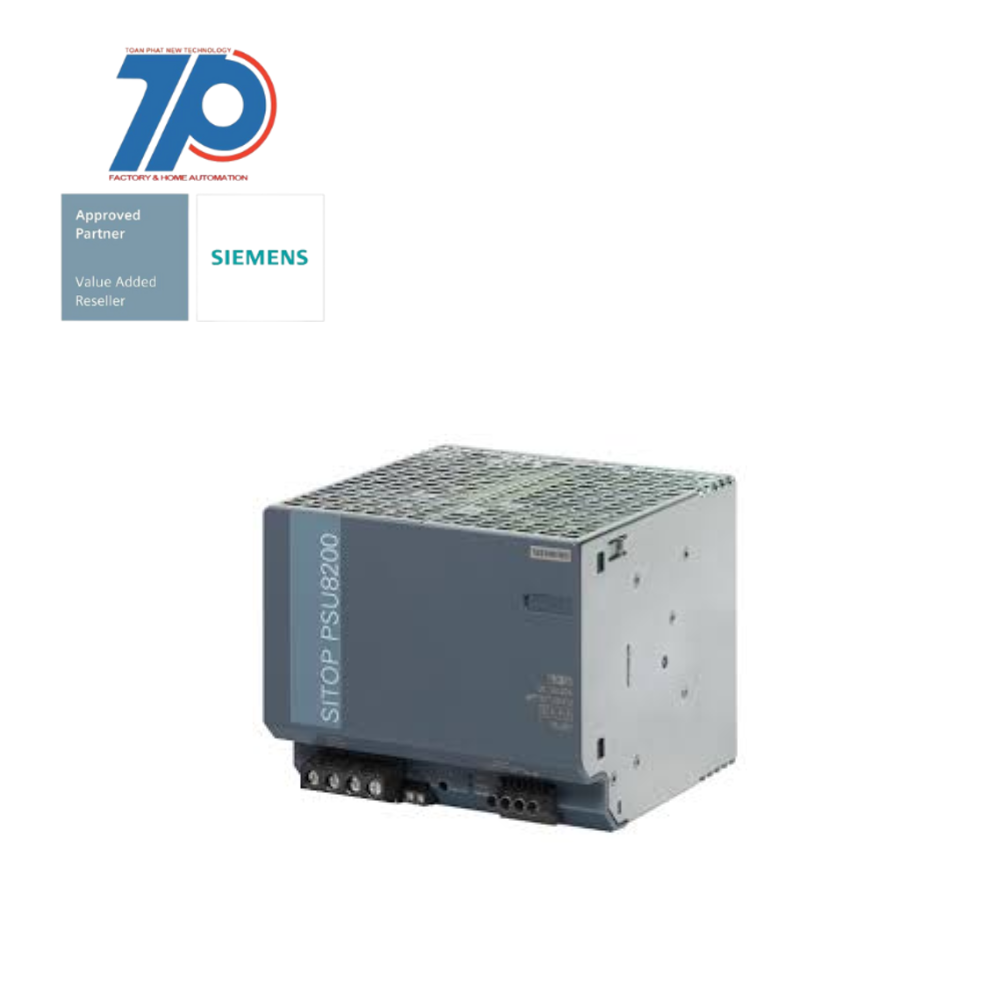

The SITOP PSU8200 24 V/40 A is a stabilized power supply designed for demanding solutions. It is part of the SITOP modular 3-phase power supplies, which provide maximum functionality for use in complex plants and machines.

The input range of the PSU8200 allows for connection to numerous power networks worldwide, ensuring high reliability even in the case of large voltage fluctuations.

The Power Boost function of the PSU8200 can supply up to three times the nominal current over short durations. In case of overload, there is a choice between constant current or latching disconnection.

The high degree of efficiency of the PSU8200 minimizes energy consumption and heat generation in the control cabinet. Its compact metal enclosure also saves space.

To further increase the availability of 24 V power, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy, and selectivity modules.

Siemens offers reliable and efficient power supplies for every plant, regardless of the industry or requirements.

• • Input: 400-500 V 3 AC
  • Output: 24 V DC/40 A
  • Successor: 6EP3437-8SB00-0AY0
