Material ID: 6EP1437-3BA20

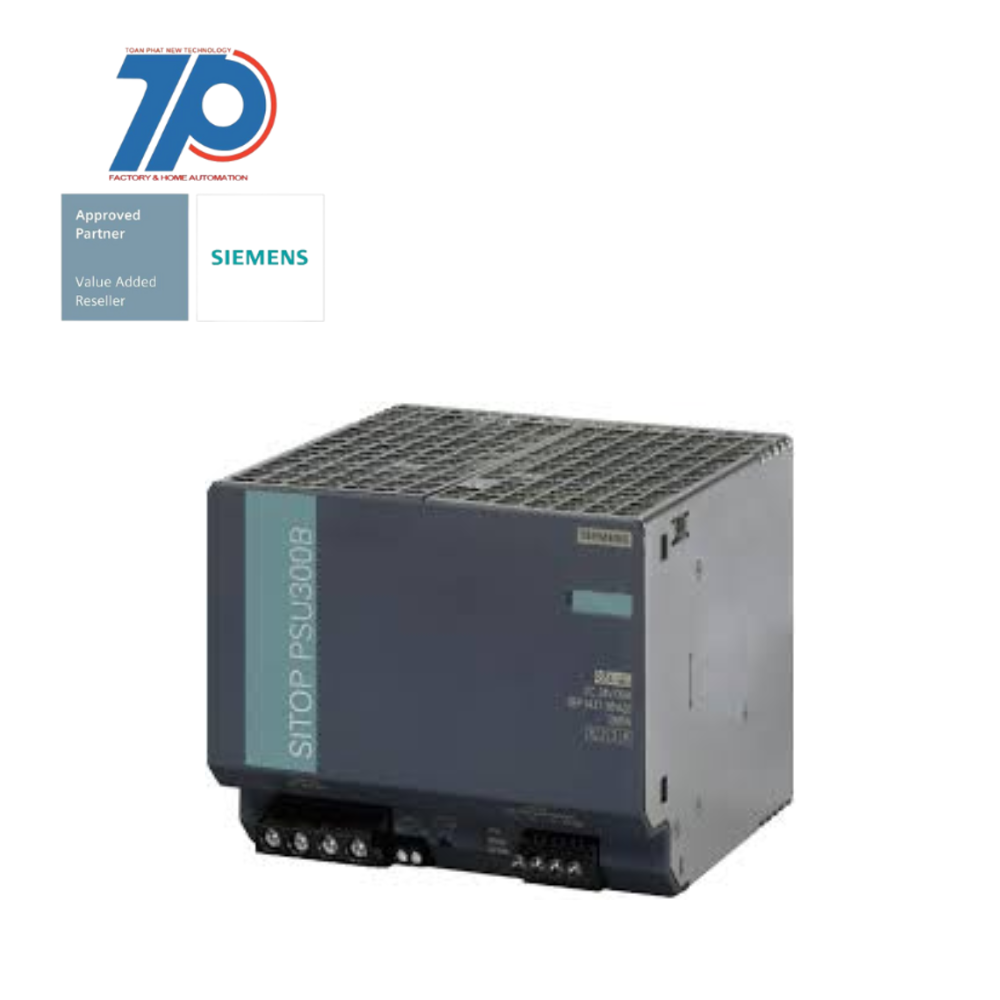

SITOP PSU300B 30 A Stabilized Power Supply
The SITOP PSU300B is a 3-phase power supply designed for various applications. It features a constant current characteristic, making it ideal for battery charging. The output characteristic can also be switched to latching disconnection for other applications.
Key Features:
Commercial Benefits:
Siemens offers reliable and efficient power supplies for every plant, regardless of the industry or requirements.
Successor: 6EP3437-8UB00-0AY0
- Input: 400-500 V 3 AC
- Output: 24 V DC/30 A
- Wide-range input for worldwide use
- Slim design, space-saving on mounting rail
- No installation clearances required
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Secondary voltage adjustable | true |
| Rail mounting possible | true |
| 1st secondary output voltage | 24 V |
| Type of electric connection | Screw connection |
| Wall mounting possible | false |
| Output voltage stabilized | true |
| Max. output current 1 | 30 A |

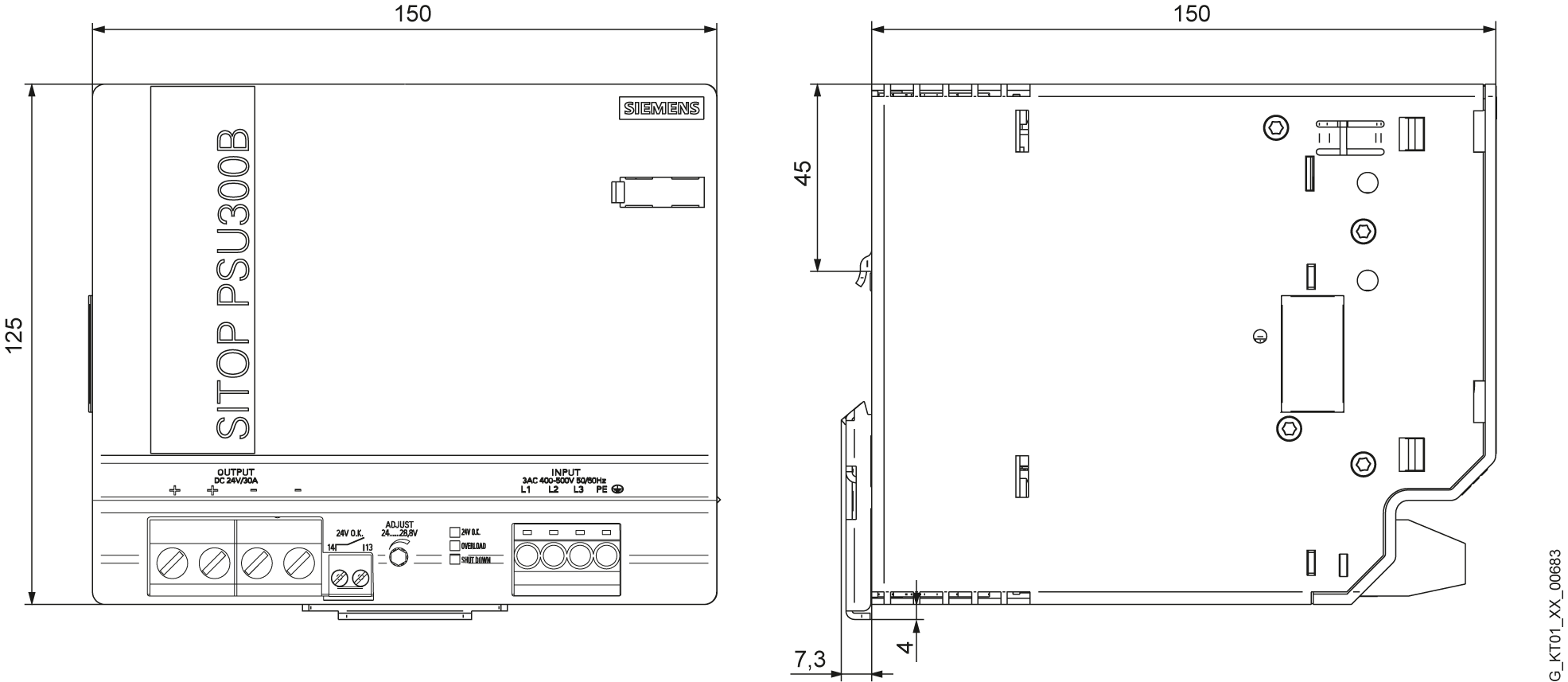

| Depth | 150 mm |
| Built-in width | 150 mm |
| Height | 125 mm |
| Direct mounting possible | false |
| Nominal value output voltage 1 | 24 V |
| Short-circuit-proof | true |
| Width | 150 mm |
| Rated supply voltage AC 60 Hz | 500 V |
| Built-in height | 225 mm |
| Stabilized | true |
| Voltage type (supply voltage) | AC |
| Modular version | true |
| Power output | 960 W |
| Nominal value output current 1 | 30 A |
| Rated supply voltage AC 50 Hz | 400 V |
| Degree of protection (IP) | IP20 |
