Material ID: 6EP4134-3AB00-2AY0

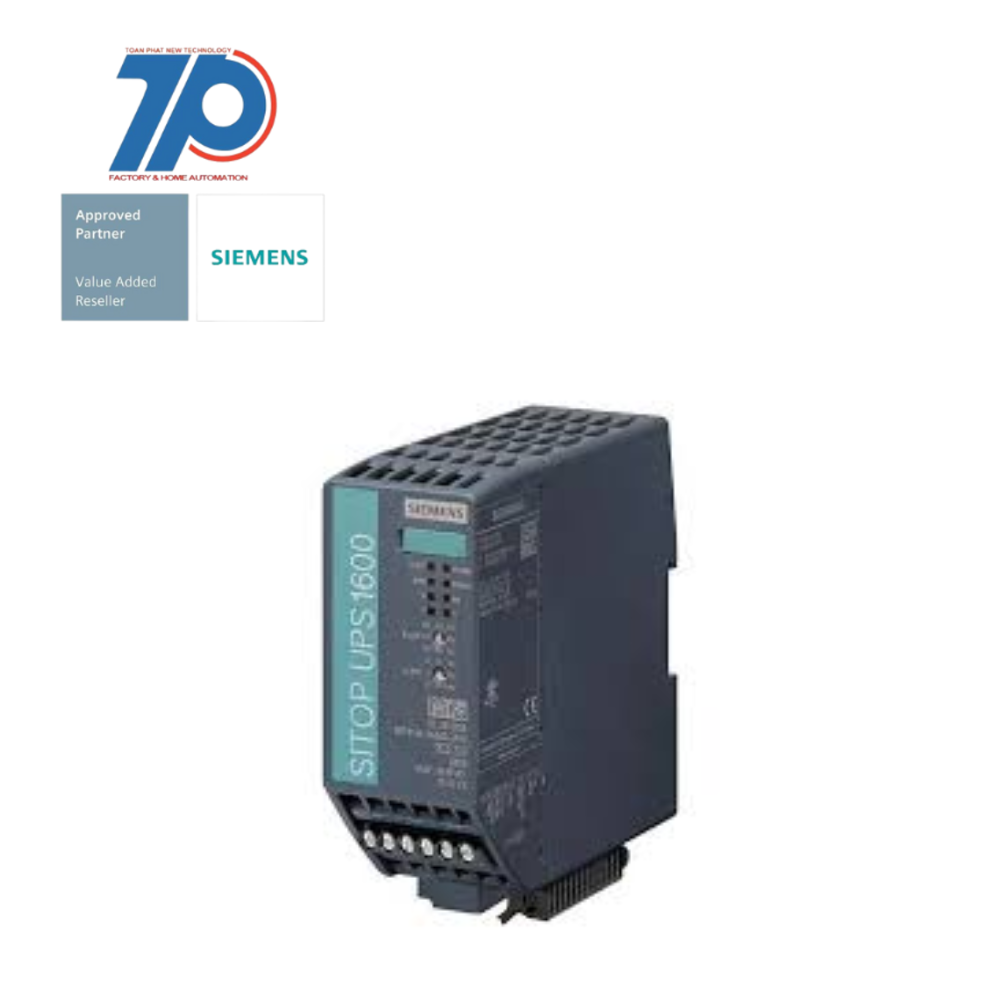

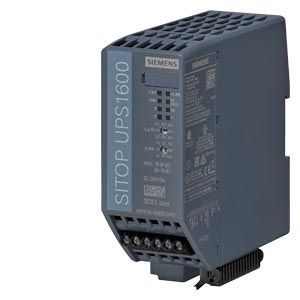

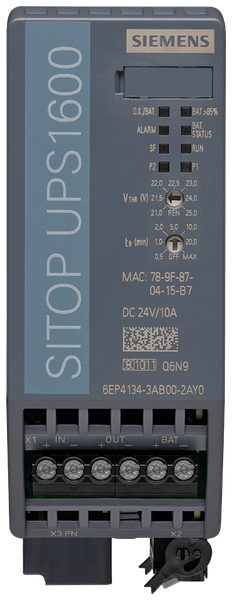

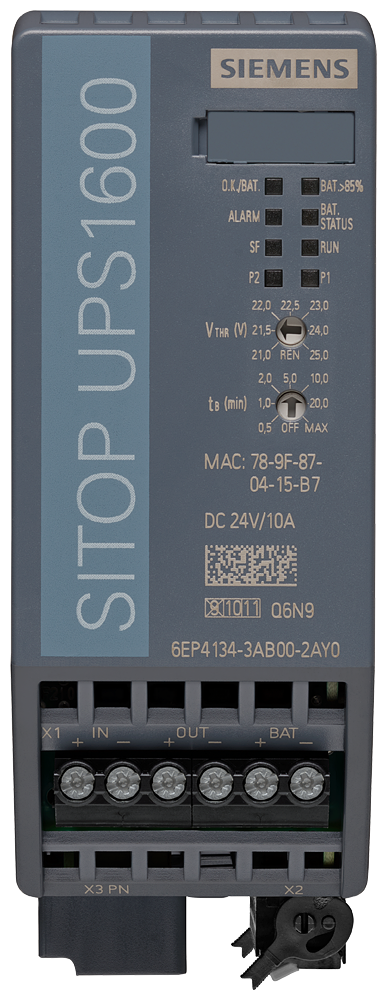

SITOP UPS1600 10 A Ethernet/ PROFINET Uninterruptible Power Supply

The SITOP UPS1600 is a 10 A Ethernet/PROFINET uninterruptible power supply with an Ethernet/PROFINET interface, OPC UA server, and web server.

Technical Features:

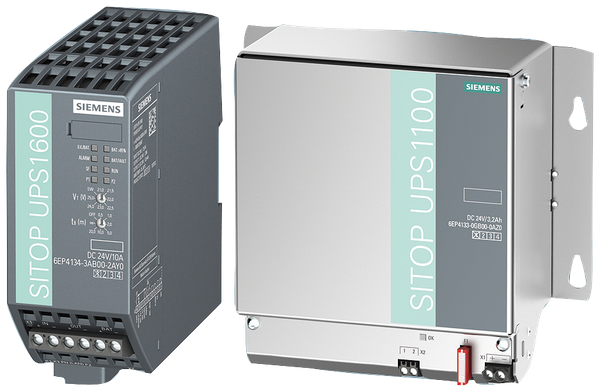

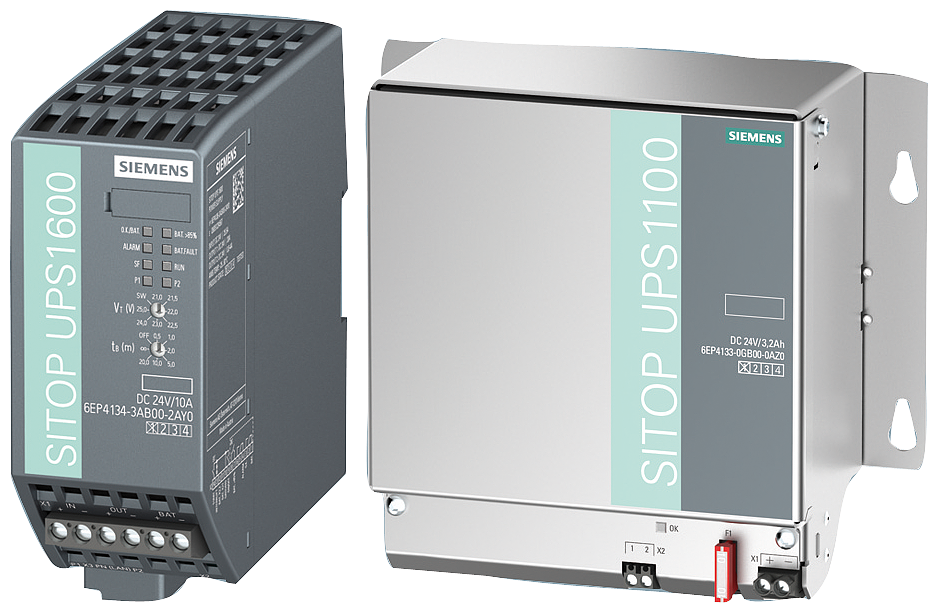

The SITOP UPS1600, when combined with UPS1100 battery modules, is the perfect addition to all 24 V power supplies. It provides buffering for extended power failures, ensuring uninterrupted plant operation for hours.

Key Benefits:

    • Input: 24 V DC
    • Output: 24 V DC/10 A
    • Intelligent battery management system
    • Automatic detection of UPS1100 energy storage device
    • Optimum temperature-controlled charging and continuous monitoring
    • Compact UPS1600 modules for diagnostics and system integration
    • Easy integration into PC or PLC world using two Ethernet/PROFINET ports
    • User-friendly engineering in the TIA Portal
    • Ready-to-use function blocks for S7
    • WinCC faceplates for fast visualization
    • Integrated web server for monitoring and configuration in PC systems
    • Supports shutting down multiple PCs in accordance with the master-slave principle
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
USV- technologyOffline

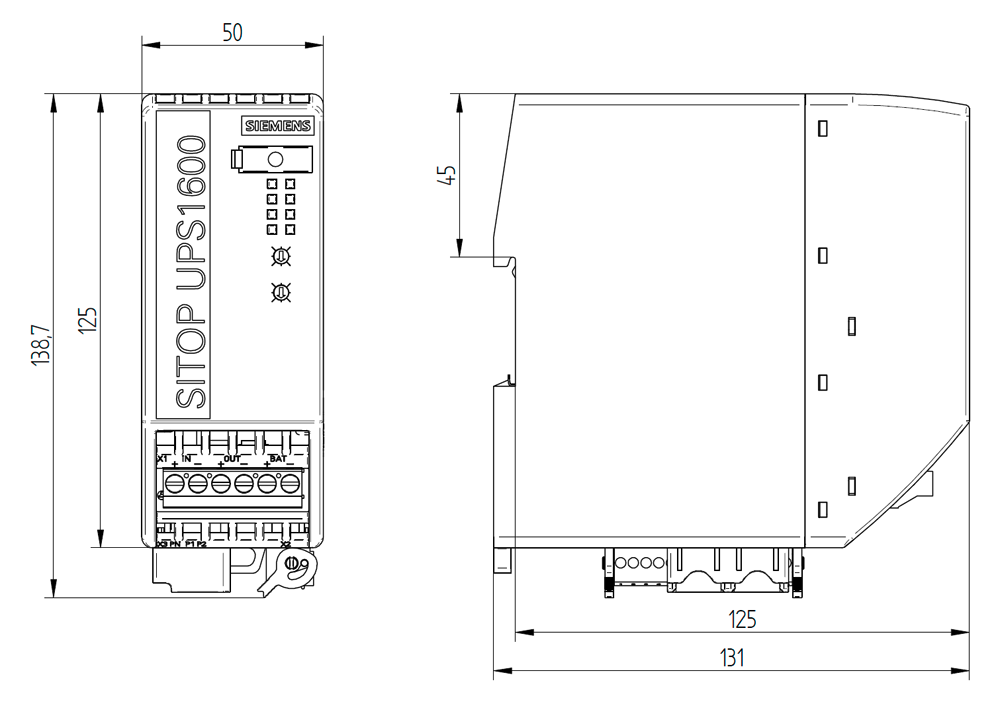

Weight0.44 kg
Height139 mm
Depth125 mm
Suitable for network-managementfalse
Output voltage27 V
Output effective power240 W
Width50 mm
Output voltage18.5 V
Voltage typeDC
